GE JGBP29

Installation Instructions

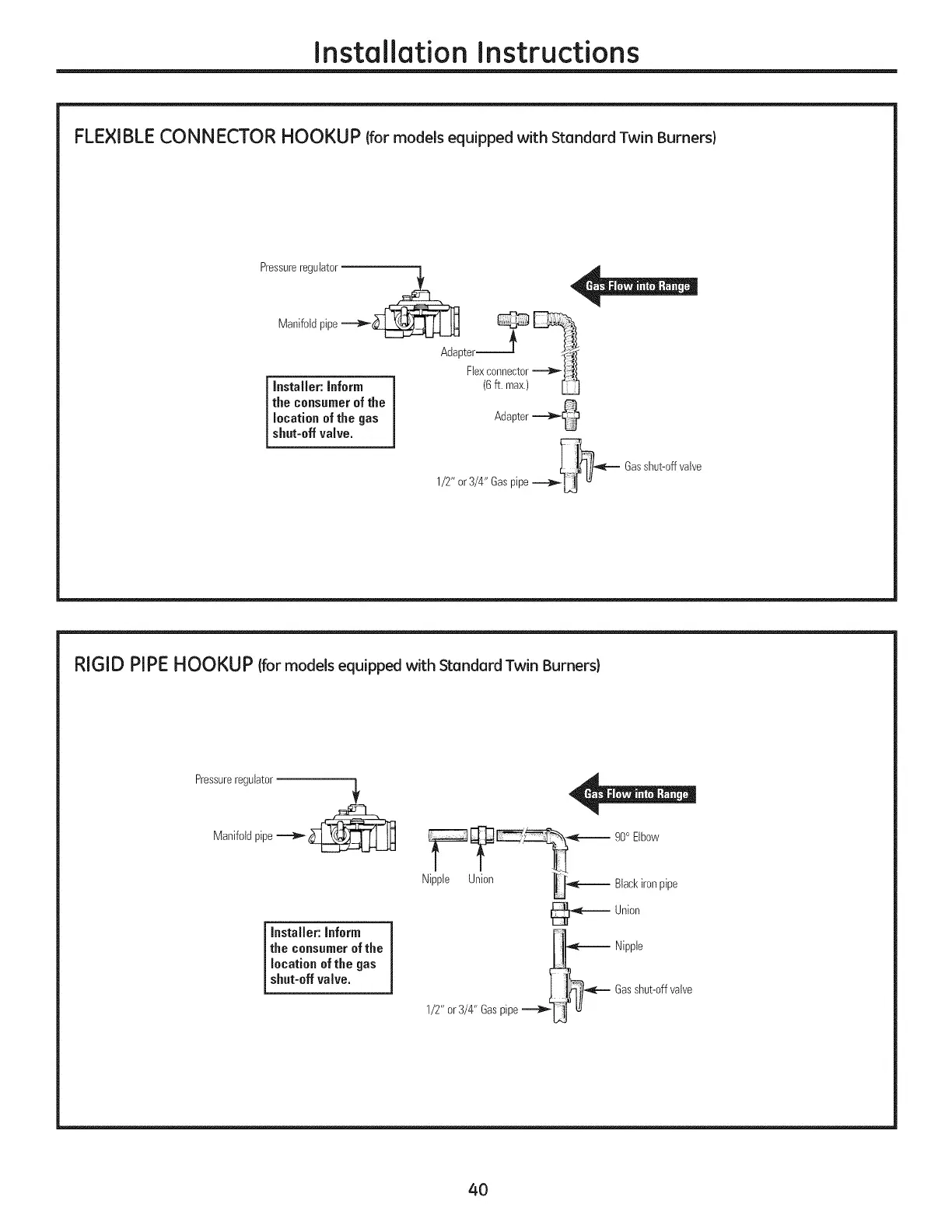

FLEXIBLECONNECTOR HOOKUP (formodels equippedwithStandardTwin Burners}
Pressureregulator --
Manifoldpipe__ @
Adapter "_ _Flexconnector
Installer: Inform (6ft. max.)
the consumer of the
location of the gas Adapter
shut-off valve.
1/2" or3/4" Gaspipe__ Gasshut-offvalve
RIGID PIPE HOOKUP (formodels equipped with Standord Twin Burners}
Pressureregulator
Manifoldpipe__
Installer: Inform
the consumer of the
location of the gas
shut-off valve.
_ 900Elbow
Nipple Union _ Blackironpipe
_ Union
_ Nippte
L_]_ Gasshut-offvatve
1/2"0r3/4" Gaspipe_L_ o
4O
