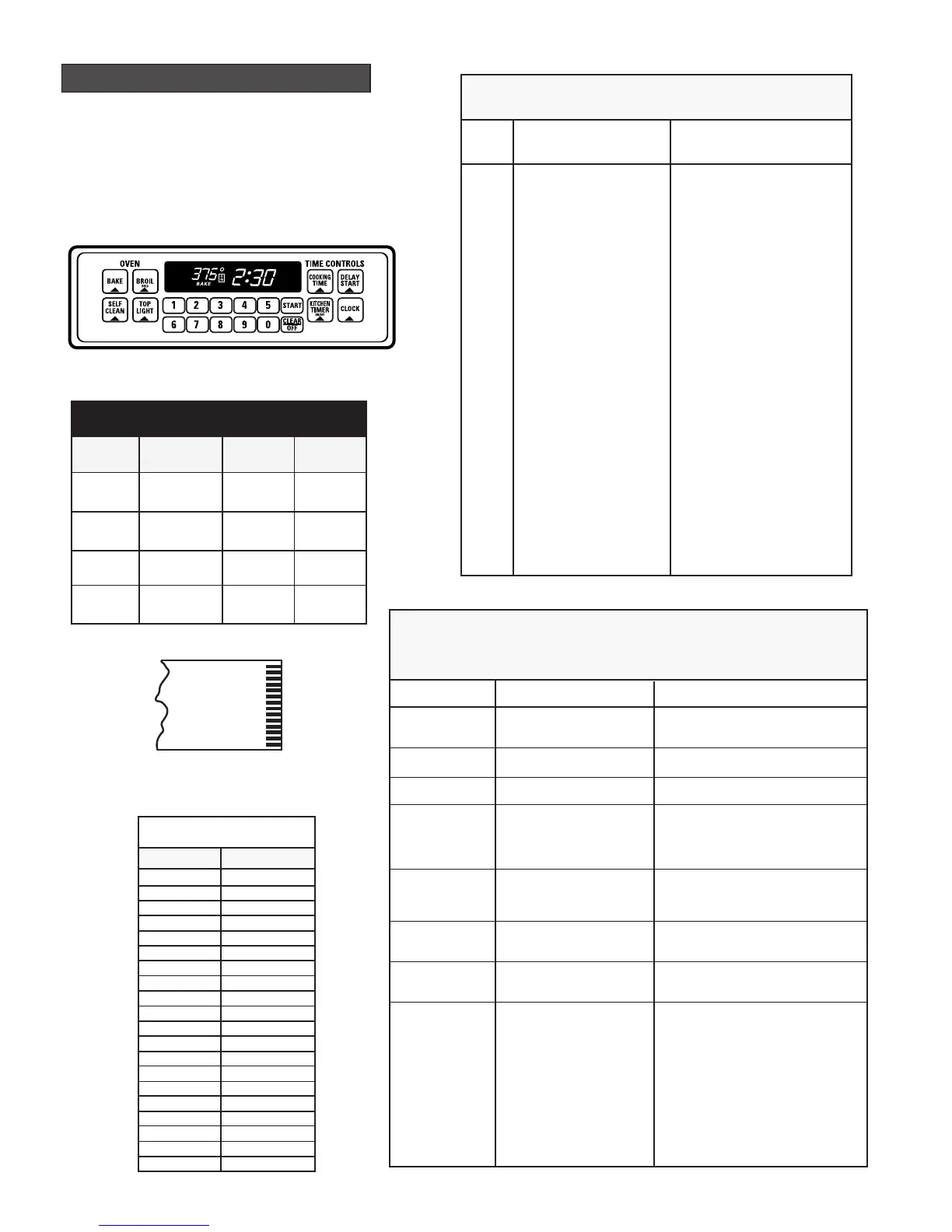

JGBP85BEA DIAGNOSTIC INFO
– 22 –
FUNCTION TEST POINTS
Bake 11 to 13
Broil 10 to 13
Self Clean 8 to 13
Top Light 8 to 12
1 9 to 14
2 8 to 14
3 5 to 13
6 6 to 12
7 7 to 14
8 7 to 12
Cooking Time 10 to 12
Delay Start 11 to 12
Kitchen Timer 9 to 13
Clock 9 to 12
4 5 to 12
5 6 to 13
Start 1 to 2
Clear 3 to 4
9 7 to 13
10 10 to 14
KEY PANEL TESTS
KITCHEN End Of Cycle beep bEEP <–> Con bEEP
TIMER selection of continuous or
non-continuous tones
BROIL Degree switching from °F <–> °C
Centigrade to Fahrenheit
CLOCK Time display mode 12 hr –> 24 hr –> OFF –> 12 hr
12 / 24 / Blank
COOKING Cook & Hold feature to HLd On <–> HLd OFF
TIME maintain food at 170°F when
timed cooking function
ends. Enable / disable
function
SELF CLEAN Child Lockout disables Loc On <–> Loc OFF
heating mode keys and
displays "LOC" when key
depressed
DELAY START 12 hr Shut Down Override 12 Shdn <–> no Shdn
enables / disables 12 hour
safety shutdown feature
BAKE User Temperature Offset
for oven temperature
calibration
CLOCK and Sales Mode Display will scroll the following:
KITCHEN Display off
TIMER BAKE icon on
Temp digits 350
On icon and BAKE icon on
Pause 2 seconds
Display off
BROIL icon on
Temp digits on LO
ON icon & broil element icon on
Pause 2 seconds
Temp digit on HI and broil element icon
Pause 2 seconds
ERC III SPECIAL FUNCTIONS (SF) MODE
Enter Special Functions mode by holding BAKE and BROIL pads
for 2 seconds, until "SF" shows in display
1
14
NOTE: Resistance values may vary from 20
to 90 ohms. An "OPEN" circuit would indicate
a defect in the touch pad.
KEY PANEL
RIBBON
Failure Meaning Suspect / Check
Code
FFF Control error, failed ERC
EEPROM
F0 Shorted CLEAR/OFF key Membrane switch
ERC
F7 Any shorted membrane Membrane switch
key other than CLEAR/ ERC
OFF
F2 Control senses oven High resistance connection in
During temp. above 615 deg. sensor circuit
BAKE F. ERC (welded bake relay con-
tacts)
F2 Control senses oven High resistance connection in
During temp. above 915 deg. sensor circuit
CLEAN F. ERC (welded clean relay con-
tacts)
Both Lock switch 1 & 2 closed
at the same time
F3 Open sensor; sensor re- Sensor / sensor circuit con-
sistance exceeds 2900 nections
ohms during bake broil
or clean
F4 Shorted sensor; sensor Sensor / sensor circuit con-
resistance is less than nections
2900 ohms during bake
broil or clean
FF Door motor safety circuit ERC
FAILURE CODES - "F" CODES
ERC III WITH TRUE TEMP™ AND SMARTLOGIC™
TrueTemp
Bake BA to N 120 VAC 0 VAC
in Bake in Off
Broil BR to N 120 VAC 0 VAC
in Broil in Off
Door Door Motor 120 VAC 0 VAC
Motor to N in Off
Surface SL to N 120 VAC 0 VAC
Light
Relay /
Mode
Terminals
Voltage
in Mode
ERC RELAY CONTACT OPERATION TEST
Voltage
in Off
KEY PAD
CONTROLS:
ERC DISPLAY WILL SHOW:
IMPORTANT NOTE: While the information listed on
this page is specific to one model, it reflects the type
of information available on most mini-manuals
enclosed with each product. Always consult the
mini-manual for model specific information.
