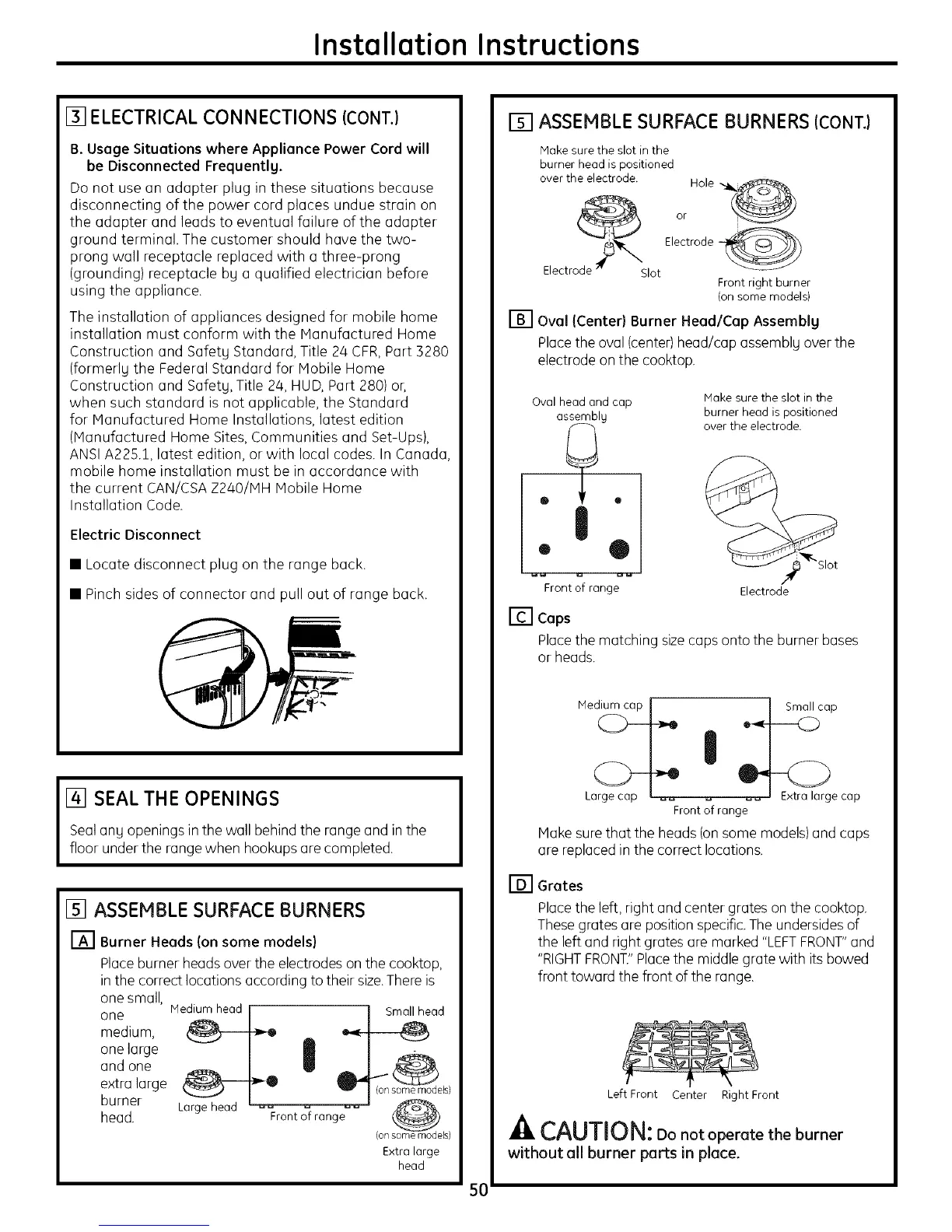

Installation Instructions
[] ELECTRICAL CONNECTIONS (CONT.)
B. Usage Situations where Appliance Power Cord will
be Disconnected Frequentlg.
Do not use an adapter plug in these situations because
disconnecting of the power cord places undue strain on
the adapter and leads to eventual failure of the adapter
ground terminal. The customer should have the two-
prong wall receptacle replaced with a three-prong
(grounding) receptacle by a qualified electrician before
using the appliance.
The installation of appliances designed for mobile home
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR,Part 3280
(formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD, Part 280) or,
when such standard is not applicable, the Standard
for Manufactured Home Installations, latest edition
(Manufactured Home Sites, Communities and Set-Ups),
ANSI A225.1, latest edition, or with local codes. In Canada,
mobile home installation must be in accordance with
the current CAN/CSAZ240/MH Mobile Home
Installation Code.
Electric Disconnect
• Locate disconnect plug on the range back.
• Pinch sides of connector and pull out of range back.
[] SEAL THE OPENINGS
Sealany openings in the wall behind the range and in the
floor under the range when hookups are completed.
[] ASSEMBLE SURFACE BURNERS
[] Burner Heads (on some models}
Placeburner heads over the electrodes on the cooktop,
in the correct locations according to their size.Thereis
one small,
one M ed_head I I Srnall_head
medium, _
one large -- I I
and one ___ I / _t_---P-_
,ourner Large head _ -1 _J
neaa. Front or range
ions_meTnodebs)
Extra large
head
5O
[] ASSEMBLE SURFACE BURNERS ICONTJ
[]
Make sure the slot in the
burner head is positioned
over the electrode. Hole -.j_
_ or
Electrode _1_ Slot Electrode
Front right burner
{on some models)
Oval (Center} Burner Head/Cup Assemblg
Place the oval (center) head/cap assembly over the
electrode on the cooktop.
Oval head and cap
assembly
Make sure the slot in the
burner head is positioned
over the electrode.
Front of range
Electrode
[] Caps
Placethe matching sizecaps onto the burner bases
or heads.
& P cap
Front of range
Make surethat the heads (on some models)and caps
are replaced in the correct locations.
[] Grates
Placethe left, right and center grates on the cooktop.
Thesegrates are position specific.Theundersides of
the left and right grates are marked "LEFTFRONT"and
"RIGHTFRONT."Placethe middle grate with its bowed
front toward the front of the range.
Left Front Center Right Front
CAUTION: Do not operate the burner
without all burner parts in place.
