Installation Instructions
Standard Installation
If the construction of your cabinet cannot
provide a 1/4” flat area at the back of the
countertop opening, consider changing the
countertop to accommodate this dimension.
See Alternate Construction section. If the area
is not flat, excess tension may be applied to
the glass cooktop, causing breakage and
voiding the warranty.
Center the 30” wide opening over the
adjacent cabinets and mark with a
straight edge.
Using a straight edge, mark the back line
at 23-3/16” from the front edge of the
counter.
Be careful not to damage the adjacent
cabinets while cutting the countertop.
Use a hand or saber saw to make
straight smooth cuts.
Remove countertop raised edge, if
incorporated. (See illustration on page 5)

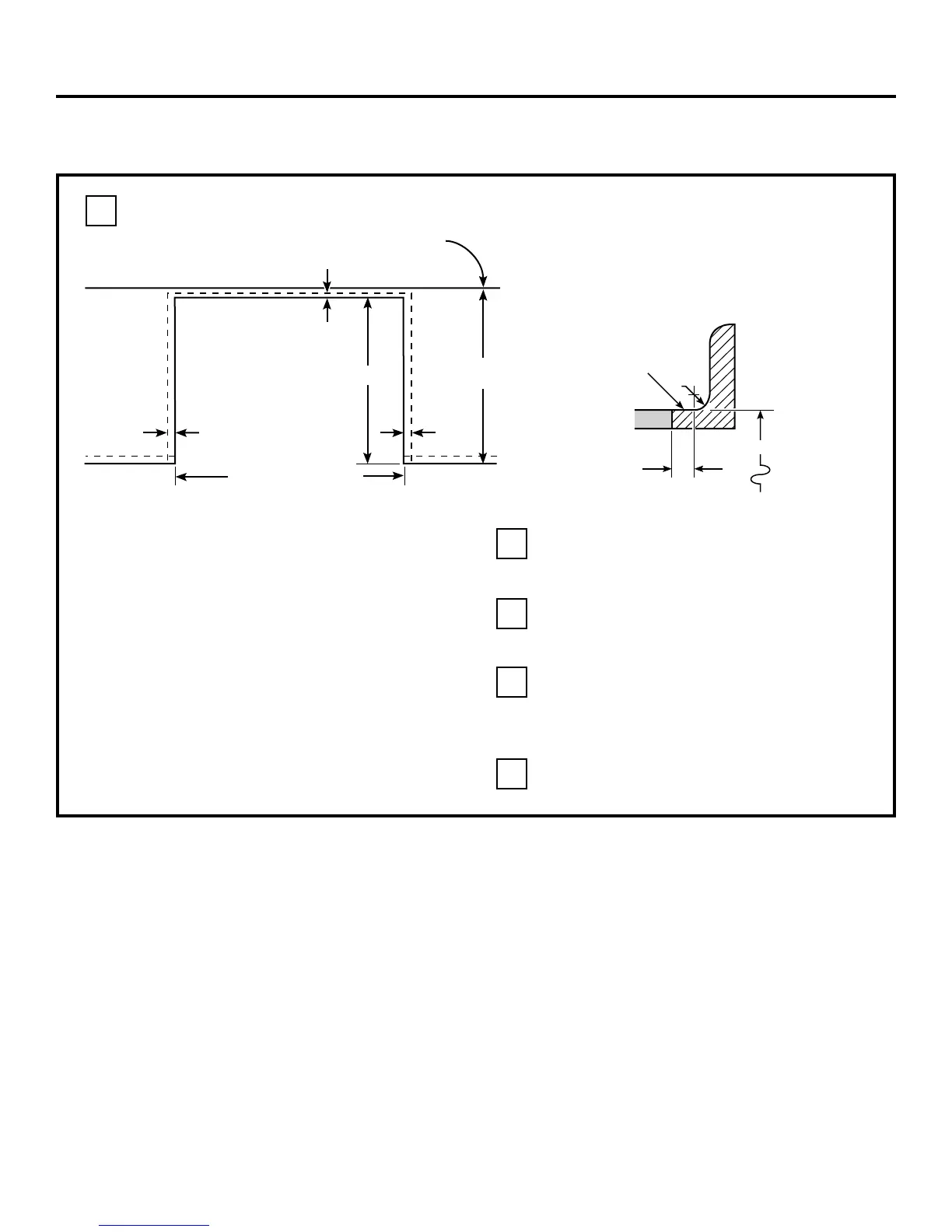

STANDARD INSTALLATION
Wall
1/4” Min.
Flat
23-3/16”
9/16” Min.
Flat
9/16” Min.
Flat
29-15/16”– 30-1/16”
Smooth Cut
25”
Typically
1/4”
R
Flat
Area
36”
2
A
B
C
D
To Next Page
