33

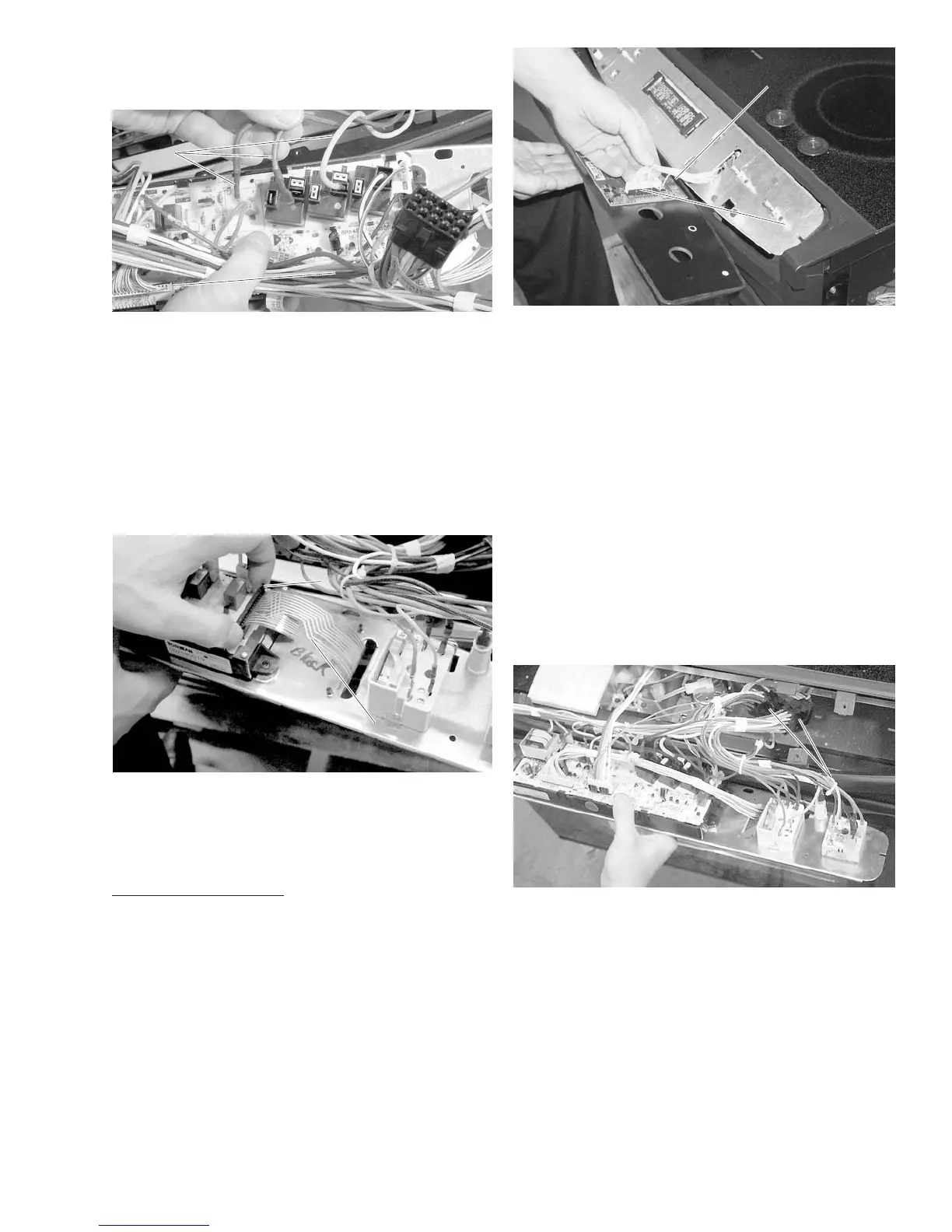

4. Disconnect the wiring harnesses at the main
connectors.
GEA01081
Wiring Harness
Connectors
Wiring Harness
Connectors
Harness
Connector
Harness
Connector
5. Note the placement of the remaining wires and
harness connectors on the circuit board,
disconnect and remove the control panel.
6. To remove the touch pad, disconnect the
ribbon from the circuit board by squeezing the
locking tabs on the sides of the ribbon
connection and pulling the ribbon lock up.
GEA01082
Ribbon
Lock
Ribbon
Lock
Ribbon
Ribbon
7. Remove the 4 screws that secure the touch
pad and remove the pad.
Models JS966, JD966
1. Remove the four (4) knobs and the retainer
nuts under the knobs.
GEA01083
Touch BoardTouch Board
Harness
Connector
Harness
Connector
Caution: Lift the panel faceplate enough to
access the wire harness connected to the touch
board.
2. Remove the harness connector from the touch
board by pulling on the connector (do not pull
on the wiring). Remove the faceplate and
place face down on a protected surface.
3. Remove the 4 screws that secure the control
panel.
Note: The control panel can now be tilted down
into service position allowing access to the
electrical components.
GEA01084
Wiring Harness
Connectors
Wiring Harness
Connectors
4. Disconnect the wiring harnesses at the main
connectors.
5. Note the placement of the remaining wires and
harness connectors on the circuit board,
disconnect and remove the control panel.
To Next Page
