Installation Instructions

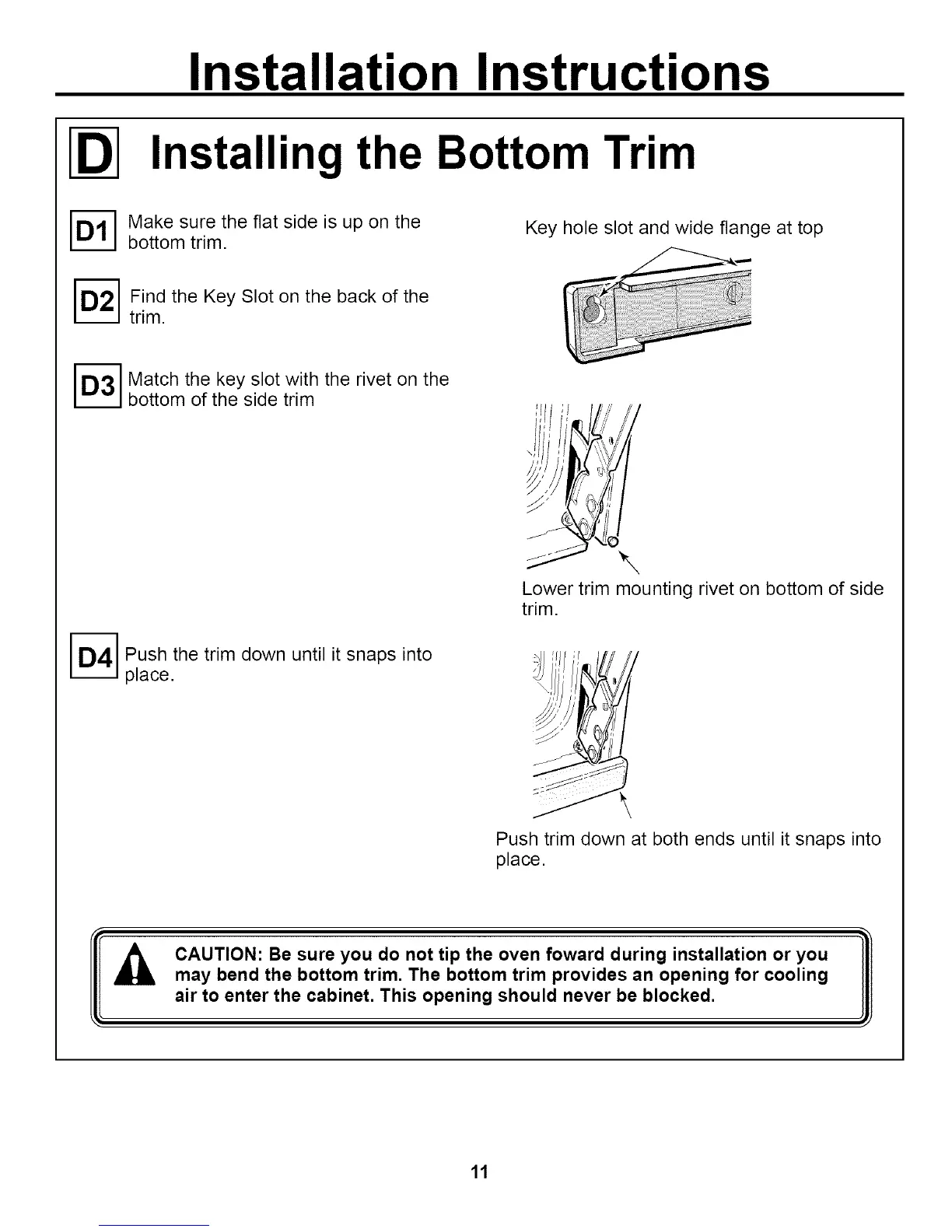

I-D-1Installing the Bottom Trim
-_ ake sure the flat side is up on the
bottom trim.
-_ ind the Key Slot on the back of the
trim.
--_ atch the key slot with the rivet on the
bottom of the side trim
Key hole slot and wide flange at top
--_ Push the trim down until it into
snaps
place.
\
Lower trim mounting rivet on bottom of side
trim.
Push trim down at both ends until it snaps into
place.
[_ AUTION: Be sure you do not tip the oven foward during installation or you [1[
may bend the bottom trim. The bottom trim provides an opening for cooling
air to enter the cabinet. This opening should never be blocked.
11
