www.GEAppliance_com

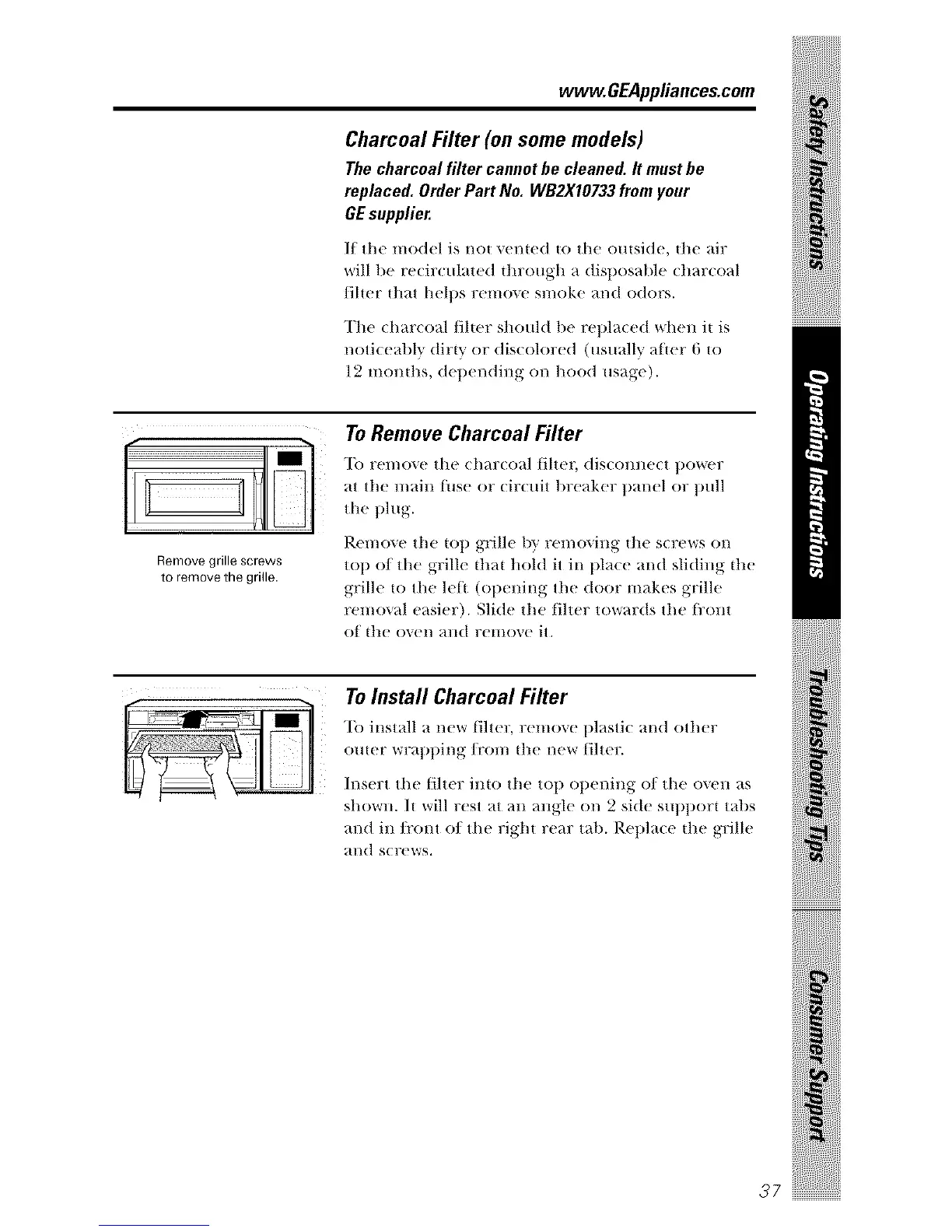

Charcoal Filter (on some models)
The charcoal filter cannot be cleaned. It must be
replaced. Order Part No. WB2X10733 from your
GE supplier.
If the model is not vented to the outside, the air
will be recirculated through _1disl)os_lble ch_u:coM
/]lter fllat helps remo_e smoke and odors.
The charcoal/]her should be replaced when it is
noticeably dirty or discolored (usually atter 6 to
12 momhs, depending on hood usage).
!iiiilIii!i!ll
Remove grille screws
to remove the grille.
ToRemove Charcoal Filter
To remove the (h_uxoal {ilte_; (liscomle(t t)ower
at the main fuse or circuit breaker panel or pull
the t_lug.
Remove the top grille by removing the screws on
top of the grille that hold it in place and sliding the
grille to the lett (opening the door makes grille
removal easier}. Slide the tiher towards the tkont
of the oven alld relilove it.
ToInstall Charcoal Filter
To install a new t_lter, remo_e 1)lasd( and other
olNer wr_tl)l)il/g/i'ol// the _'_r tiher.
Insert the Jilter into the to 1) opening of the oven as
shown. It will rest at an angle on 2 side support tabs
and in/font of the right rear tab. Replace tlle grille
_tl/(/ screws.
il!i ii !iiii!lli iiii iiiiYl!
37
