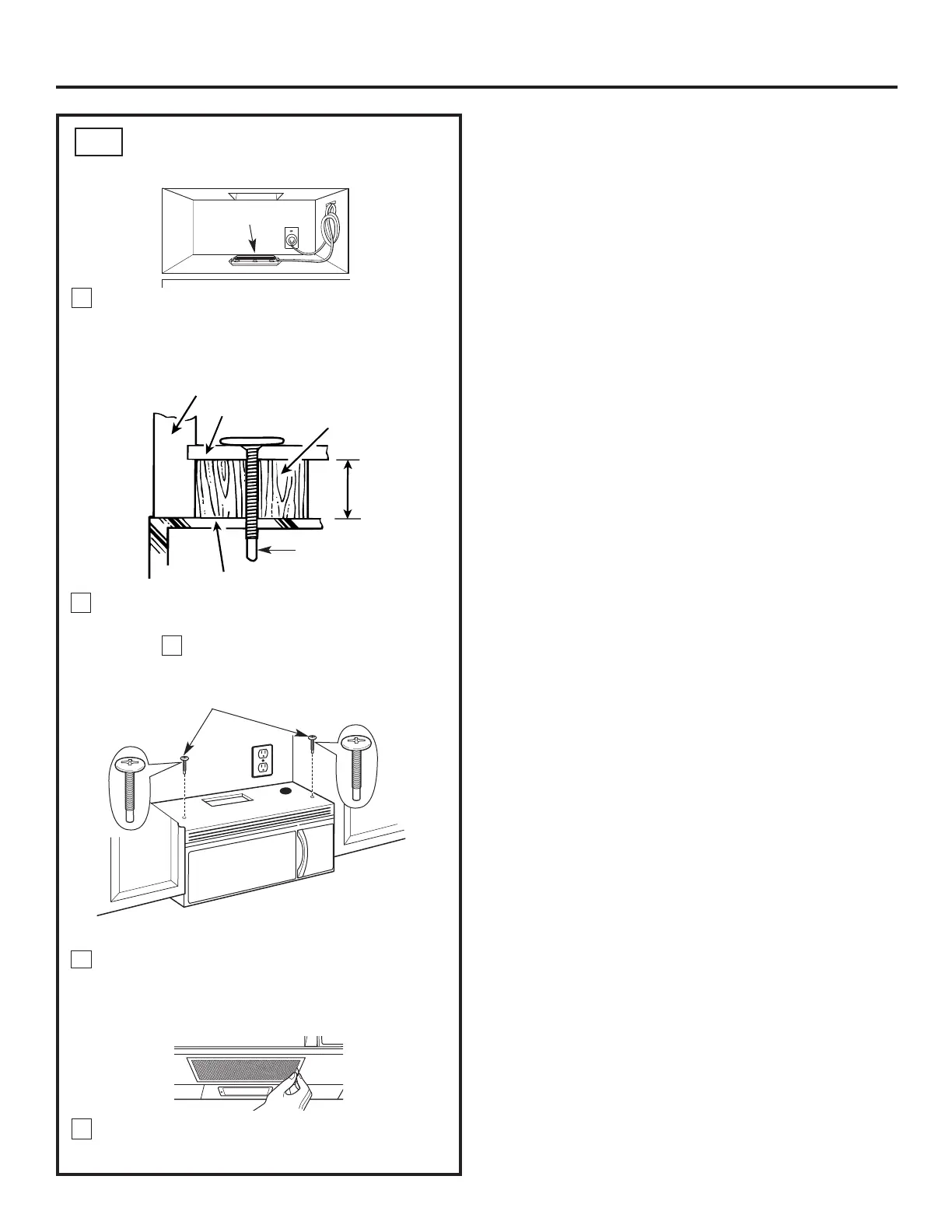

Installation Instructions
5
Attach the microwave oven to the top cabinet.
8
7
Cabinet Bottom Shelf
Tighten the two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall
and the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns
on each screw.
Install grease filter. See the Owner’s Manual
packed with the microwave oven.
Self-Aligning Screw
6
MOUNT THE MICROWAVE OVEN
(cont.)
A4
Damper
Use the power supply cord clamp to bundle the
power supply cord. Install the power supply cord
clamp, using a screw as shown, to the inside of
the cabinet.
4
Cabinet Front
To Next Page
