GE JVM3160DFCC - Mounting Space

8
Installation Instructions
MOUNTING SPACE
NOTES:
 The space between the cabinets must be 30s wide
and free of obstructions.
 If the space between the cabinets is greater than
30s, a Filler Panel Kit may be used to fill in the gap
between the microwave oven and the cabinets.
Your Owner’s Manual contains the kit number for
your model.
 This microwave oven is for installation over ranges
up to 36s wide.
 If you are going to vent your microwave oven to the
outside, see Hood Exhaust Section for exhaust duct
preparation.
 When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for power
cord clearance.
0D[LPXPFDELQHWGHSWKDERYHDQGEHVLGHWKHXQLW
is 12¾s.
)RUPRGHOVVHWXSLQ5HFLUF([KDXVW'RQRWDOORZ
cabinetry or other objects to block the airflow of the
vent.
7KHSURGXFWVKRXOGQRWEHLQVWDOOHGRYHUDQ\FRRNWRS
or range with a combined BTU greater than 60,000
BTU.

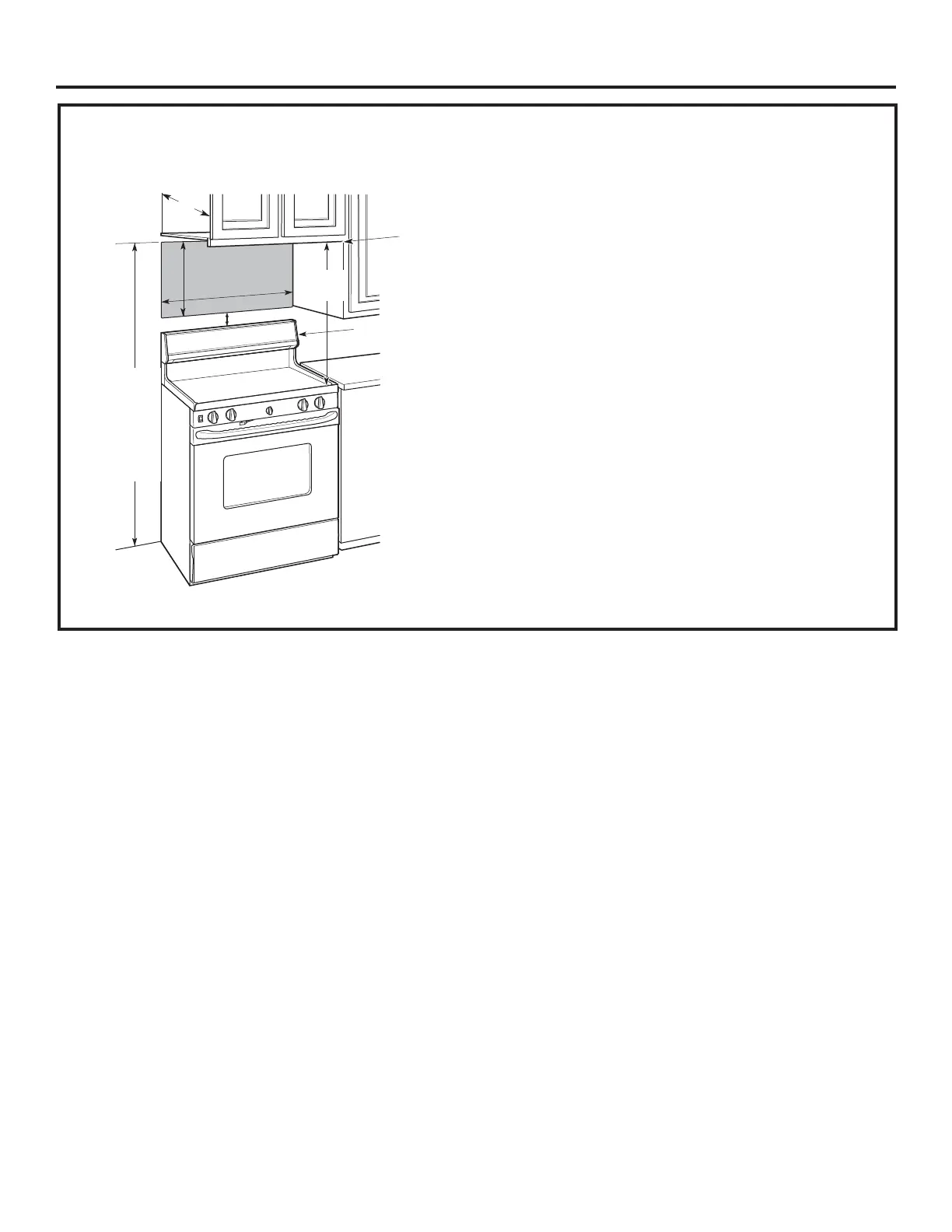

Backsplash
66s or
more from
the floor
to the
top of the
microwave
oven
30s
2s
30s
min.
16-½s
Bottom edge of
cabinet needs to
be 30s or more
from the cooking
surface
12¾s
max.
