GE JVM3162 Installation Instructions

Place the blower unit back into the opening.
Roll the blower unit 90° so that fan blade
openings are facing out the back of the
oven.
4
BEFORE: Fan Blade
Openings Facing Up
AFTER: Fan
Blade Openings
Facing Back
2
1

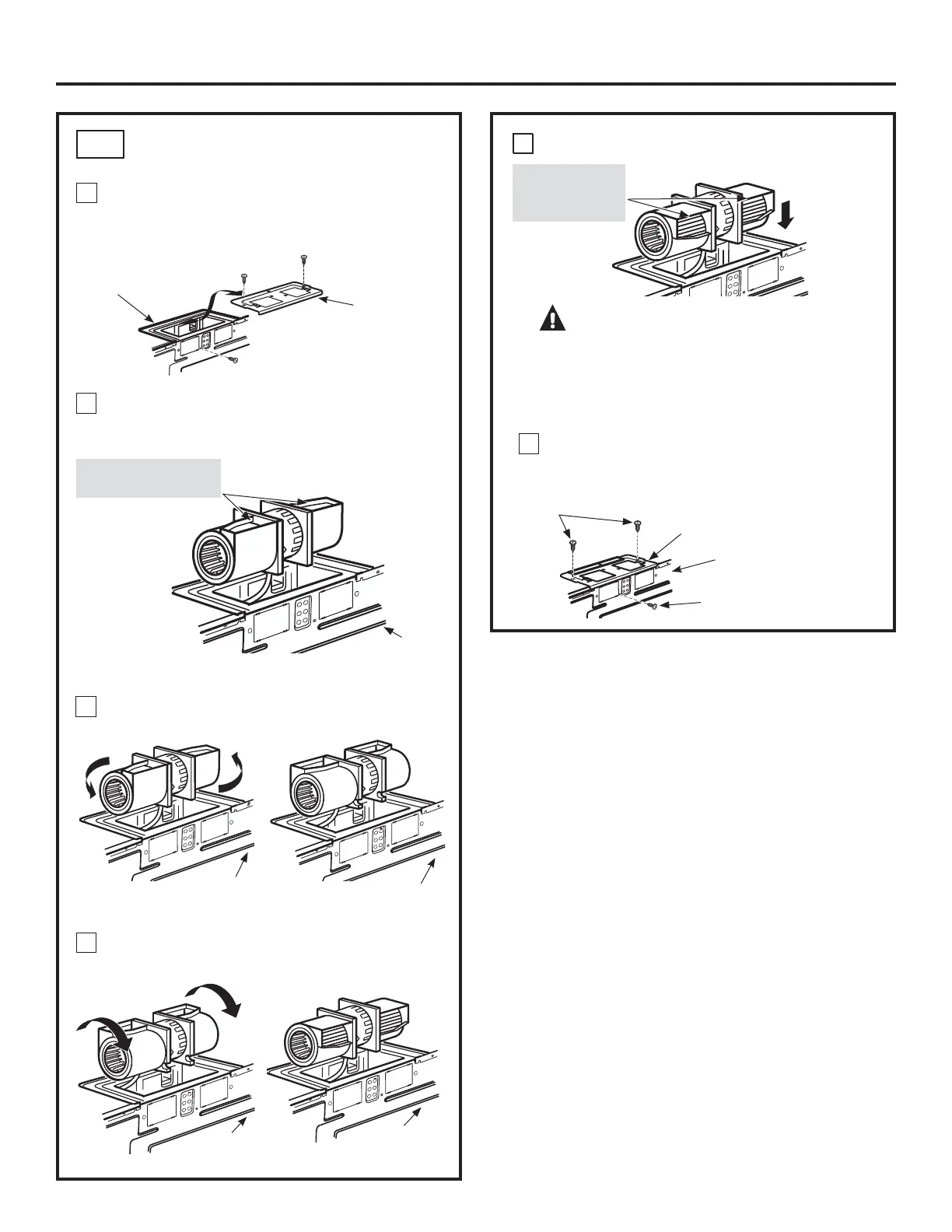

Remove the two screws that hold the blower plate
and remove the screw holding the blower motor to
the oven. Slide blower plate from under its retaining
flange.
ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
B5.
17
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Blower Plate
Blower Plate
Replace the blower plate in the same position
as before and replace the screws for the
blower plate and blower motor.
Before Rolling
After Rolling
Back of
Oven
Back of
Oven
Back of
Oven
CAUTION: Do not pull or stretch
the blower unit wiring. Make sure the
wires are not pinched.
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of oven.
Installation Instructions
Retaining
Flange
Blower Plate Screws
Back of
Oven
3
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Back of
Oven
Back of
Oven
5
6
Blower Motor Screw
