CONNECT DUCTWORK TO
HOOD
(Ducted installations only)

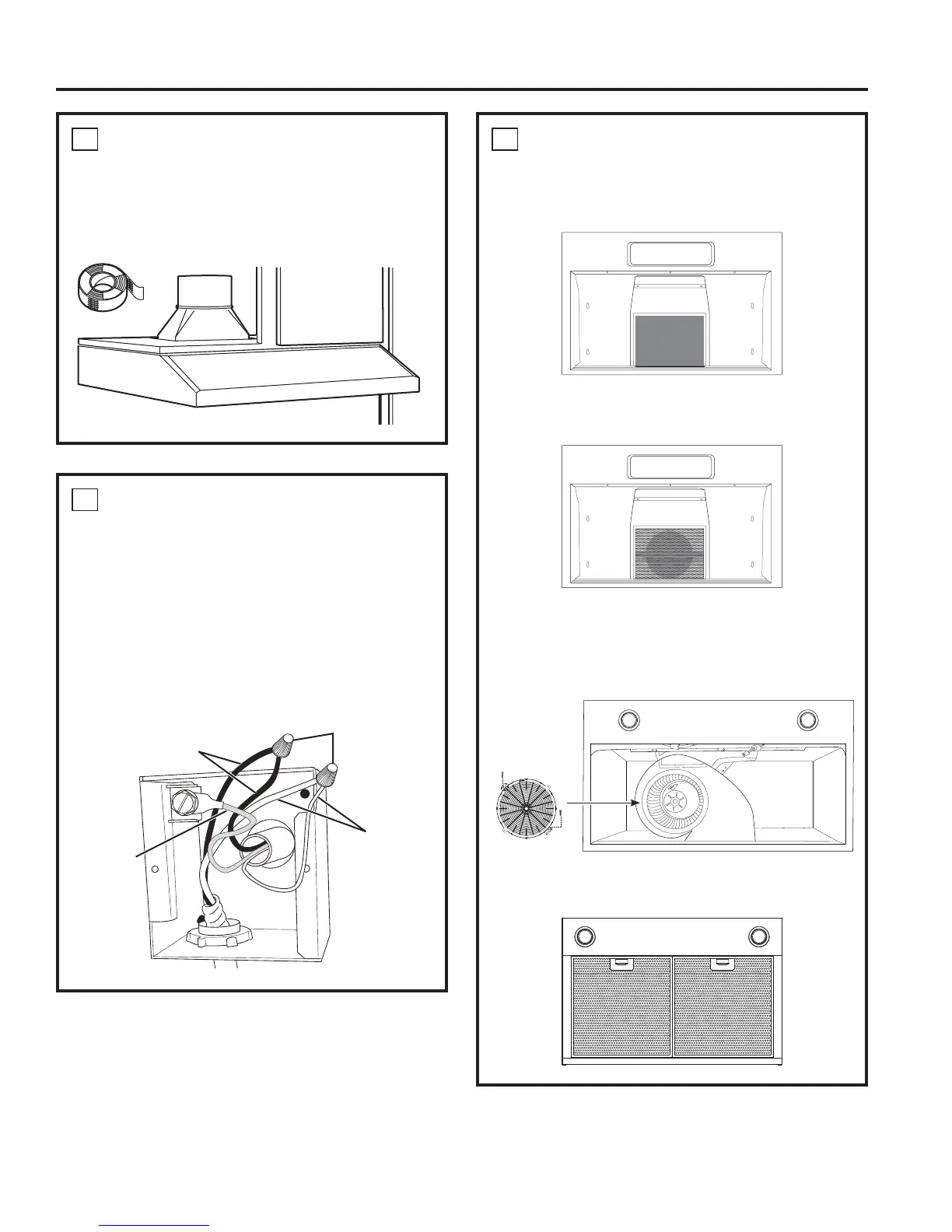

Connect ducting to hood. Use duct tape to
make joints secure and airtight.
INSTALLATION INSTRUCTIONS
Installation Instructions
13
ELECTRICAL CONNECTION
1. Connect the Power Supply Cable to the range
hood. Attach the white lead of the power
supply to the white lead of the range hood
(A) with a wire nut (C). Attach the black lead
of the power supply to the black lead of the
range hood (B) with a wire nut (C). Connect
the green (D) ground wire under the green
grounding screw.
2. Replace the junction box cover.
14
FINISH THE INSTALLATION
On Some Models:
1. For recirculation: Install the charcoal filter.
2. For ducted installation: Install the grease
filters.
On Some Models:
1. For recirculation: Place the charcoal filter
(not included) in place and mount using 2
screws. Replace the grease filters.
2. For vented installation: Install the grease
filters.
B
D
C
A
To Next Page
