Masoneilan 4700P/E & 4800P/E Positioners Manual =| 21
© 2015 General Electric Company. All rights reserved
.

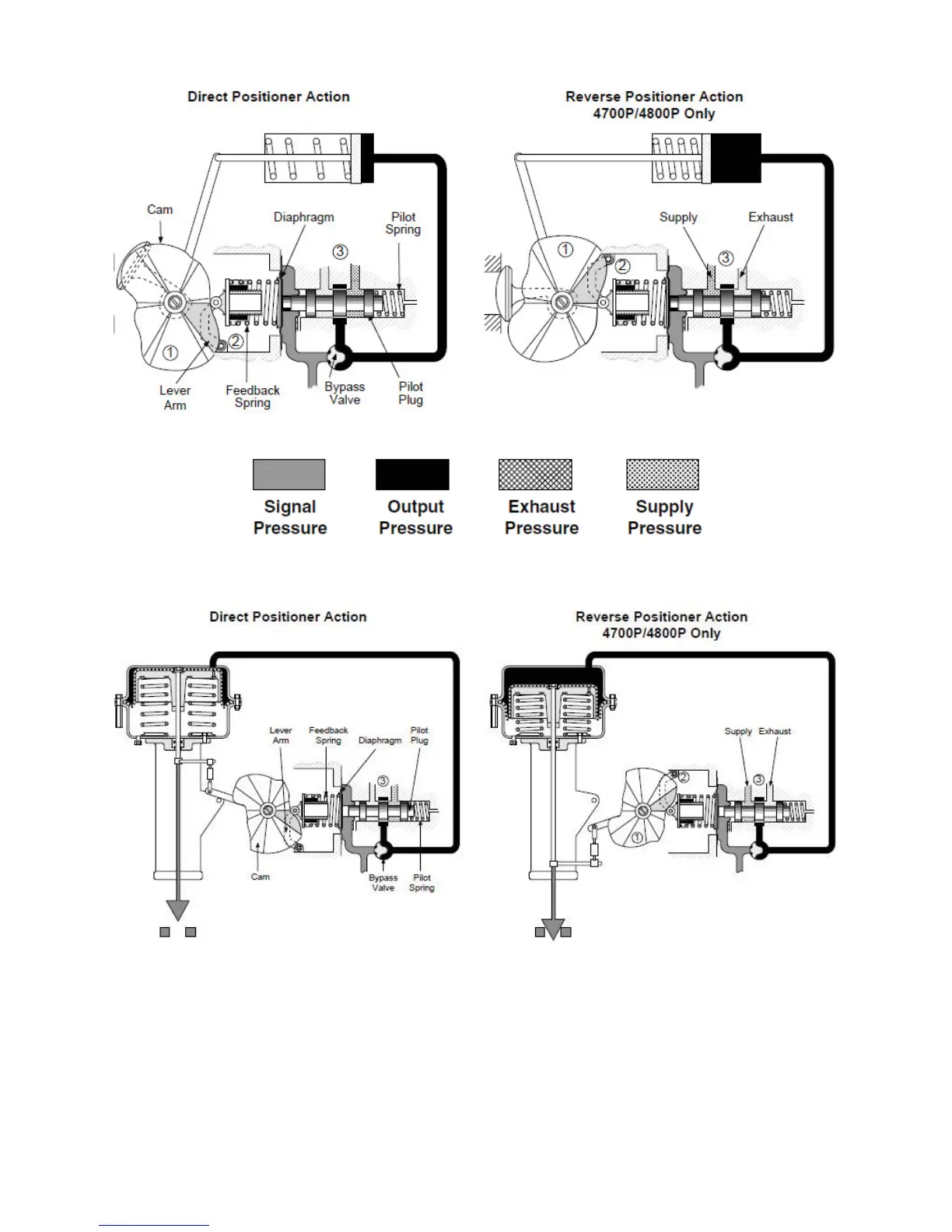

Figure 3 Rotary
Figure 4 Reciprocating
For 4700P/4800P model only, positioner action can be reversed by simply engaging the proper
lobe on the cam and reversing the follower arm (numbers 1 and 2 above), and the supply and
exhaust ports (number 3 above).
* Option 4700P only
