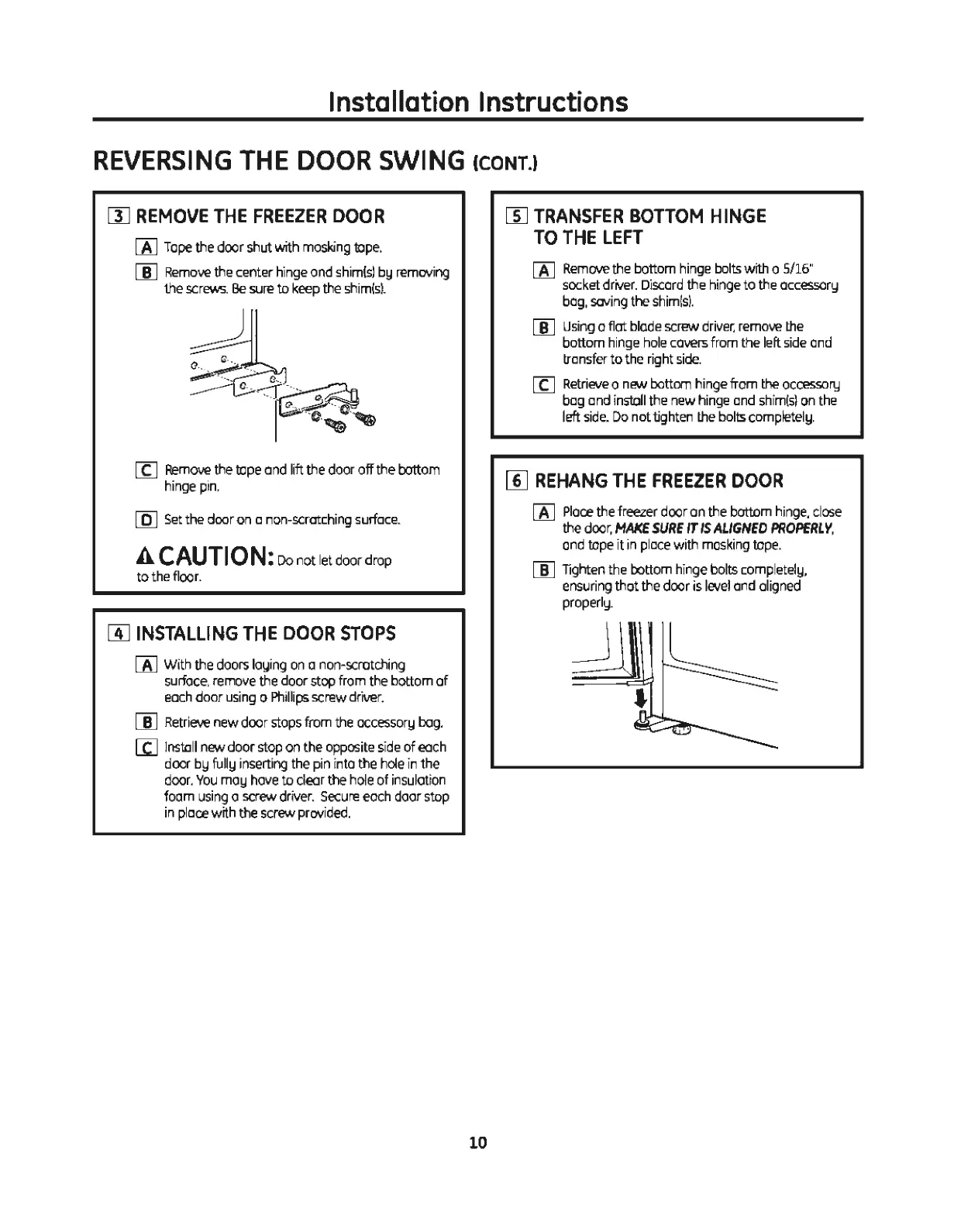

Installation Instructions
REVERSING THE DOOR SWING ICONT.I
W REMOVE THE FREEZER DOOR
[A] Tope the door shut with masking tope.
[j] Remove the center hinge ond shimlsJ by removing
the scre.o.is. Be sure to keep the shim(s).
cg Remove the tcpe ond lift the door off the bottom
hinge pin.
[QJ Set the door on a non-scratching surface.
A CAUTION: Donotletdoordrop
to
the floor.
[4J INSTALLING THE DOOR STOPS
[A] With the doors laying on a non-scratching
surface. remove the door stop from the bottom of
each door using o Phillips screw driver.
[j] Retrieve new door stops from the accessory bag.
[CJ Install ne.v door stop on the opposite side of each
door by fully inserting the pin into the hole in the
door. You moy hove to clear the hole of insulation
foam using o scre..v driver. Secure each door stop
in place with the scre..v provided.
10
[SJ TRANSFER BOTTOM HINGE
TO THE LEFT
[A] Remove the bottom hinge bolts with o 5/16"
socket driver. Discard the hinge to the accessory
bag, saving the shimls).
[j] Using o flat blade screw driver. remove the
bottom hinge hole covers from the left side and
transfer to the right side.
cg Retrieve o new bottom hinge from the occessol"ld
bog and install the new hinge and shim(s) on the
left side. Do not tighten the bolts comp~tely.
[§]REHANG THE FREEZER DOOR
[A] Place the freezer door on the bottom hinge, close
the door, MAJ<E SURE IT IS ALIGNED PROPERL V,
end tape it in place with masking tape.
[j] Tighten the t::ottom hinge bolts completely,
ensuring thot the door is level and aligned
properly.
