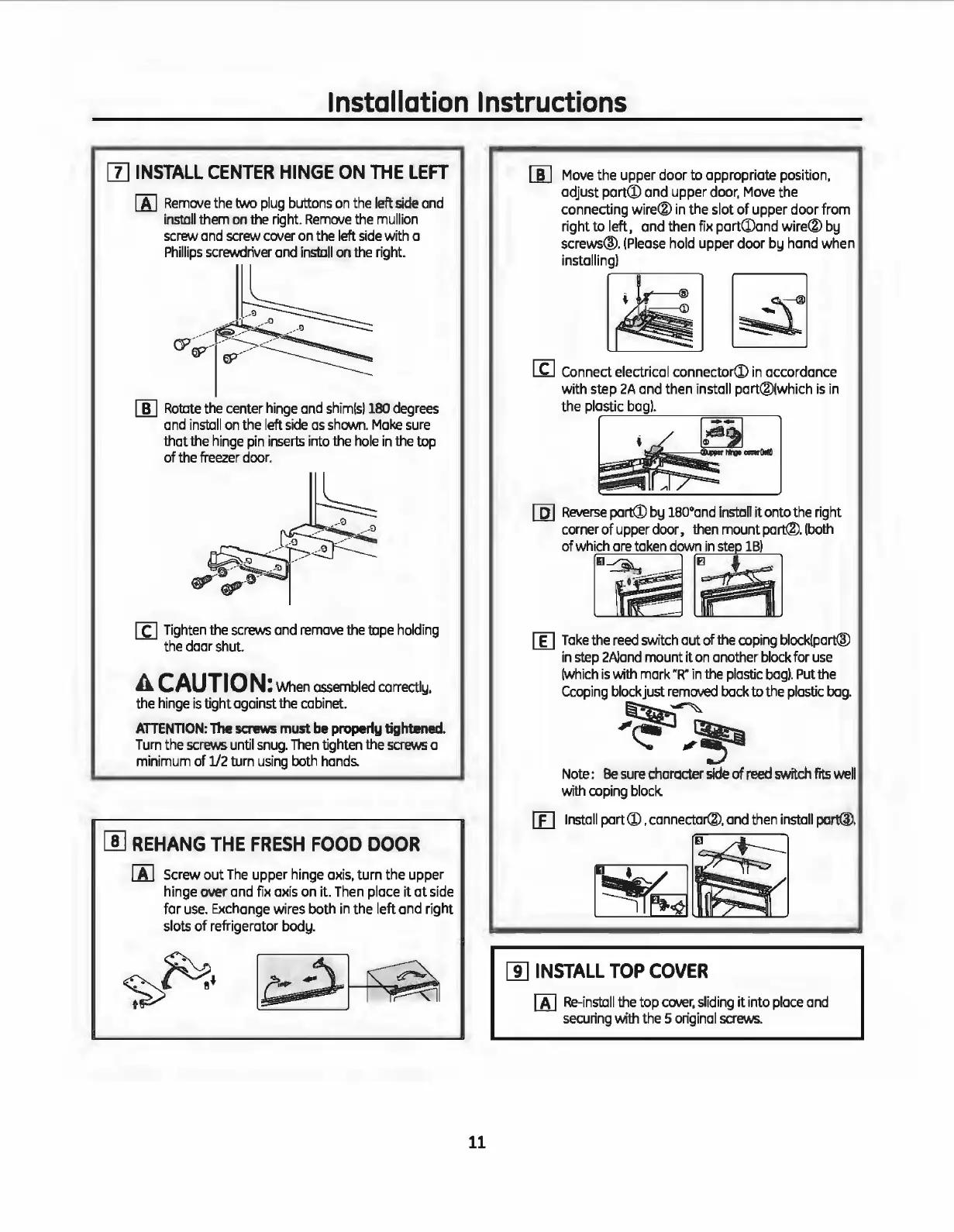

Installation Instructions
[1J INSTALL CENTER HINGE ON THE LEFT
[A] Remove the two plug buttons on the left side and
install them on the right. Remove the mullion
screw and screw cover on the left side with a
Phillips scrE!IAldriver and install on the right.
.~
CP~
[[] Rotate the center hinge and shimlsl 180 degrees
and install on the left side as shOYJn. Make sure
that the hinge pin inserts into the hole in the top
of the freezer door .
[t] Tighten the screws and remove the tape holding
the door shut.
A CAUTION: When assembled correctly,
the hinge is tight against the cabinet.
ATTENTION: lhe screws must be properly tightened.
Turn the screws until snug. Then tighten the SCfe'NS a
minimum of 112 turn using both hands.
[!] REHANG THE FRESH FOOD DOOR
[A] Screw out The upper hinge axis, turn the upper
hinge over and fix axis on it. Then place it at side
far use. Exchange wires both in the left and right
slots of refrigerator body.
11
[j]
Move the upper door to appropriate position,
adjust partQ) and upper door, Move the
connecting wire® in the slot of upper door from
right
to left, and then fix partCDand wire® by
screws@. (Please hold upper door by hand when
installing)
~~----.
ctJ Connect electrical connector(}) in accordance
with step 2A and then install part®lwhich is in
the plastic bag).
[Q] Reverse part(!) by 180°and lnston it onto the right
corner of upper door, then mount part@. (both
of~Tijlif ~tfi I
[[] Take the reed switch out of the coping block(part@
in step 2Aland mount it on another block for use
!which is v.nth mark "R" in the plastic bag). Put the
Ccop ing block just removed back to the plastic bag.
,~.
'- ,~
Note: Be sure character side of reed switch frts well
with coping block
[E] Install part Q) . connector@. and then install part@,
~~
[!] INSTALL TOP COVER
[A] Re-install the top cover, sliding it into place and
securing v.Ath the 5 original screws.
