WiFi Antenna Interface (Optional)
Integrated WiFi is a future option.
GPS Antenna Interface (Optional)
Integrated GPS is a future option.
6.4 SD Master Radio Modules

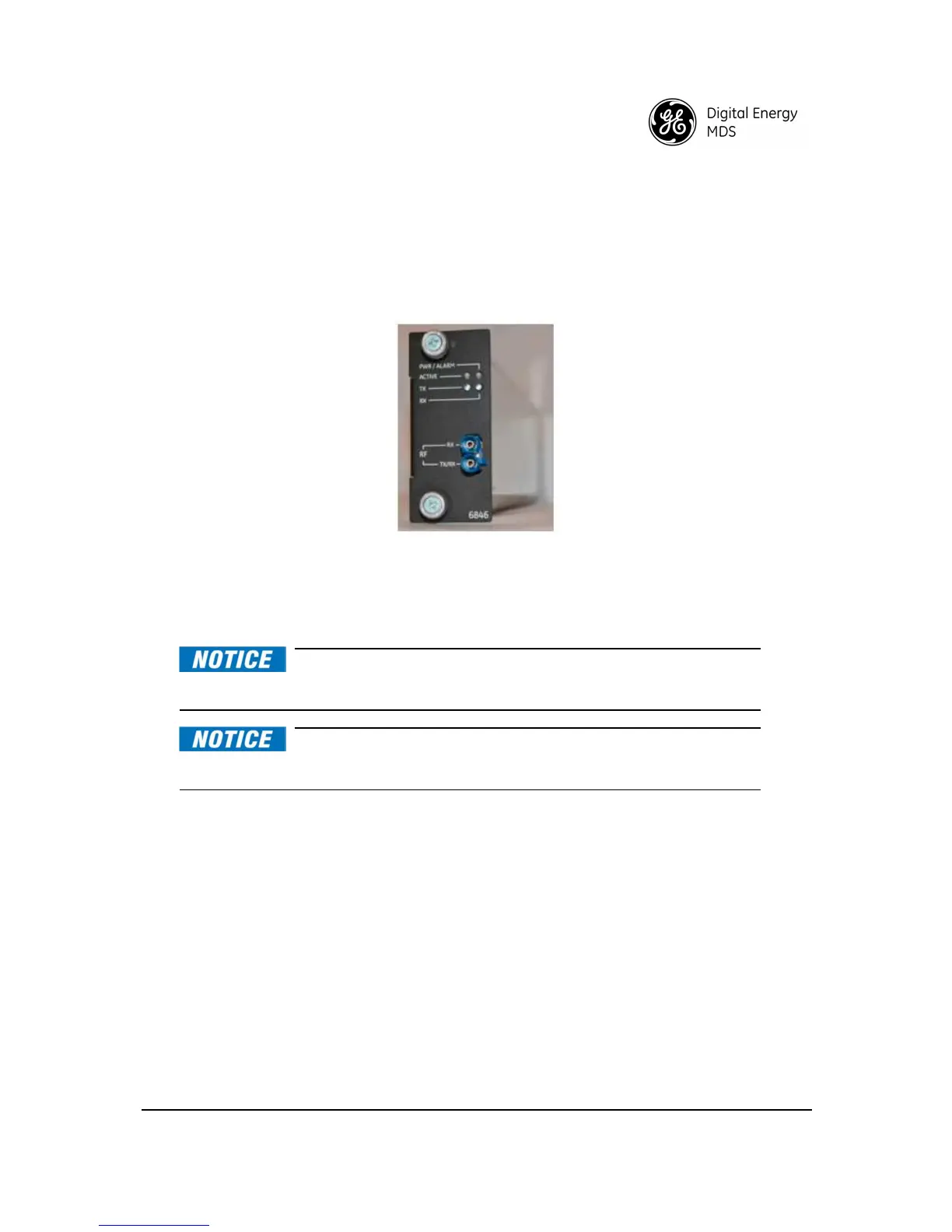

Figure 6-7. SD Radio Module
(Part No. 03-6846A01-xx)
The SD Master Radio Modules are field replaceable, hot swappable, full duplex radios offering
narrowband communications. Current offerings include variants that span 800-960MHz.
Master station Radio modules are field replaceable and hot swap-
pable. Refer to Section 7.4 Replacing Modules for information on removal and in-
stallation.
When installing Radio Modules, torque thumbscrews to 10 in-lbs
to insure optimum heat transfer through thermal contact connector on the rear of the
unit.
SD Master Radio Module LED Indicators
The SD Radio Modules have bi-color green/red LEDs to indicate power, alarm, and ac-
tive/standby status as shown in the table below. Blue LEDs to indicate receiver transmit and re-
ceive are also provided.
