Cut-out dimensions:
Height: 34
1
/2–35″ (876–889 mm)
Width: 23
3
/4″ (603 mm) minimum
Depth: 24″ (610 mm)

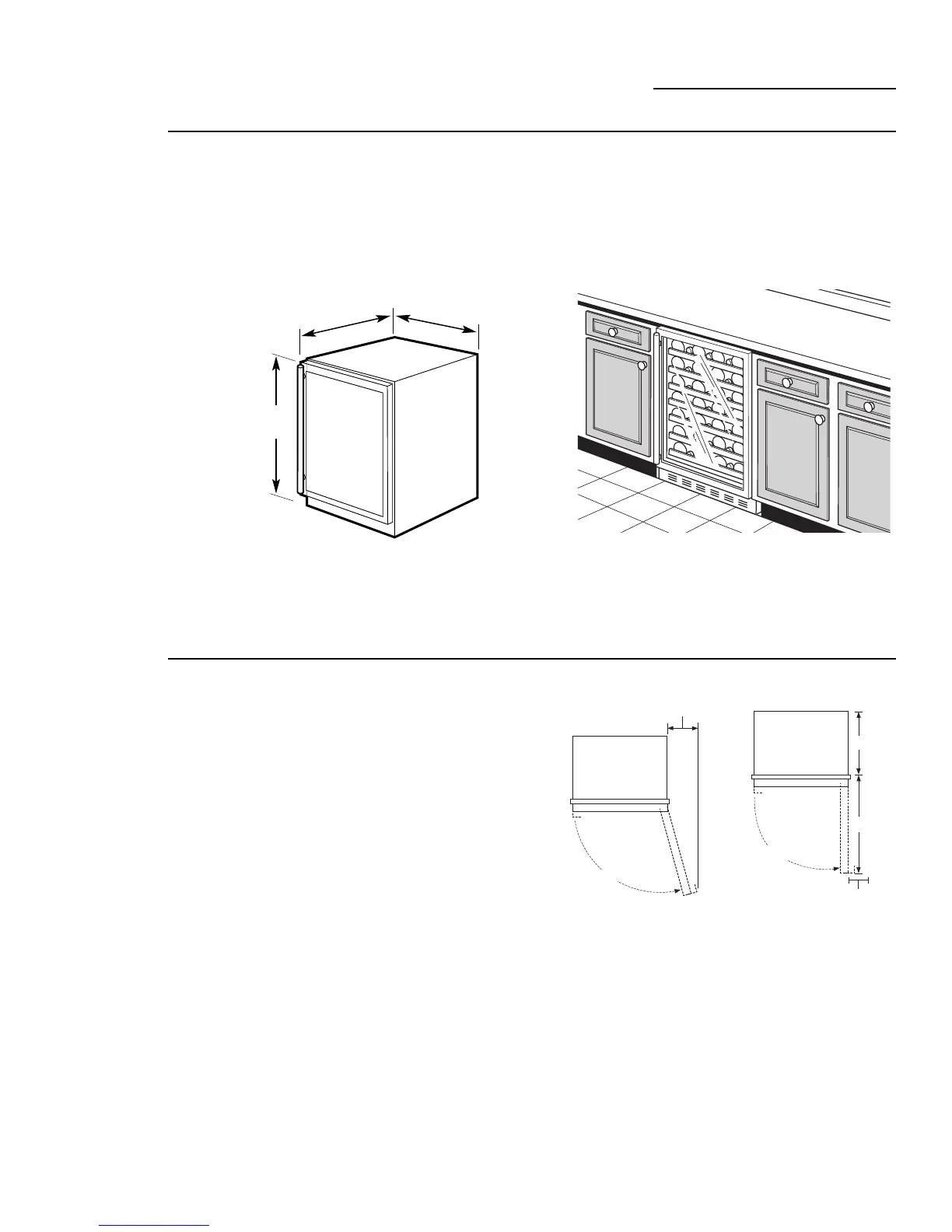

Built-In Dimensions
Wine Reserve
Installation
dimensions
The wine reserve can be a free-standing
model or can be built in using the cut-out
dimensions below.
When building in the wine reserve, be sure
to allow for a full door swing so you have
full access to the pull-out drawers.
See the Installation Instructions (Pub. No.
49-60210) for complete directions.
34
1
/2″
(876 mm)
23
3
/4″
(603 mm)
23
3
/4″
(603 mm)
Product dimensions:
Height: 34
1
/2″ (876 mm)
Width: 23
3
/4″ (603 mm)
Depth: 23
3
/4″ (603 mm)
NOTE:
Handle and
handle standoff
depth is 1
3
/4″
Product
clearances
The wine reserve is factory set for a 110°
door swing.
When installed in a corner:
• Allow 4″ minimum clearance on the
hinge side for the 90° door swing and
to allow racks to slide out.
• Allow 10″ minimum clearance on the
hinge side for a full 110° door swing.
• The door swing is reversible on all models.
If desired, change the door swing before
installation.
Choose the location:
• These products may be closed in on the
top and three sides as long as the front
is unobstructed for air circulation and
proper access to the door.
• Do not install these products where the
temperature will go below 55°F (13°C)
or above 90°F (32°C).
• Do not install where it will be subject to
direct sunlight, heat or moisture.
Black or Stainless Steel Toekick Options
These products are shipped with a black
toekick installed. An optional stainless steel
toekick is also supplied with each product.
For shipping purposes, the stainless steel
toekick is secured to the back of the unit.
10" Minimum
to Wall
110°
21-5/8"
23-5/8"
4" Minimum
to Wall
90°
90° Door Swing
