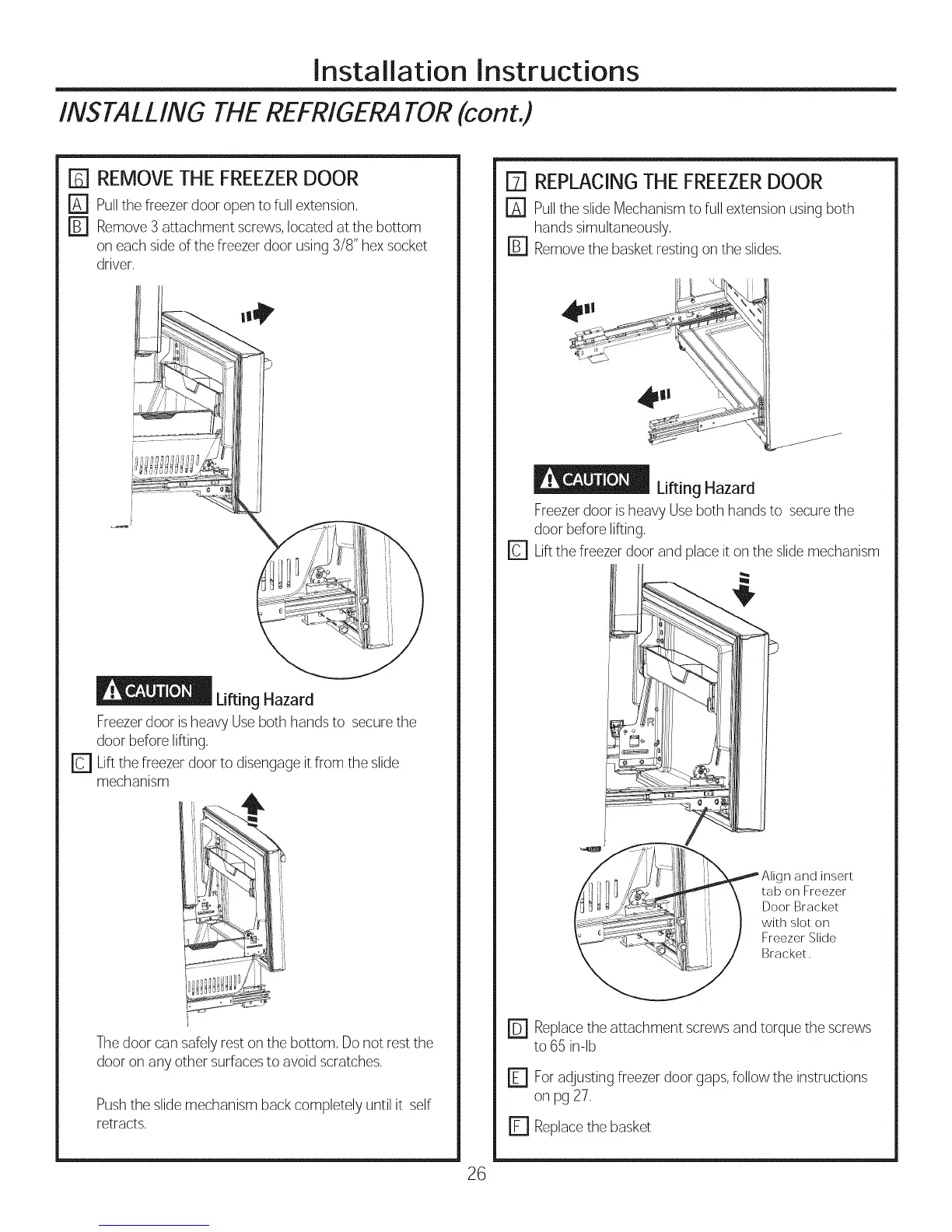

INSTALLING
installation instructions
THEREFRIGERATOR (cont.)
E] REMOVE THE FREEZER DOOR
r_ Pullthe freezer door open to full extension,
[] Remove 3 attachment screws, located at the bottom
on each sideof the freezer door using 3/8" hex socket
driver,
_ Lifting Hazard
Freezerdoor is heavy Useboth hands to securethe
door before lifting,
r_ Lift the freezer door to disengage it from the slide
mechanism
Thedoor can safely rest on the bottom, Do not rest the
door on any other surfaces to avoid scratches,
Pushthe slide mechanism back completely until it self
retracts,
171REPLACING THE FREEZER DOOR
[] Pullthe slideMechanism to full extension using both
hands simultaneously,
Removethe basket resting on the slides,
/jjjl
f
Lifting Hazard
Freezerdoor is heavy Useboth hands to securethe
door before lifting,
r_ Lift the freezer door and place it on the slide mechanism
_ lign and insert
tab on Freezer
Door Bracket
with slot on
Freezer Slide
Bracket,
Replacethe attachment screws and torque the screws
to 65 in-lb
[] For adjusting freezer door gaps,follow the instructions
on pg 27,
r_ Replacethe basket
26
