4. Pull the Styrofoam™ fan support straight out
from the Styrofoam recess.
5. Pull the deli pan fan straight out from the
Styrofoam recess.

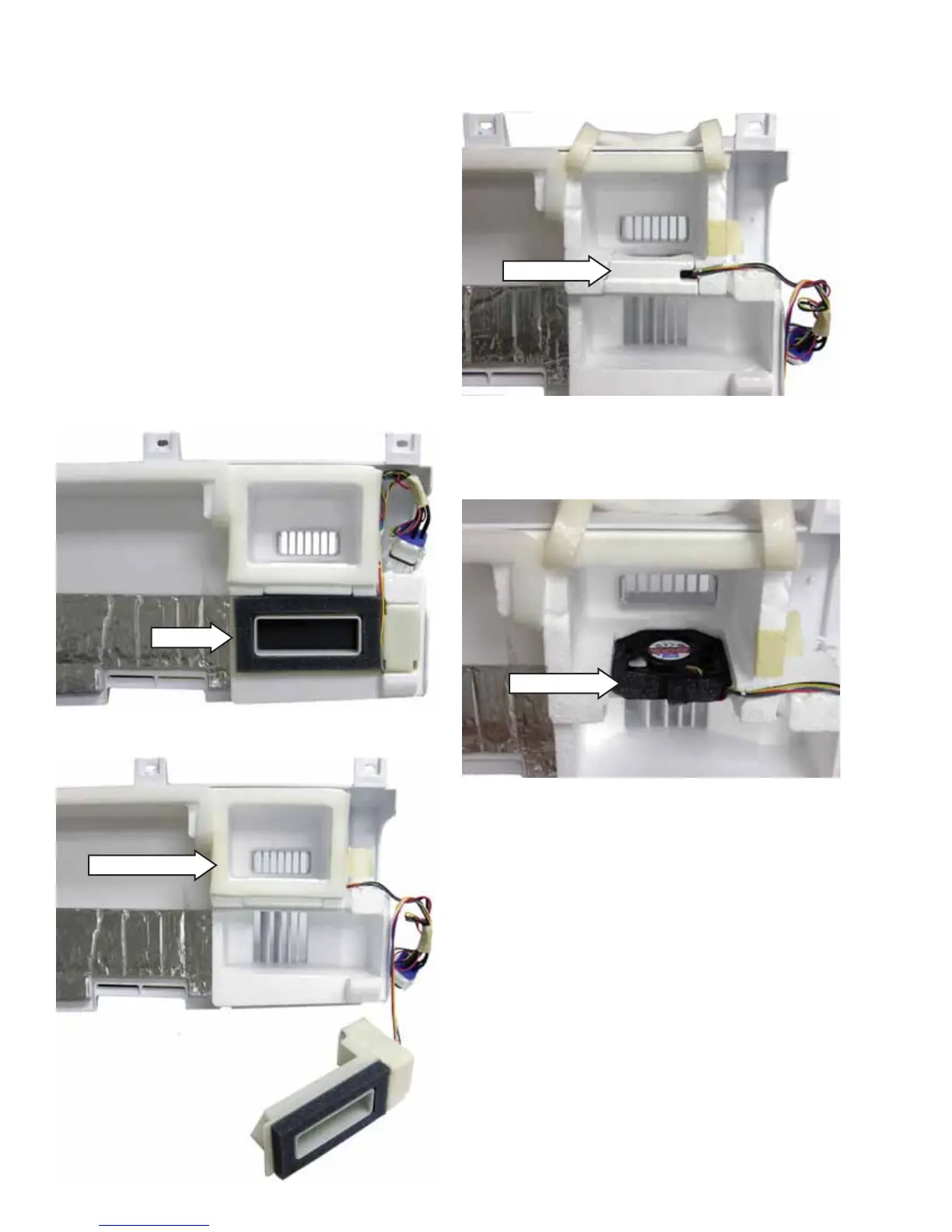

Fan Support
Deli Pan Fan
Deli Pan Damper and Fan Assembly
The deli pan damper and fan assembly is inserted in
a Styrofoam™ recess that is located on the inside of
the fresh food evaporator cover.
The deli pan fan will operate at 3000 to 6000 RPM
with RPM feedback to the control.
To access the deli pan damper and fan assembly,
it is necessary to remove the fresh food evaporator
cover.
To replace the deli pan fan and damper assembly:
1. Remove the fresh food evaporator cover. (See
Fresh Food Evaporator Cover.)
2. Pull the damper straight out from the Styrofoam
recess located inside the evaporator cover.
Damper
3. Peel back the damper gasket.
Damper Gasket
(Continued next page)
