Deli Pan Slides
To remove a deli pan slide:
1. Remove the recessed 1/4-in. hex-head screw
that attaches the front of the slide support to
the liner wall.
Note: If there is not a screw in the front hole and the
deli pan side support does not come loose, look for a
screw in the second hole.
2. With the slide support against the liner wall,
pull the slide support toward the front of the
refrigerator.
Note: When installing the slide support, make sure
to engage the slide post cutout into the slide post
before pushing the slide into place.
Recessed Screw
Slide Post
Slide Post Cutout
Second Hole
(Continued next page)
To access the heater, it is necessary to remove the
fresh food evaporator cover.
To remove the deli pan heater:
1. Remove the fresh food evaporator cover. (See
Fresh Food Evaporator Cover.)
2. Remove the 1/4-in. hex-head screw that
attaches the heater bracket to the back wall of
the fresh food compartment.
3. Disconnect the AC component wire harness.
Deli Pan Heater
4. Disconnect wiring from the evaporator defrost
heater terminals and remove the defrost
overtemperature thermostat from the
evaporator.
5. Loosen the two 1/4-in. hex-head screws that
attach the evaporator to the back wall of the
fresh food compartment.
6. Carefully lift and pull the evaporator from the
back wall to access the rear of the drain trough.
7. Remove the ground wire from the drain trough.
8. Remove wiring from the 2 wire retainers
attached to the back wall.

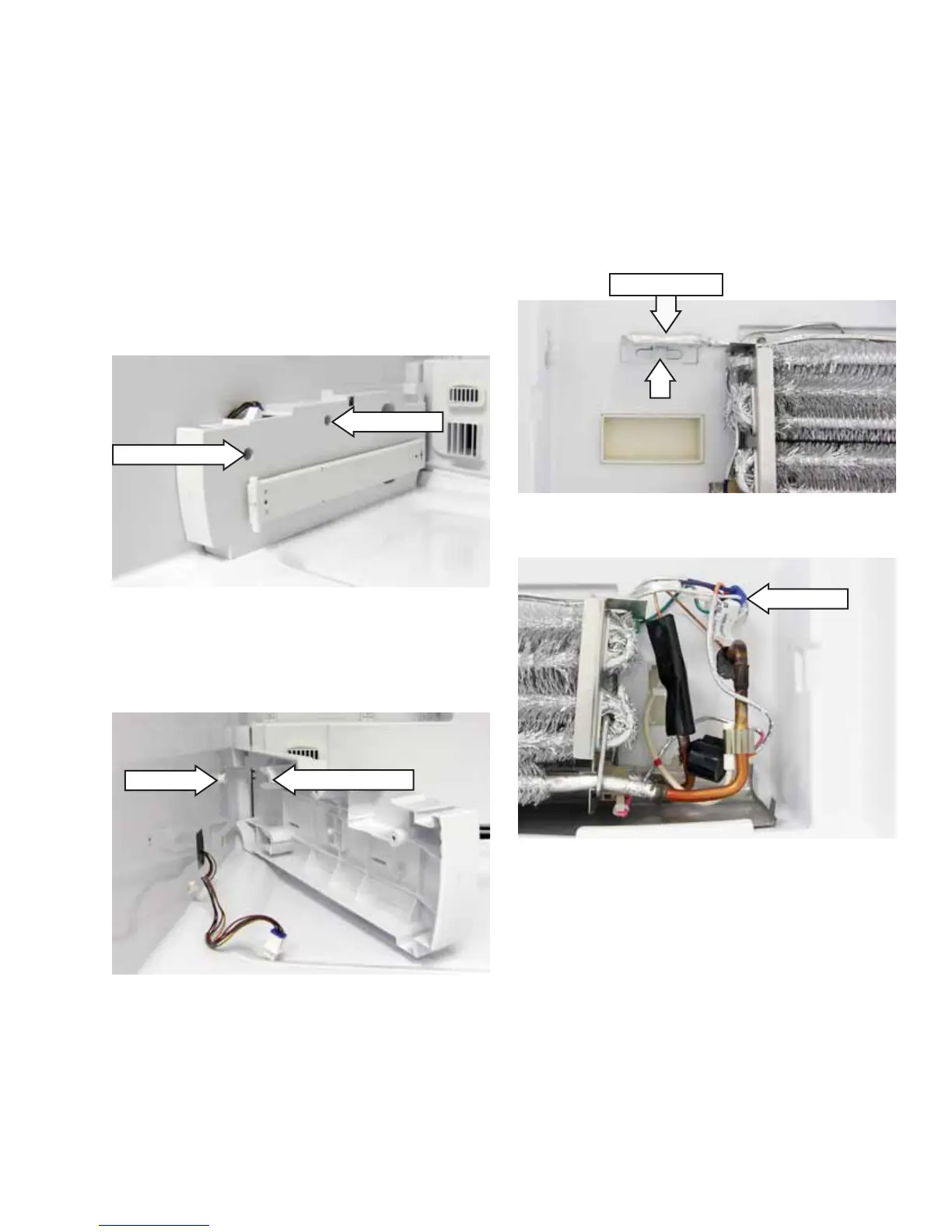

Disconnect
Deli Pan Heater and Thermostat
The deli pan heater and thermostat are foil
enclosed and attached to a bracket located on
the back wall of the fresh food compartment. The
thermostat opens at 162°F and is nonresettable.
The heater, thermostat, and bracket are part of the
AC component wire harness. The heater has an
approximate resistance value of 1.1K Ω.
To Next Page
