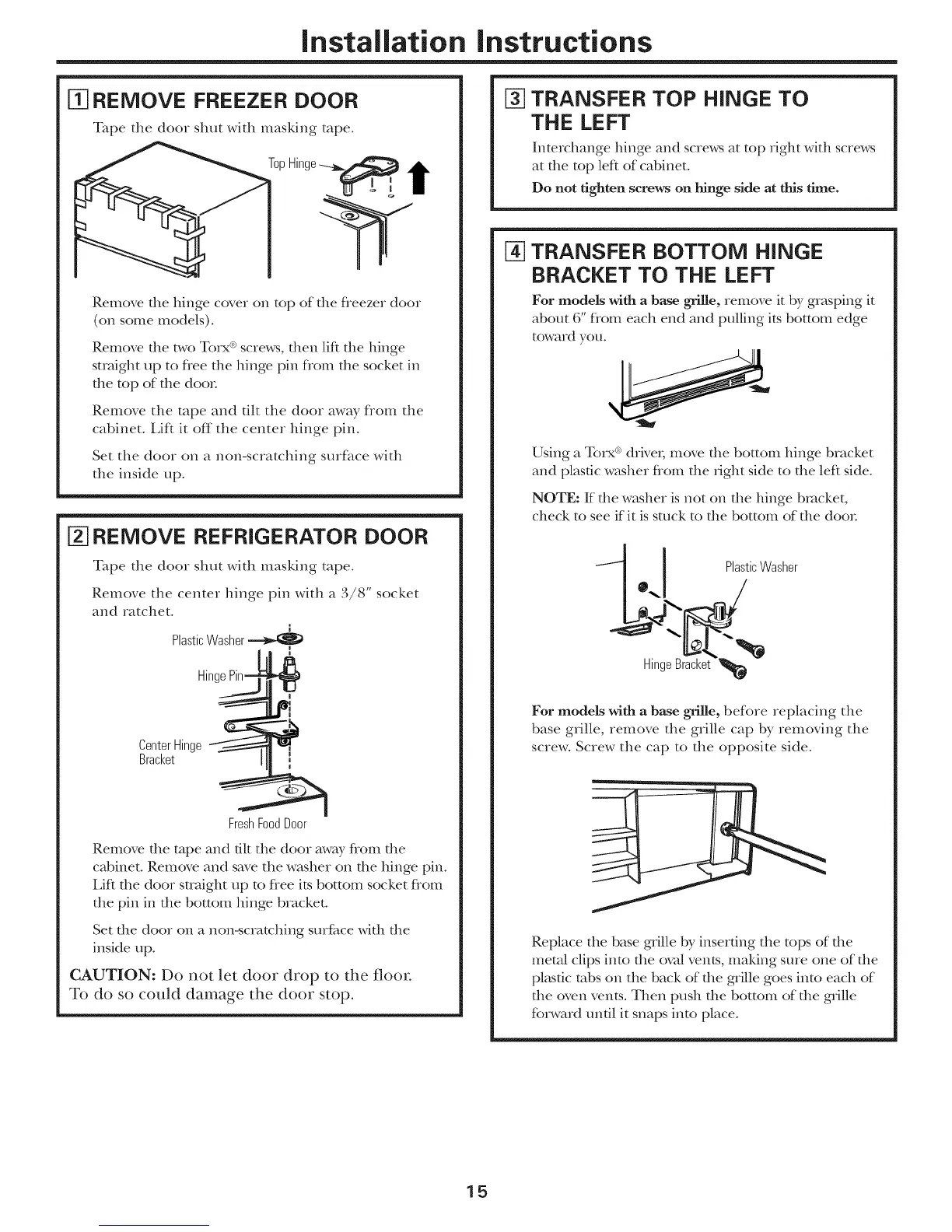

Installation instructions
[_ REMOVE FREEZER DOOR
Tape the door shut with masking tape.
!
Remove the hinge cover on top of the fleezer door
(on some models).
Remove the t_,voTorx ®screws, then lift the binge
straight up to flee the binge pin flom the socket in
the top of the door
Remove the tape and tilt the door away flom the
cabinet, i,iff it off the center binge pin.
Set the door on a non-scratching smface with
the inside up.
REMOVE REFRIGERATOR DOOR
Tape the door shut with masking tape.
Remove the center binge pin with a 3/8" socket
and ratchet.
i
PlasticWasher
I
HingePin_
CenterHinge
Bracket
4}
i
u
FreshFoodDoor
Remove die tape and tilt the door away flom die
cabinet. Remove and save the washer on the binge pin.
Lift the door straight up to flee its bottom socket flom
the pin in the bottom binge bracket.
Set the door on a non-scratching smface with the
inskte up.
CAUTION: Do not let door drop to the floor.
To do so could damage the door stop.
[_ TRANSFER TOP HINGE TO
THE LEFT
Interchange binge and screws at top right with screws
at the top left of cabinet.
Do not tighten screws on hinge side at this time.
[_ TRANSFER BOTTOM HINGE
BRACKET TO THE LEFT
For models with a base grille, remove it by grasping it
about 6" flom each end and pulling its bottom edge
toward you.
Using a Torx ®drivex; move the bottom binge bracket
and plastic washer flom the fight side to the left side.
NOTE: If the washer is not on the binge bracket,
check to see if it is stuck to the bottom of the docn:
--_ 0_ I PlasiicWasher
.4\
For models with a base grille, before replacing the
base grille, remove the grille cap by removing the
screw. Screw the cap to the opposite side.
Replace the base grille by inserting the tops of die
metal clips into file ova/vents, maMng sure one of the
pkkstic tabs on the back of the grille goes into each of
the oven vents. Then push the bottom of the grille
finward until it snaps into place.
