Installation instructions

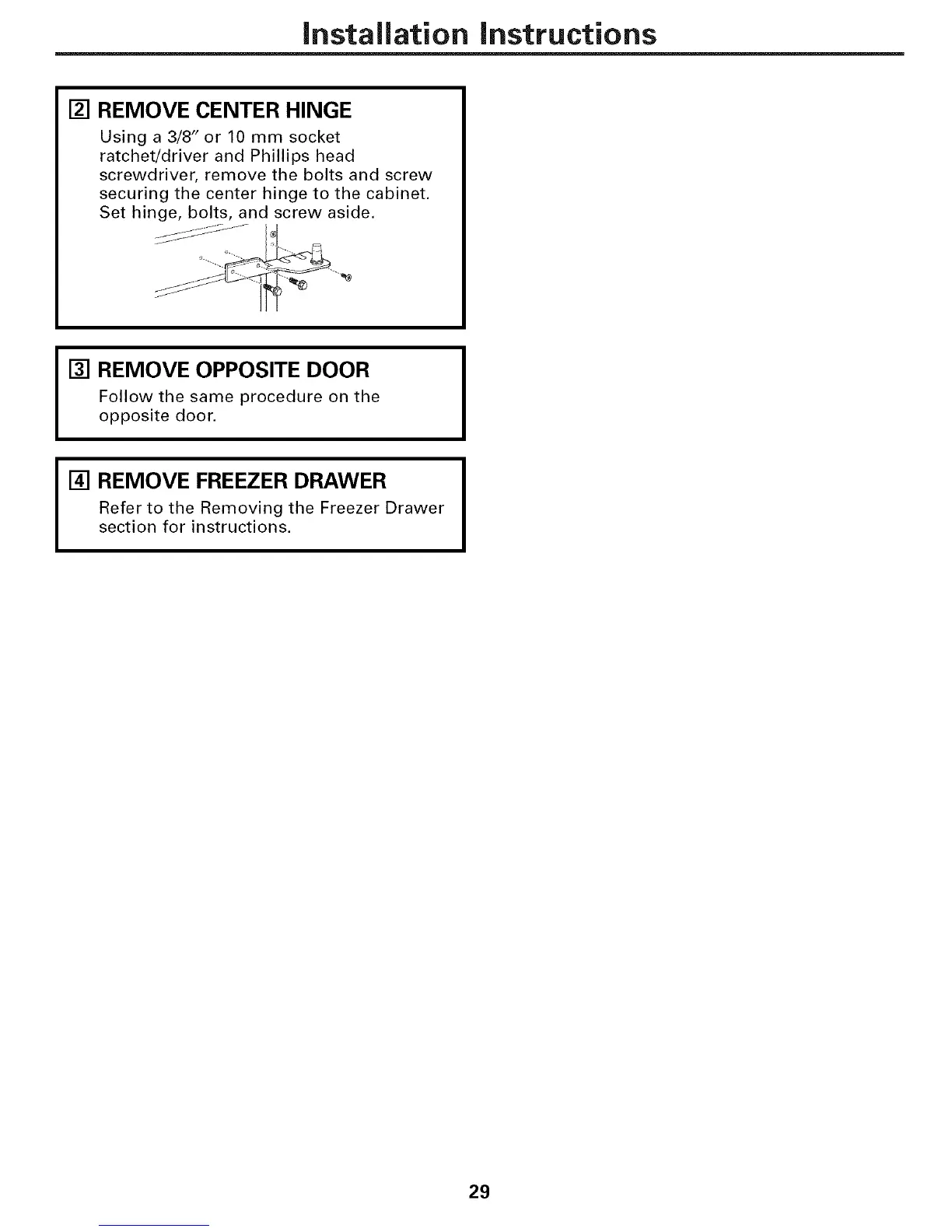

[] REMOVE CENTER HINGE
Using a 3/8" or 10 mm socket
ratchet/driver and Phillips head
screwdriver, remove the bolts and screw
securing the center hinge to the cabinet.
Set hinge, bolts, and screw aside.
[] REMOVE OPPOSITE DOOR
Follow the same procedure on the
opposite door.
[] REMOVE FREEZER DRAWER
Refer to the Removing the Freezer Drawer
section for instructions.
29
