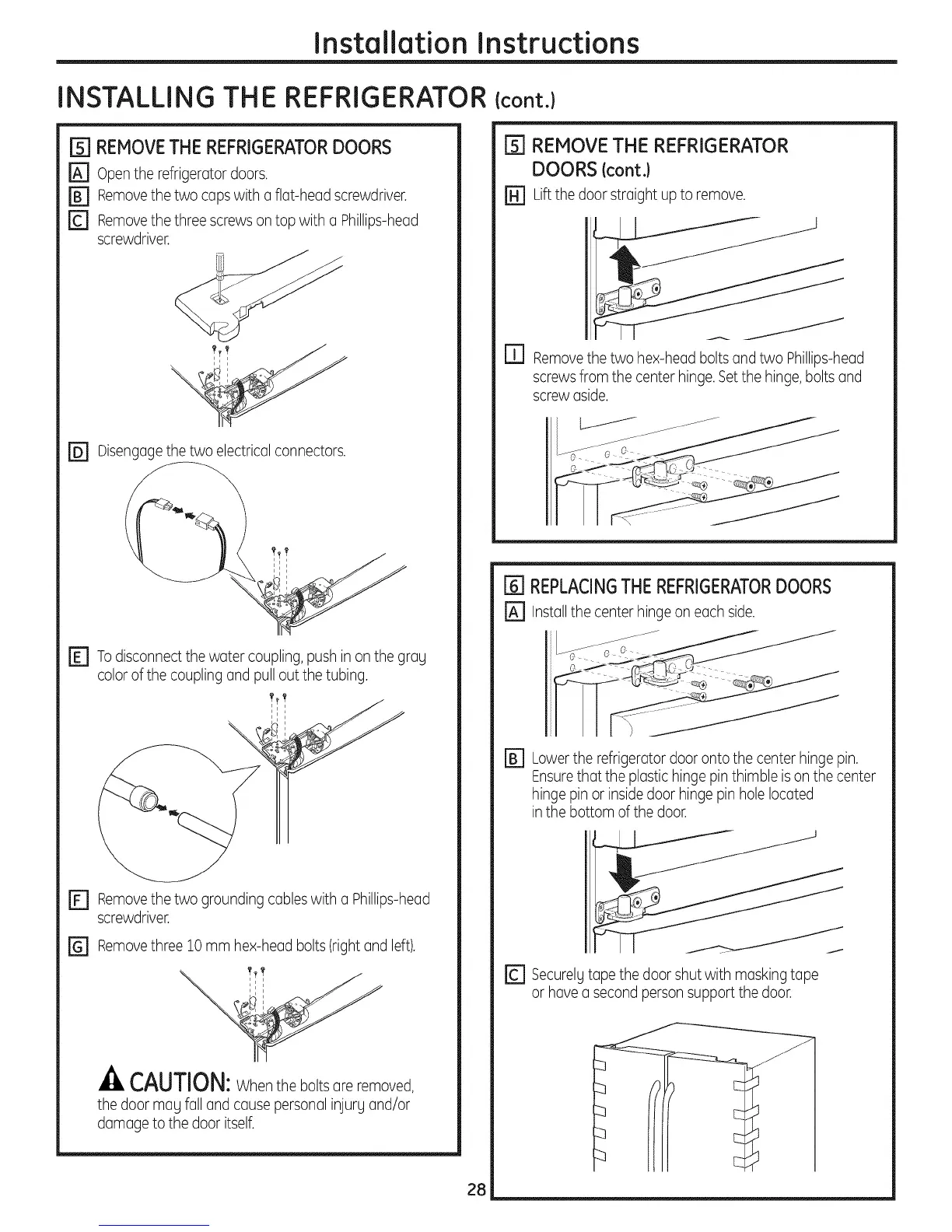

Installation Instructions
INSTALLING THE
REFRIGERATOR {cont.}
FsI REMOVETHE REFRIGERATORDOORS
[] Open the refrigerator doors.
r_ Removethe two caps with a fiat-head screwdriver.
[] Removethe three screwson top with a Phillips-head
screwdriver.
@
Disengagethe two electrical connectors.
r_ Todisconnect the water coupling, push in on the grog
color of the coupling and pull out the tubing.
\
r_ Removethe two grounding cableswith
Phillips-head
a
screwdriver.
[]
Removethree 10 mm hex-head bolts (right and left).
CAUTION:When the bolts are removed,
the door mag fall and cause personal injurg and/or
damage to the door itself.
[_] REMOVE THE REFRIGERATOR
DOORS {cont.)
r_ Liftthe door straight up to remove.
[] Removethe two hex-head bolts and two Phillips-head
screws from the center hinge.Set the hinge, bolts and
screw aside.
16] REPLACINGTHE REFRIGERATORDOORS
r_ Installthe center hinge on each side.
i
r_ Lowerthe refrigerator door onto the center hinge pin.
Ensurethat the plastic hinge pin thimble ison the center
hinge pin or inside door hinge pin hole located
inthe bottom of the door.
E] Securelgtape the door shut with masking tape
or havea second person support the door.
28
