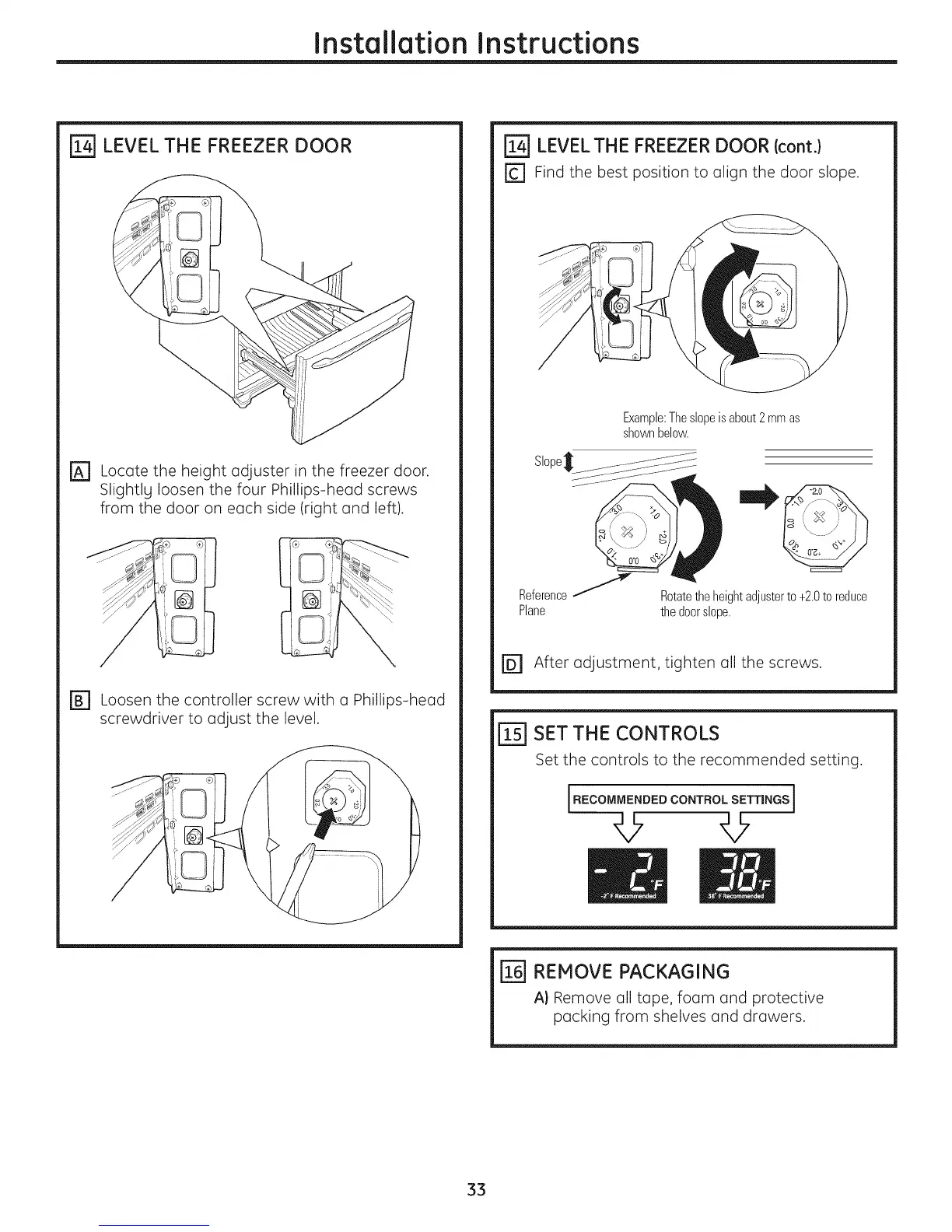

Installation Instructions
LEVEL THE FREEZER DOOR
r_ Locate the height adjuster in the freezer door.
Slightlg loosen the four Phillips-head screws
from the door on each side (right and left).
r_ Loosen the controller screw with a Phillips-head
screwdriver to adjust the level.
LEVELTHE FREEZERDOOR (cont.}
r_ Find the best position to align the door slope.
Example:Theslopeis about2 mmas
shownbelow.
c:z:z:z:z:z_
Rotate the height adjusterto +2.0 to reduce
the doorslope.
r_ After adjustment, tighten all the screws.
SET THE CONTROLS
Set the controls to the recommended setting.
RECOMMENDED CONTROL SETTINGS]
© ©
REMOVE PACKAGING
A} Remove all tape, foam and protective
packing from shelves and drawers.
33
