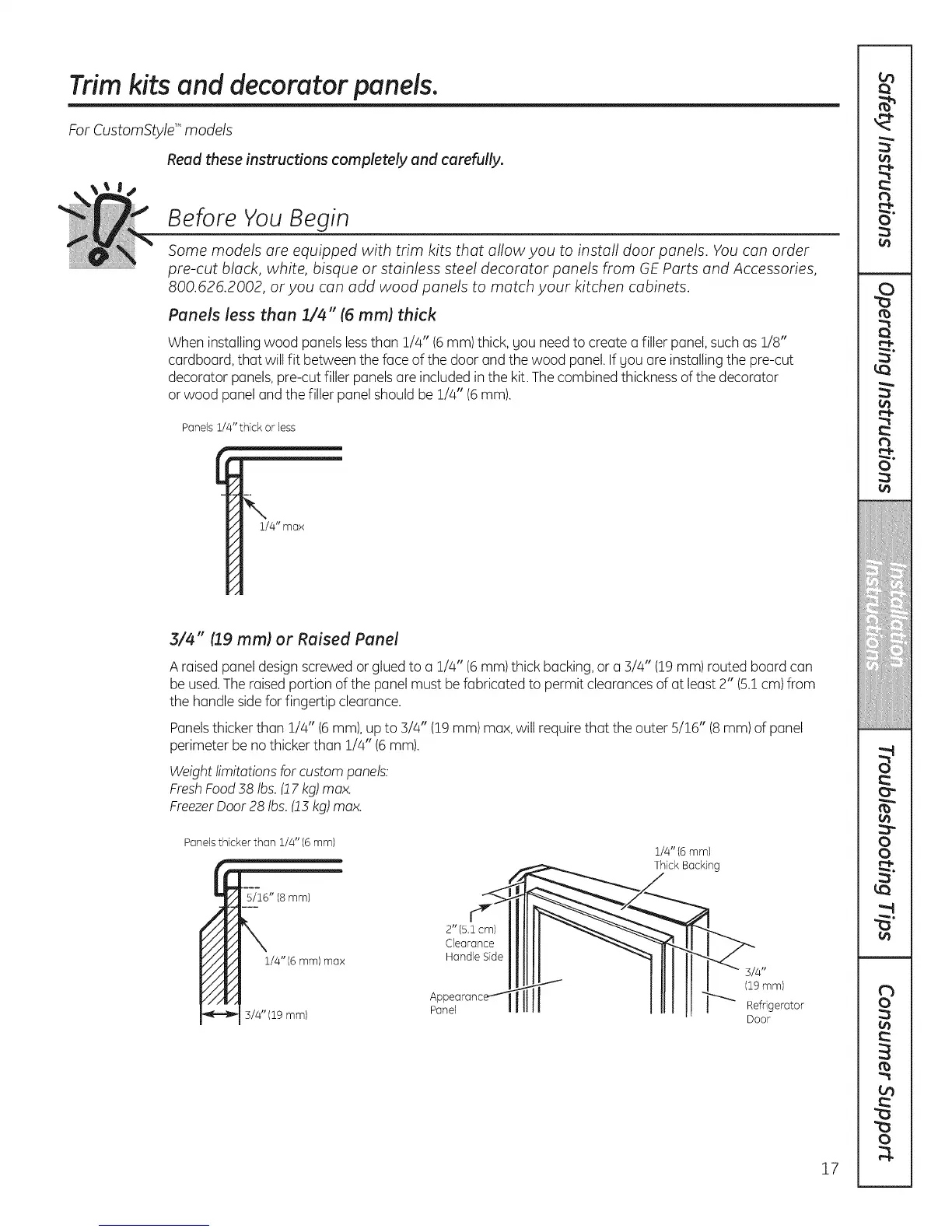

Trim kits and decorator panels.
For CustomStyle '_models
Read these instructions completely and carefully.
Before You Begin
.Some models ore equipped with trim kits thot ollow you to instoll door ponds. You con order
pre-cut block, white, bisque or stoinless steel decorotor ponds from GE Ports ond Accessories,
800.626.2002, or you con odd wood ponds to motch your kitchen cobinets.
Panels less than 1/4" (6 mm) thick
When installing wood panels less than 1/4" (6 ram) thick, gou need to create a filler panel, such as 1/8"
cardboard, that willfit between the face of the door and the wood panel. Ifgou are installing the pre-cut
decorator panels, pre-cut filler panels are included in the kit.The combined thickness of the decorator
or wood panel and the filler panel should be 1/4" (6 ram).
Panels 1/4" thick or less
\
1/4" max
/,
3/4" (19 mm) or Raised Panel
A raised panel designscrewed or glued to a 1/4" (6 mm) thick backing, or a 3/4" (19mm) routed board can
be used.The raisedportion of the panel must be fabricated to permit clearances of at least 2" (5.1cm) from
the handle sidefor fingertip clearance.
Panelsthicker than 1/4" (6 mm), up to 3/4" (19mm) max, will require that the outer 5/16" (8mm) of panel
perimeter be no thicker than !/4" (6 mm).
Weight limitations for custom panels.
FreshFood38 Ibs. (! 7kg) max.
FreezerDoor28 Ibs.(!5 kg) max.
Panelsthicker than 1/4" (6 mm)
5/16" (8 ram)
1/4" (6 ram) max
5/4" (19 ram)
1/4" (6ram)
_.,_,_.._ Thick Backing
Door
