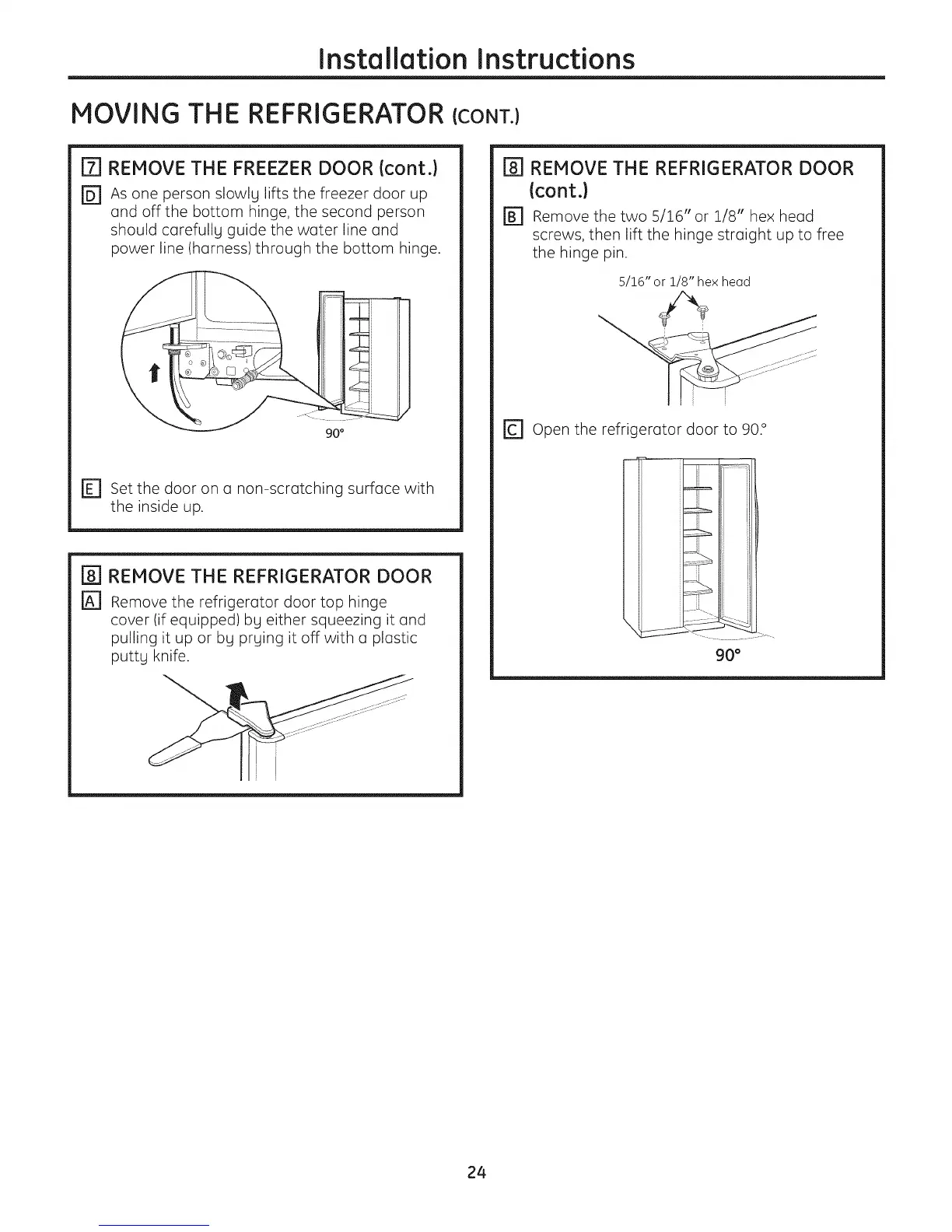

Installation Instructions
MOVING THE REFRIGERATOR (CONT.1
[Z] REMOVE THE FREEZER DOOR {cont.)
@
As one person slowlg lifts the freezer door up
and off the bottom hinge, the second person
should carefullg guide the water line and
power line (harness) through the bottom hinge.
r_ set the door on a non-scratching surface with
the inside up.
[] REMOVE THE REFRIGERATOR DOOR
r_ Remove the refrigerator door top hinge
cover (if equipped) bg either squeezing it and
pulling it up or bg prging it off with a plastic
puttg knife.
!
r_ REMOVE THE REFRIGERATOR DOOR
(cont.)
r_ Remove the two 5/16" or 1/8" hex head
screws, then lift the hinge straight up to free
the hinge pin.
5/16" or 1/8" hex head
q
r_ open the refrigerator door to 902
J
....u....... i
90 °
24
To Next Page
