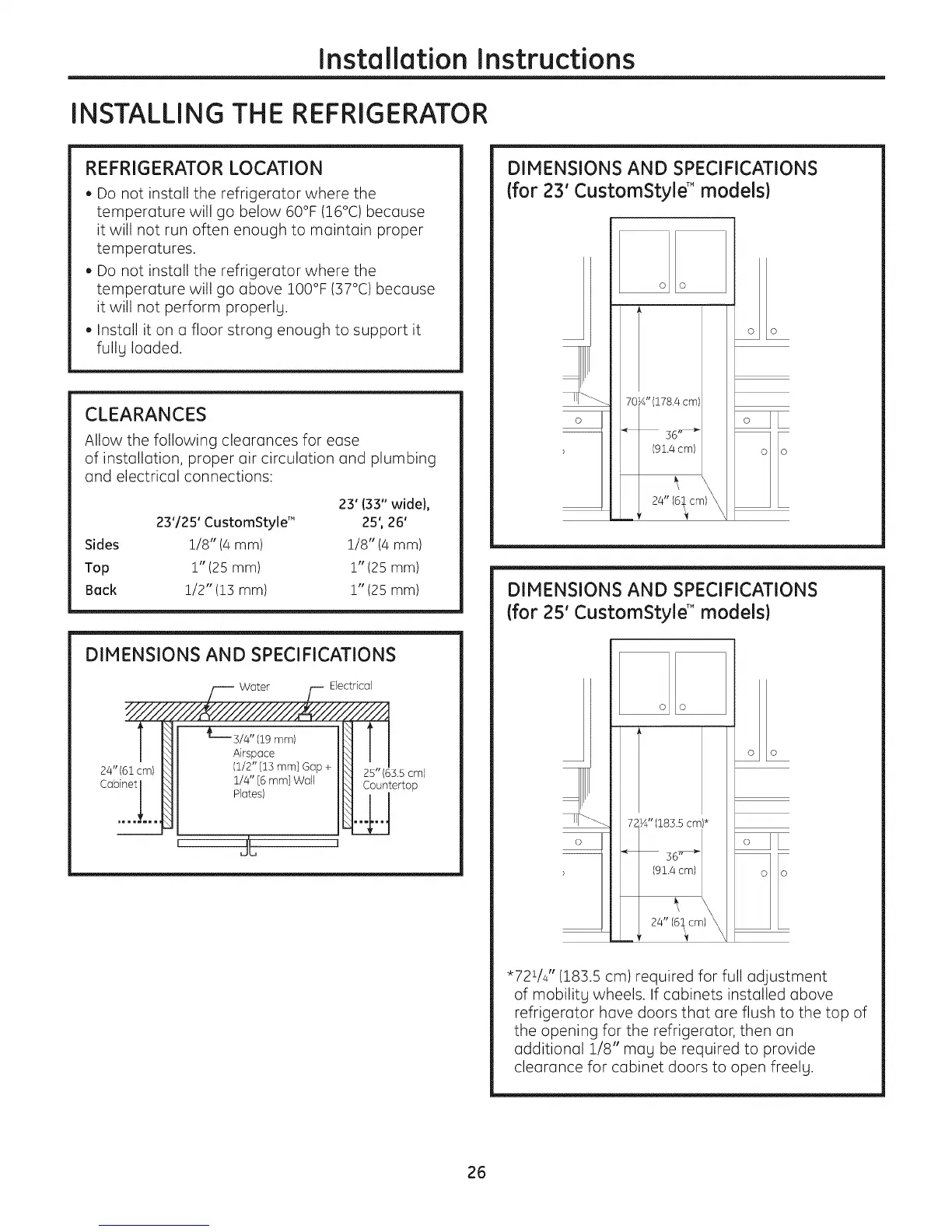

Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
, Do not install the refrigerator where the
temperature will go below 60°F (16°C) because
it will not run often enough to maintain proper
temperatures.
, Do not install the refrigerator where the
temperature will go above 200°F (37°C) because
it will not perform properlg.
, Install it on a floor strong enough to support it
fullg loaded.
CLEARANCES
Allow the following clearances for ease
of installation, proper air circulation and plumbing
and electrical connections:
23' 133" wide},
23'/25' CustomStyle" 25', 26'
Sides 1/8" (4 mm) 1/8" (4 mm)
Top 1" (25 mm) 1" (25 mm)
Back 1/2" (13 mm) 1" (25 mm)
DIMENSIONS AND SPECIFICATIONS
DIMENSIONSAND SPECIFICATIONS
Ifor 23' CustomStyle T"models)
o
)
7Ct,"(178.4cm)
(91.4 cm)
DIMENSIONS AND SPECIFICATIONS
(for 25' CustomStyle T"models)
O
)
72,_" (183.5 cm)*
_- 36 _
(91.4cm)
24" (6t cm)
"721/4" (183.5 cm) required for full adjustment
of mobilitg wheels. If cabinets installed above
refrigerator have doors that are flush to the top of
the opening for the refrigerator, then an
additional 1/8" mag be required to provide
clearance for cabinet doors to open freelg.
26
