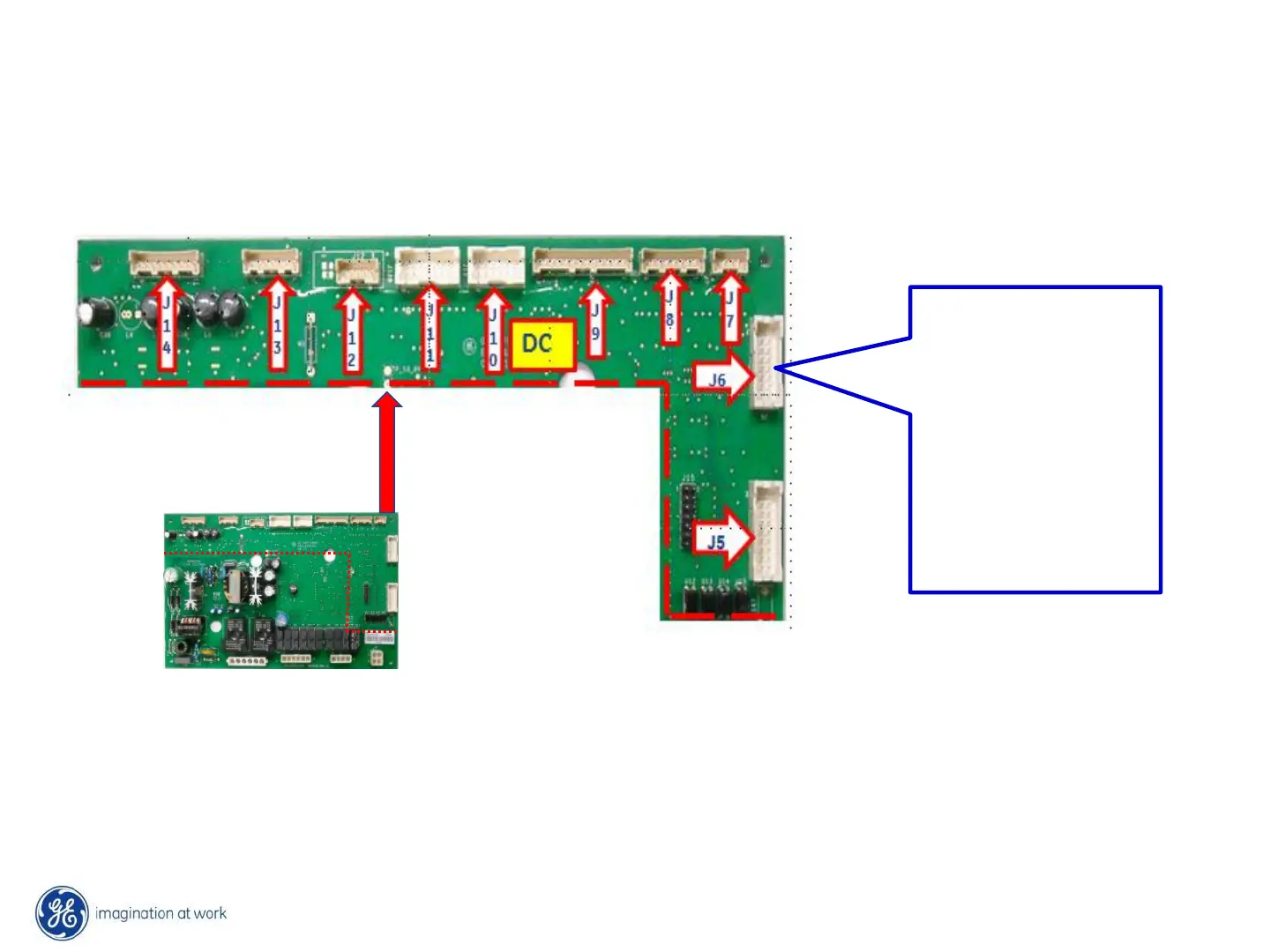

Main Control Board Deli Connector
J6
PIN 1 DELI FAN 12VDC +
PIN 2 FF FAN 12VDC +
PIN 3 DELI FAN 12VDC
PIN 4 FF FAN 12 VDC
PIN 5 DELI FAN RPM
PIN 6 FF FAN RPM
PIN 7 DELI FAN PWM
PIN 8 FF FAN PWM
PIN 9 - DELI DAMPER
PIN 10 DELI DAMPER
PIN 11 - DELI DAMPER
PIN 12 DELI DAMPER
