Connecting Home Antenna or Cable-TV Systems

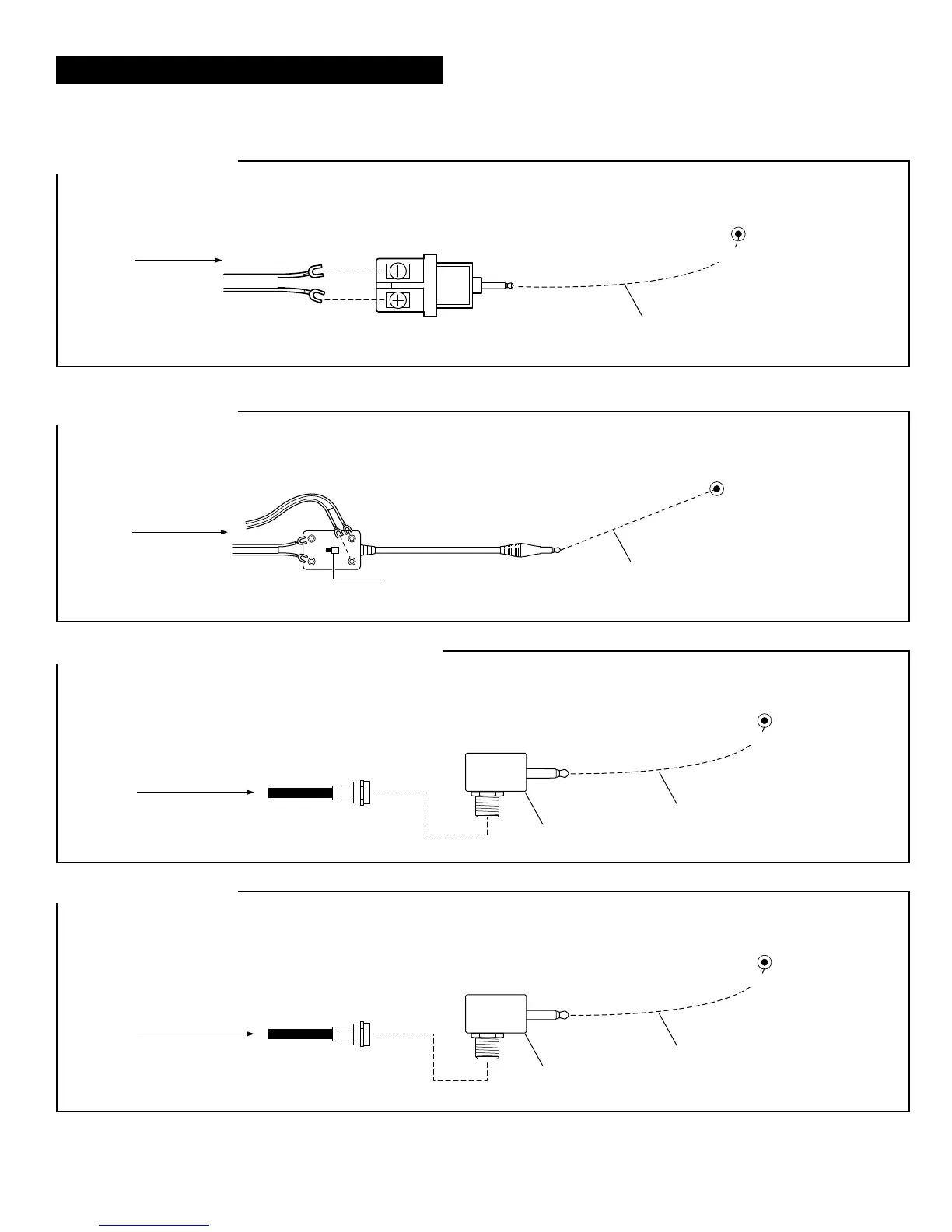

Follow one of these steps to connect a home antenna or cable-TV system to your TV.
A. Home Antenna
If the cable coming from your antenna is a flat twin-lead cable that carries VHF and/or UHF signals,
connect it to your set like this:
B. Home Antenna
If your antenna has two separate flat twin-lead (one for VHF and one for UHF signals), connect it to
your set like this:
C. Home Antenna or Cable-TV System
If the cable coming from your antenna or cable-TV system is a round coaxial cable that carries only VHF sig-
nals, connect it to your set like this:
D. Home Antenna
If the cable coming from your antenna is a round coaxial cable that carries both VHF and UHF signals,
connect it to your set like this:
*Optional accessory available from your local GE dealer or electronic supply store
EXT. ANT.
From Home
Antenna
VHF and UHF
Antenna Adapter*
(such as RCA #189268)
Insert Plug In TV’s
Jack Labeled
EXT. ANT .
EXT. ANT.
From Home Antenna
or Cable-TV System
VHF or Cable
Antenna Adapter*
(such as RCA #189268)
Insert Plug In TV’s
Jack Labeled
EXT. ANT .
From Home
Antenna
UHF
VHF
Adapter*
(such as RCA #AH058)
Insert Plug In TV’s
Jack Labeled
EXT. ANT .
EXT. ANT.
EXT. ANT.
Insert Plug In TV’s
Jack Labeled
EXT. ANT .
Antenna Adapter*
(such as #195400)
VHF and/or UHF
From Home
Antenna
