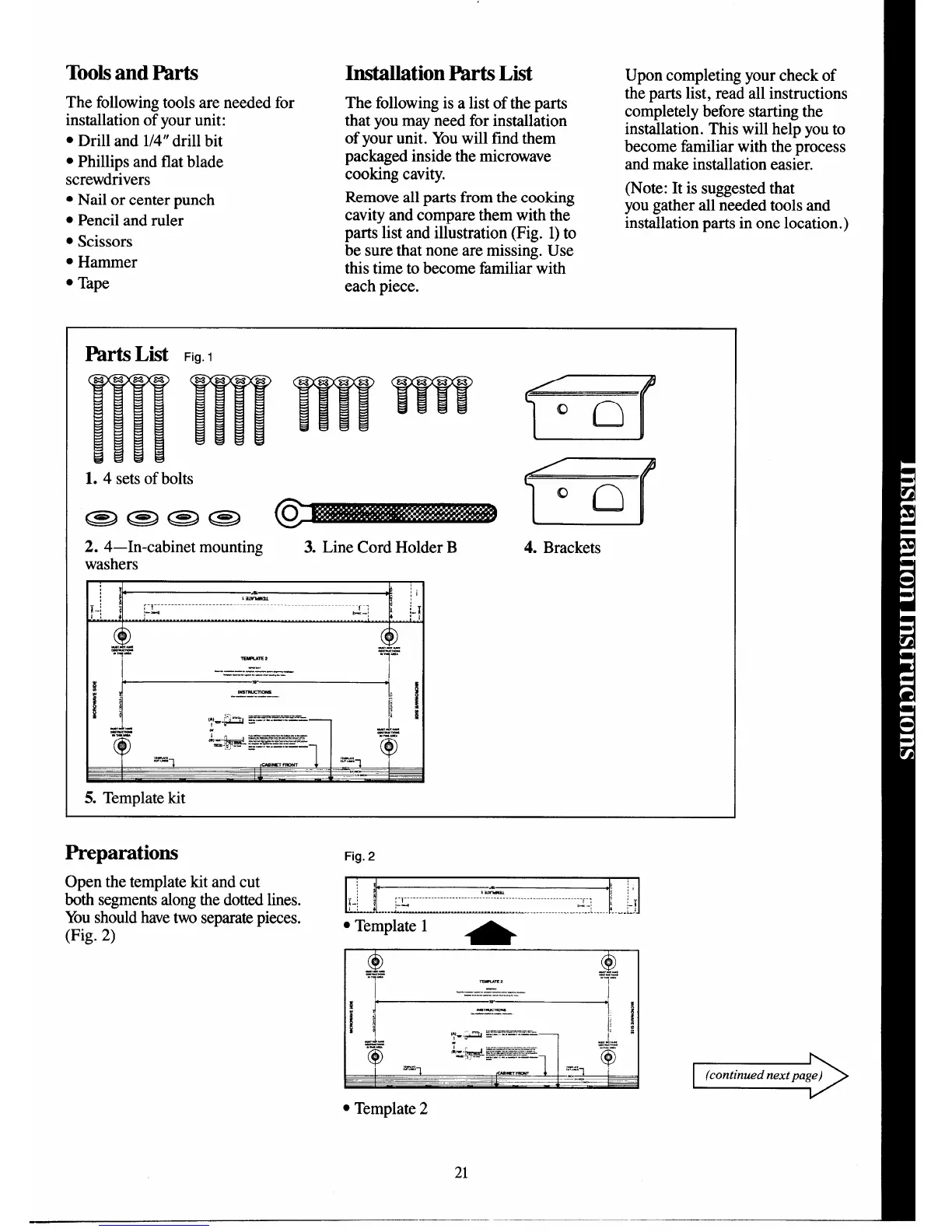

ToolsandParts
The following tools are needed for
installation of your unit:
● Drill and 1/4”drill bit
● Phillips and flat blade
screwdrivers
● Nail or center punch
● Pencil and ruler
● Scissors
● Hammer
● Tape
Installation Parts List
The following is a list of the parts
that you may need for installation
of your unit. Youwill find them
packaged inside the microwave
cooking cavity.
Remove all parts from the cooking
cavity and compare them with the
parts list and illustration (Fig. 1)to
be sure that none are missing. Use
this time to become familiar with
each piece.
Upon completing your check of
the parts list, read all instructions
completely before starting the
installation. This will help you to
become familiar with the process
and make installation easier.
(Note: It is suggested that
you gather all needed tools and
installation parts in one location.)
2. 4—In-cabinet mounting
3. Line Cord Holder B 4. Brackets
washers
1
-“.!
..——.——. -—
. . . . . . . . . . .
I
5. Template kit
Preparations
Fig. 2
Open the template kit and cut
:!
● b
both segmentsalongthe dotted lines.
,! $
-------”------”---”--~;~ ~_]
!,
TJ j
Youshould havetwo separatepieces.
---- —------.--................. ...-.._.d
(Fig. 2)
s Template 1
21
To Next Page
