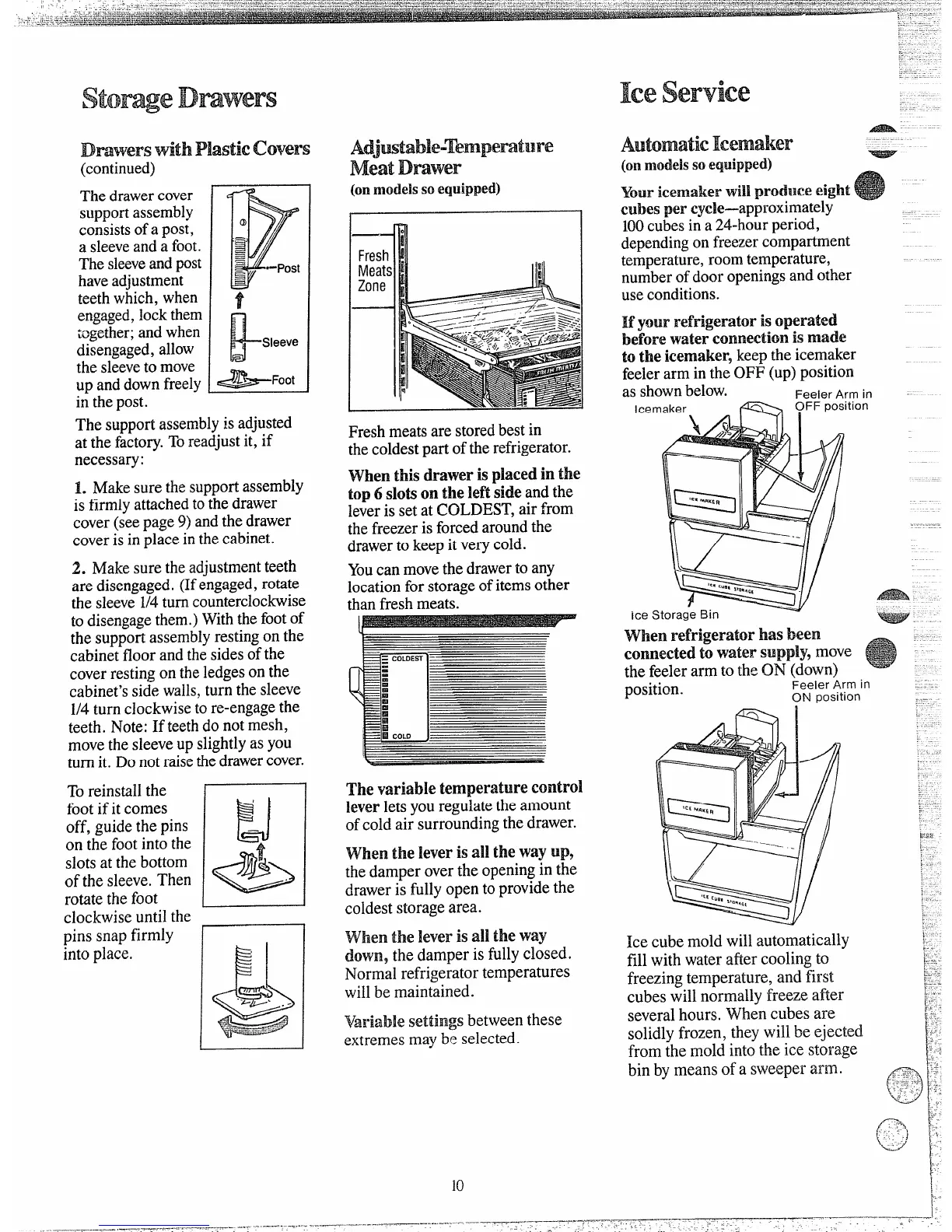

GE TBX17 - Page 10

Drawers Cmw”s
(continued)
The drawercover
supportassembly
consistsofa post,
a sleeveand a foot.
The sleeveandpost
haveadjustment
teeth which, when
engaged,lockthem
together;and when
disengaged,allow
the sleeveto move
up anddown freely
in the post.
The supportassemblyis adjusted
at the factory.Toreadjustit, if
necessary:
1. Make sure the supportassembly
is firmly attachedtothe drawer
cover (seepage 9) and the drawer
coveris in place in thecabinet.
2. Make sure the adjustmentteeth
are disengaged.(If engaged,rotate
the sleeve1/4turncounterclockwise
to disengagethem.) Withthefootof
the supportassemblyresting on the
cabinet floor and the sidesofthe
cover resting on the ledgeson the
cabinet’sside walls,turn the sleeve
1/4turn clockwise tore-engage the
teeth. Note: If teeth do not mesh,
movethe sleeveup slightlyas you
turn it. Do notraisethedrawercover.
To reinstall the
foot ifit comes
off, guide the pins
D
u
—
on the footinto the
slots at the bottom
t
*
.
of the sleeve. Then
/’
rotate the foot
clockwise until the
pins snap firmly
into place.
Meat
rnodek equipped)
I
Fresh meatsare storedbest in
thecoldestpart ofthe refrigerator.
When this draweris placedin the
top 6 slotson the leftside and the
leveris set at COLDEST, air from
the freezer is forced around the
drawerto keep itvery cold.
Youcan movethe drawerto any
locationfor storageofitemsother
than fresh meats.
The variable
t control
lever lets you regulate the amount
of cold air surroundingthe drawer.
When the kver
i all the way up,
the damper overthe opening in the
drawer is fully open to provide the
coldest storage area.
when. the kver is
a t way
down, the damper is fullyclosed.
Normal refrigerator temperatures
will be maintained.
Variable settings between these
extremes may be selected.
h-x
W@pped)
--
Yom-!iCemakek-willpmhm eight
cubes per cycl-—-app~~ximately –
100cubesin a 24-hourperiod,
dependingon freezer compartment
temperature,roomtemperature,
numberof door openingsand other
use conditions.
If your refrigeratoris operated
beforewaterconnectionis made
to the icemaker,keepthe icemaker
feeler arm in the OFF (up) position
as shownbelow.
Feeler Arm in
W .
S Bin
‘$f%xw
When r has b~~~
connected t water supply? move
the feeler arm to the ON (down)
position.
Feeler Arm in
ON position
—
Ice cube mold will automatically
:.
fill with water after cooling to
:..
.
,L,:.”
freezing temperature, and first
~.
.
~.
?.-
,
cubes will normally freeze after
.
!:..,
.
[“
:
several hours. When cubes are
f;
:
solidly frozen, they will be ejected
~,;
from the mold into the ice storage
~:;
.
bin by means of a sweeper arm.
