GE Vivid i Technical Publication

Site Preparations
3-24 Ultrasound System – Common Service Information
Direction 5444964-100 English
Rev. 5
Required facility needs (continued)

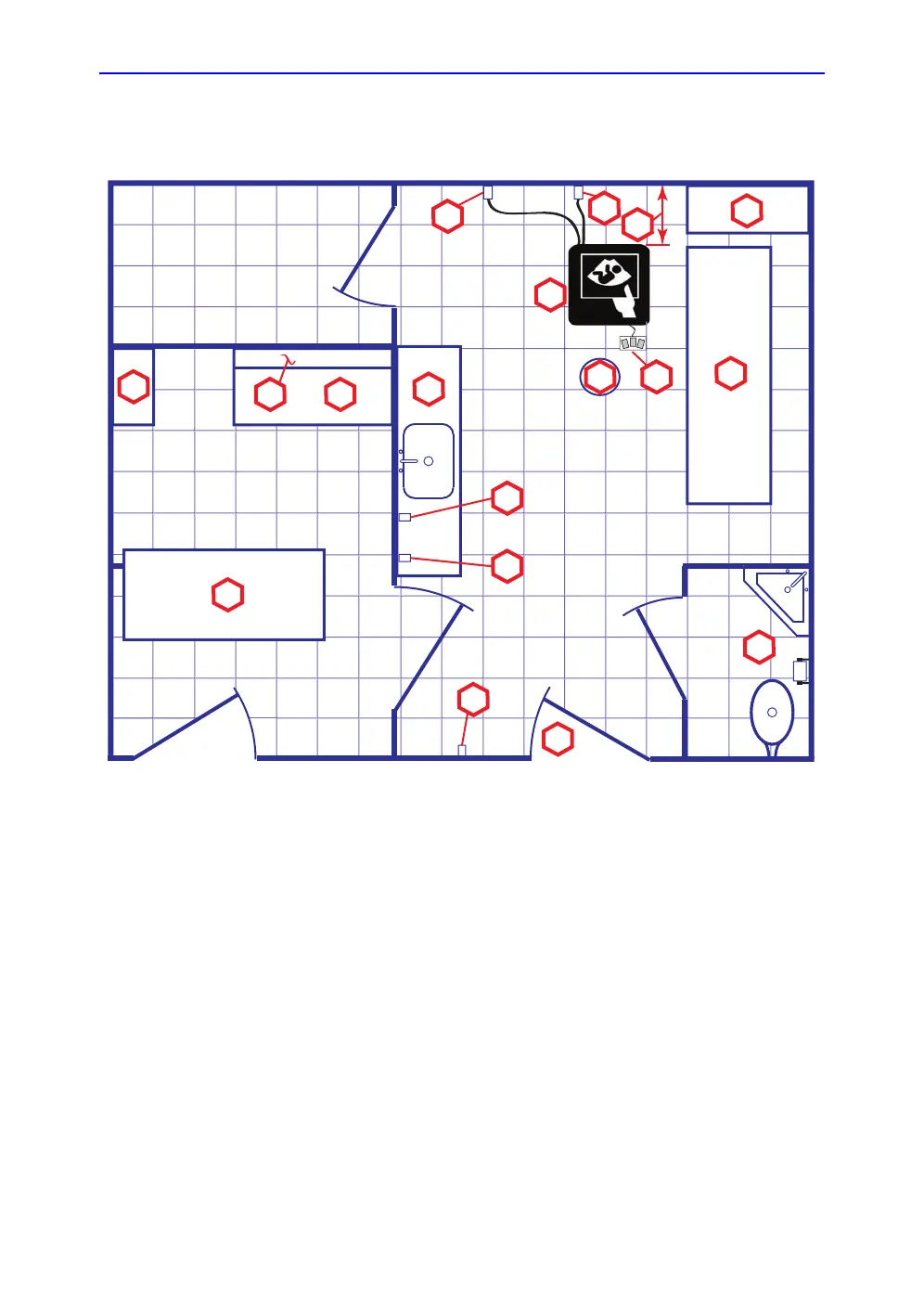

Figure 3-2. Recommended floor plan, 4.27 x 5.18 m (14 x 17 foot)
Scale: Each square equal one square foot (app. 31 x 31 cm)
1. Secretaries or Doctors Desk
2. File Cabinet
3. Film Viewer
4. Counter Top
5. Counter Top and Sink with
hot and cold water
6. Overhead Lights Dimmer -
Dual Level Lighting (bright
and dim)
7. Emergency Oxygen
8. Suction Line
9. Ultrasound system
10. Dedicated Power Outlet -
Circuit Breaker protected and
easily accessible
11. Network Interface
12. 457 mm (18 inches) distance
of Ultrasound system from
wall or objects
13. Stool
14. Footswitch
15. Storage for Linens and
Equipment
16. Examination Table – 1930 x
610 mm (76 x 24 inches)
17. Lavatory and Dressing Room
18. Door – at least 762 mm (30
inches)
4
1
2
18
5
6
9
16
17
15
8
7
10
11
12
3
13 14

GE Vivid i Specifications

General

Type	Portable Ultrasound System
Transducer Ports	2 active ports
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Imaging Modes	2D, M-Mode
Connectivity	DICOM, Ethernet, USB
Applications	Vascular, Abdominal
Weight	Approximately 5.5 kg (12.1 lbs)
Battery Life	Up to 1 hour (depending on usage)
Probes	Phased array, Linear array, Convex array
