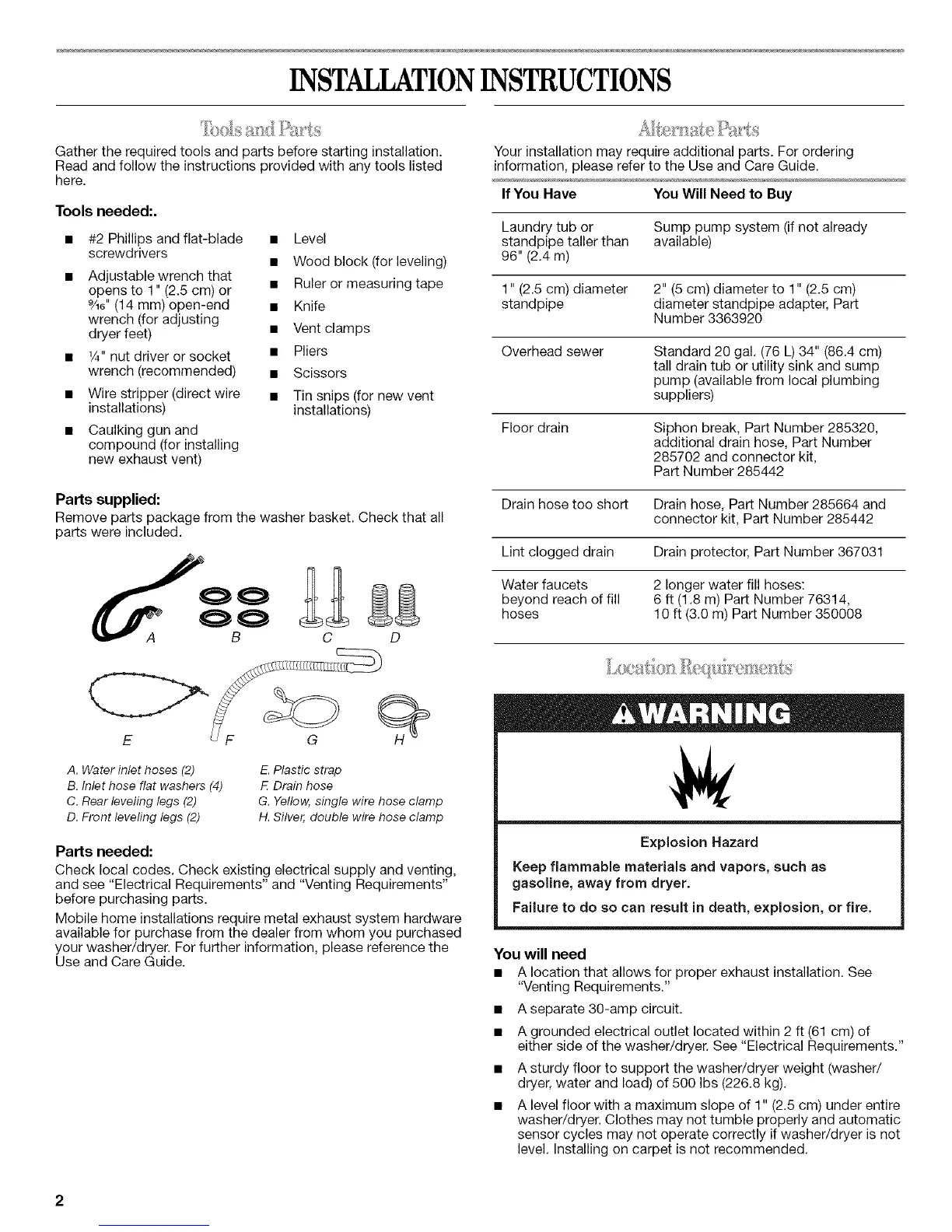

INSTALLATIONINSTRUCTIONS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed:.
#2 Phillips and flat-blade
screwdrivers
Adjustable wrench that
opens to 1" (2.5 cm) or
9/16"(14 mm) open-end
wrench (for adjusting
dryer feet)
1/4"nut driver or socket
wrench (recommended)
Wire stripper (direct wire
installations)
Caulking gun and
compound (for installing
new exhaust vent)
• Level
• Wood block (for leveling)
• Ruler or measuring tape
• Knife
• Vent clamps
• Pliers
• Scissors
• Tin snips (for new vent
installations)
Parts supplied:
Remove parts package from the washer basket. Check that all
parts were included.
A C D
Your installation may require additional parts. For ordering
information, please refer to the Use and Care Guide.
If You Have You Will Need to Buy
Laundry tub or Sump pump system (if not already
standpipe taller than available)
96" (2.4 m)
1" (2.5 cm) diameter 2" (5 cm) diameter to 1" (2.5 cm)
standpipe diameter standpipe adapter, Part
Number 3363920
Overhead sewer Standard 20 gal. (76 L) 34" (86.4 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part Number 285320,
additional drain hose, Part Number
285702 and connector kit,
Part Number 285442
Drain hose too short Drain hose, Part Number 285664 and
connector kit, Part Number 285442
Lint clogged drain Drain protector, Part Number 367031
Water faucets 2 longer water fill hoses:
beyond reach of fill 6 ft (1.8 m) Part Number 76314,
hoses 10 ft (3.0 m) Part Number 350008
E
F G
A. Water inlet hoses (2)
B. Inlet hose flat washers (4)
C. Rear leveling legs (2)
D. Front leveling legs (2)
E. Plastic strap
F Drain hose
G. Yellow, single wire hose clamp
H. Silver, double wire hose clamp
Parts needed:
Check local codes. Check existing electrical supply and venting,
and see "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your washer/dryer. For further information, please reference the
Use and Care Guide.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Failure to do so can result in death, explosion, or fire.
You will need
• A location that allows for proper exhaust installation. See
"Venting Requirements."
• Aseparate30-amp circuit.
• A grounded electrical outlet located within 2 ft (61 cm) of
either side of the washer/dryer. See "Electrical Requirements."
• A sturdy floor to support the washer/dryer weight (washer/
dryer, water and load) of 500 Ibs (226.8 kg).
• A level floor with a maximum slope of 1" (2.5 cm) under entire
washer/dryer. Clothes may not tumble properly and automatic
sensor cycles may not operate correctly if washer/dryer is not
level. Installing on carpet is not recommended.
