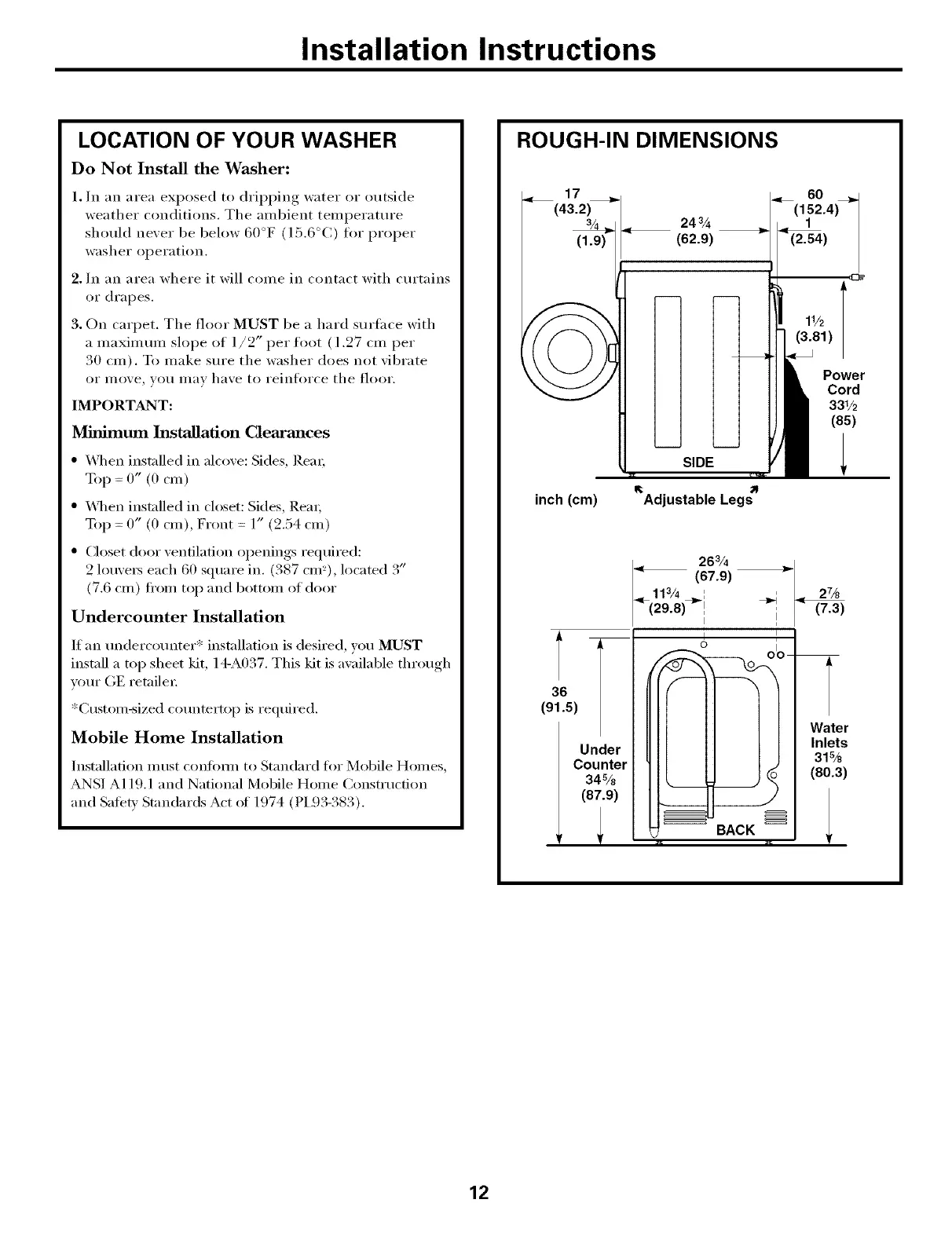

Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1. In an area exposed to dripping water or outside
weather conditions, The ambient teml)erature
should never be below 60°F (] 5.6°(;) fin" proper
washer ol)eration.
2. In an area where it will come in contact with curtains
or drapes,
3, On carpet, The floor MUST be a hard surface with
a maximmn slope of l/2" per foot (1.27 cm per
30 cm). To make sm'e the washer does not vibrate
or illove, yO/I Ill}IV have to reinforce tile floor.
IMPORTANT:
Minimum Installation Clearances
" _4]/en installed in alcove: Sides, Rein;
Top : 0" (0 cm)
" _]_en installed in closet: Sides, Rein;
Top = 0" (0 cm), Front = 1" (2.54 cm)
" Closet door ventilation openings required:
2 lou\'e_ each 60 square in. (387 cm_), located 3"
(7.6 cm) fl'om top and bottom of door
Undercounter Installation
If an tmderco/mter* installation is desired, )ou MUST
install a top sheet kit, 14-A037. This kit is axailable through
your (;E retaile_;
*Custom-sized countertop is required.
Mobile Home Installation
Installation must confimn to Standard for Mobile Homes,
ANSI A119.1 and National Mobile Honle Construction
and Safety Standards Act of 1974 (PI,93-383).
ROUGH-IN DIMENSIONS
17
(43.2) ,_
3A 24%
(62.9)
I (11s24
Power
Cord
33V2
(85)
SIDE
inch (cm) Adjustable Legs
36
(91.5)
Under
Counter
34%
(87.9)
2_
(7.3)
Water
Inlets
31%
(80.3)
12
To Next Page
