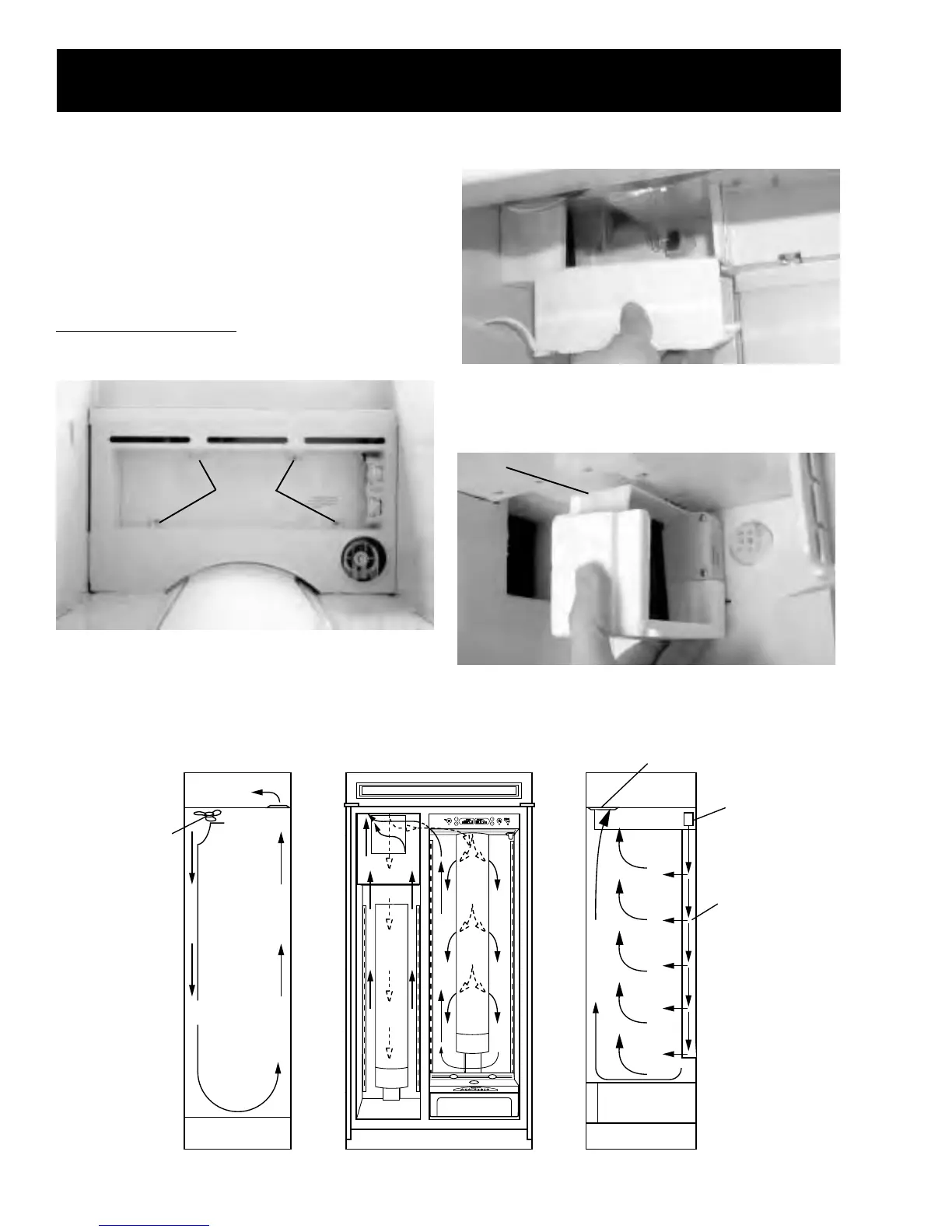

Damper
The fresh food compartment receives chilled air
via an electronic damper that is positioned at the
top rear of the fresh food compartment. The
damper is controlled by the main control board and
when open, allows the evaporator fan to push
chilled air from the evaporator into the fresh food
compartment.
To Remove the Damper
1. Remove the light cover.
Airflow
3. Remove the Styrofoam section covering the
damper.
4. Disconnect the damper wiring connector.
5. Carefully pull the damper out of the mullion and
remove.
2. Remove 4 Phillips screws and the light
assembly.
GEA01269
Top
BottomFreezer Side Fresh Food Side
Return
Evaporator
Front FrontBack Back
Damper
Air
Tower
Evap.
Fan
Damper
Screws
To Next Page
