Electrical Connection To Spa
WARNING - Secure wires as defined by the NEC and in compliance with any local codes in
e!ect at the time of installation. ALL SPAS ARE FACTORY CONFIGURED FOR 240 VOLT IN-
STALLATIONS. DO NOT CHANGE ANY WIRING INSIDE OF THE SPA PACK.

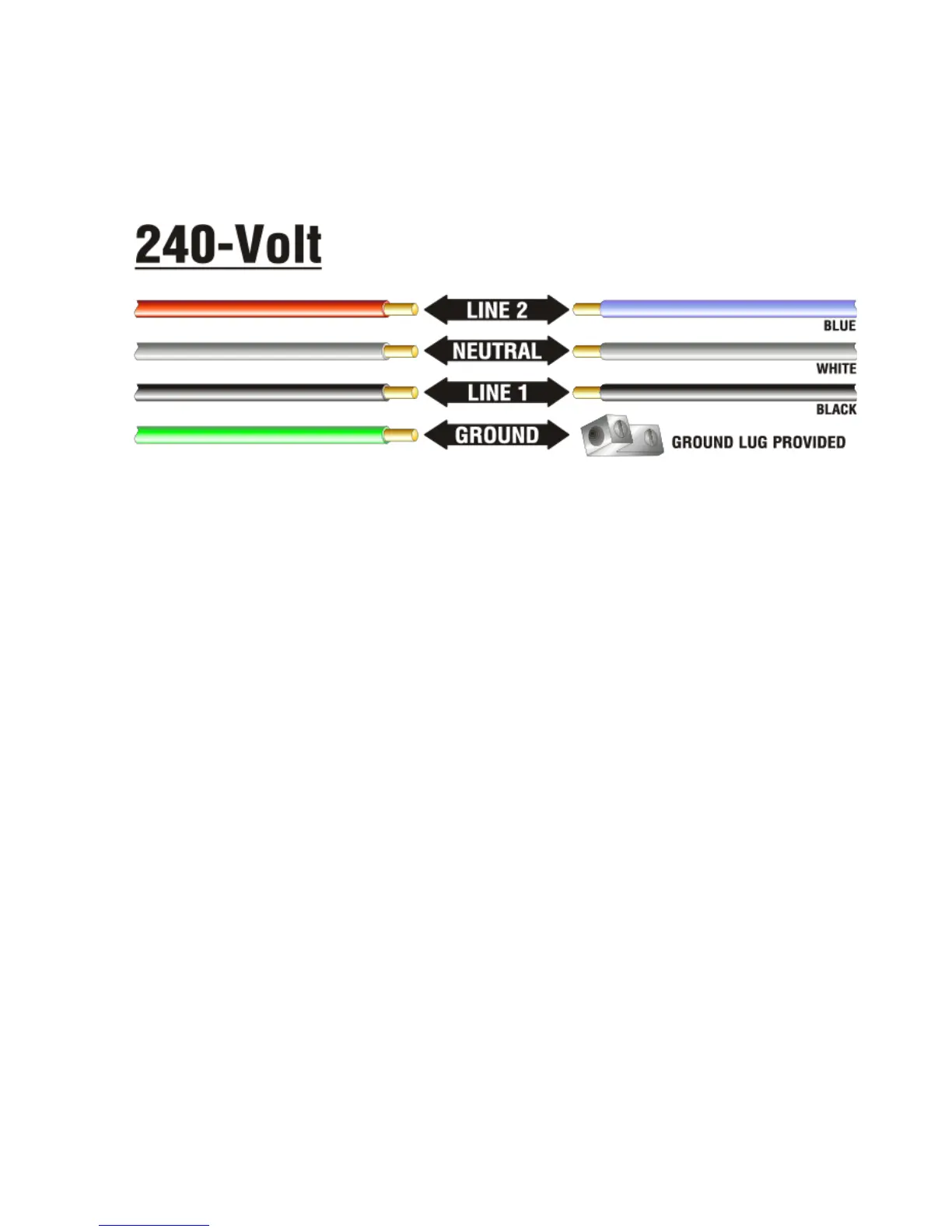

• Connect Line 2 to Blue Wire
• Connect input Neutral to White Wire
• Connect Line 1 to Black Wire
• Connect Ground to Ground Lug provided inside control box
• Connect Bonding wires to bonding lugs inside the spa
