gefran 2400 Guide To Configuration And Network Installation

80018C_MSW_2400-2500-Profibus_1209_ENG
Page 23

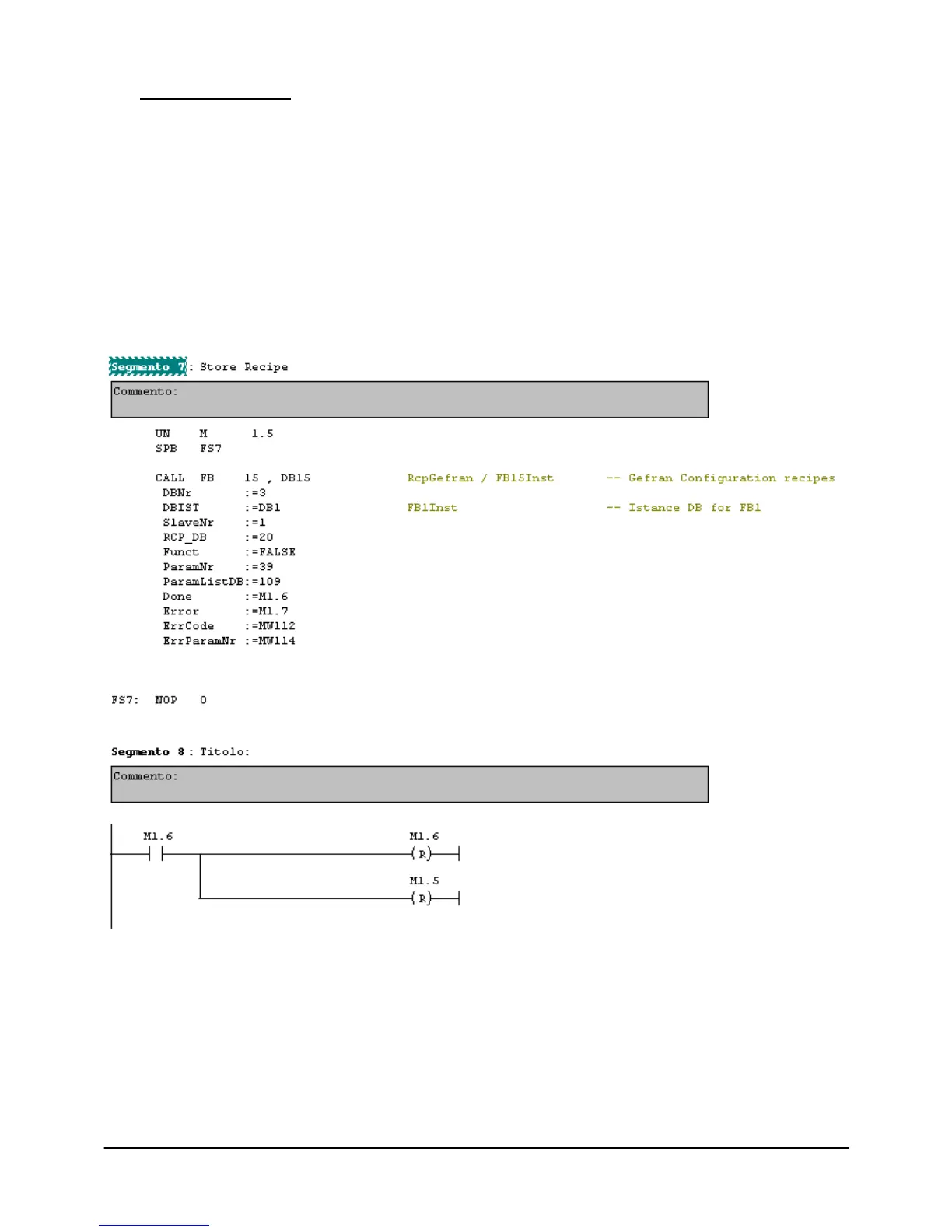

5.3.5 FB15 “RCP GEFRAN”
The FB15 function block saves or writes a pre-definded parameter set.
FB15 nees an istance DB.
It must be called up only upon request and kept active until the operation is completed. It is tipically set on a Bit that
enables the branch and that is reset with the “Job done” flag.
In the FB15 it is request to set, apart from the instrument system DB (the one assigned with FC3 or FC4) also the
istance DV used for the FB1 “OPGefran” of the interested instrument.
In case of error the function is interrupted even if it is not complete and the Error bit is set. In the Output parameters
“ErrorCode” and “ErrorParamNr” it is possible to find the error code and the address of the 2500 that caused it
(always 1).
