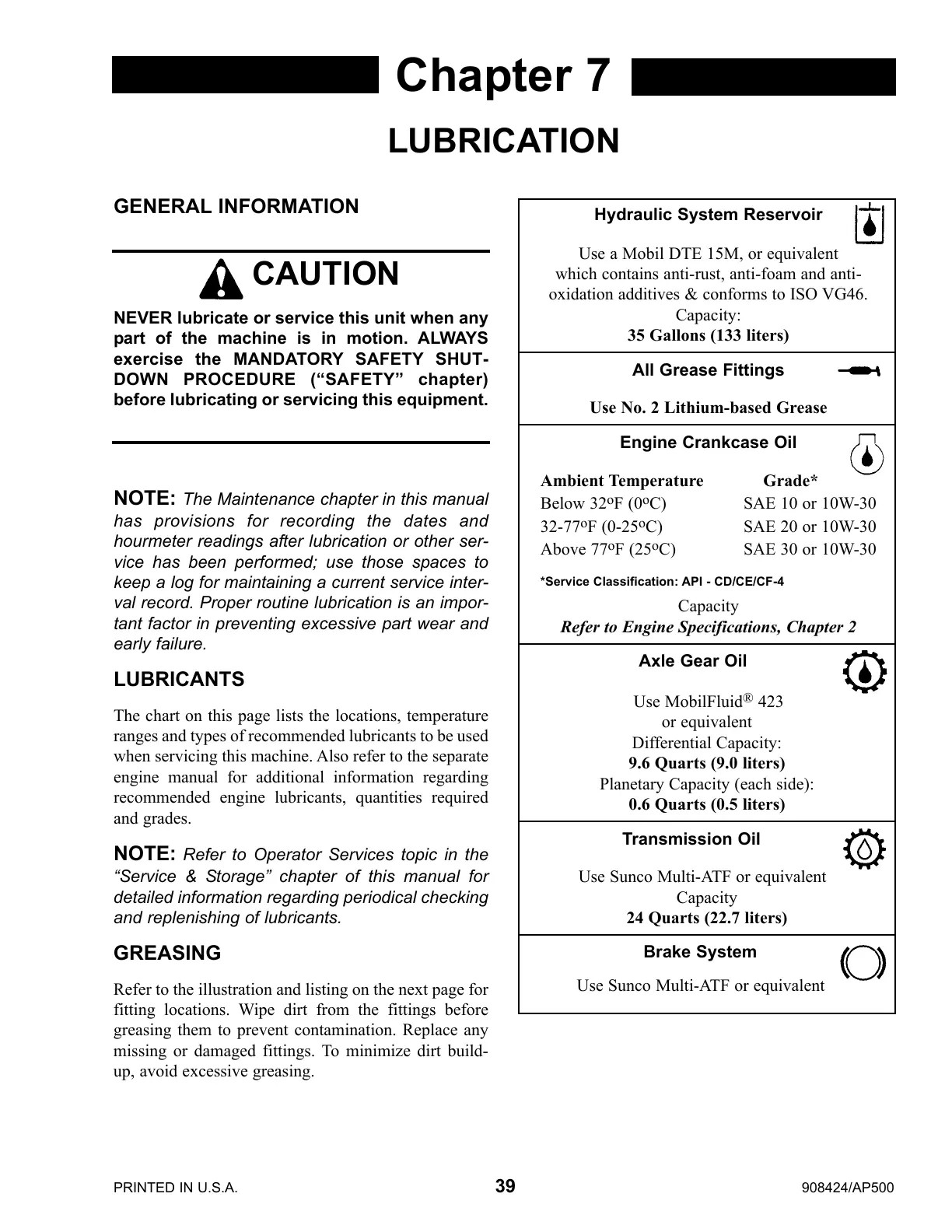

PRINTED IN U.S.A. 39 908424/AP500
GENERAL INFORMATION
NOTE: The Maintenance chapter in this manual
has provisions for recording the dates and
hourmeter readings after lubrication or other ser-
vice has been performed; use those spaces to
keep a log for maintaining a current service inter-
val record. Proper routine lubrication is an impor-
tant factor in preventing excessive part wear and
early failure.
LUBRICANTS
The chart on this page lists the locations, temperature
ranges and types of recommended lubricants to be used
when servicing this machine. Also refer to the separate
engine manual for additional information regarding
recommended engine lubricants, quantities required
and grades.
NOTE: Refer to Operator Services topic in the
“Service & Storage” chapter of this manual for
detailed information regarding periodical checking
and replenishing of lubricants.
GREASING
Refer to the illustration and listing on the next page for
fitting locations. Wipe dirt from the fittings before
greasing them to prevent contamination. Replace any
missing or damaged fittings. To minimize dirt build-
up, avoid excessive greasing.
Chapter 7
LUBRICATION
CAUTION
NEVER lubricate or service this unit when any
part of the machine is in motion. ALWAYS
exercise the MANDATORY SAFETY SHUT-
DOWN PROCEDURE (“SAFETY” chapter)
before lubricating or servicing this equipment.
Hydraulic System Reservoir
Use a Mobil DTE 15M, or equivalent
which contains anti-rust, anti-foam and anti-
oxidation additives & conforms to ISO VG46.
Capacity:
35 Gallons (133 liters)
All Grease Fittings
Use No. 2 Lithium-based Grease
Engine Crankcase Oil
Ambient Temperature Grade*
Below 32
o
F (0
o
C) SAE 10 or 10W-30
32-77
o
F (0-25
o
C) SAE 20 or 10W-30
Above 77
o
F (25
o
C) SAE 30 or 10W-30
*Service Classification: API - CD/CE/CF-4
Capacity
Refer to Engine Specifications, Chapter 2
Axle Gear Oil
Use MobilFluid
®
423
or equivalent
Differential Capacity:
9.6 Quarts (9.0 liters)
Planetary Capacity (each side):
0.6 Quarts (0.5 liters)
Transmission Oil
Use Sunco Multi-ATF or equivalent
Capacity
24 Quarts (22.7 liters)
Brake System
Use Sunco Multi-ATF or equivalent
