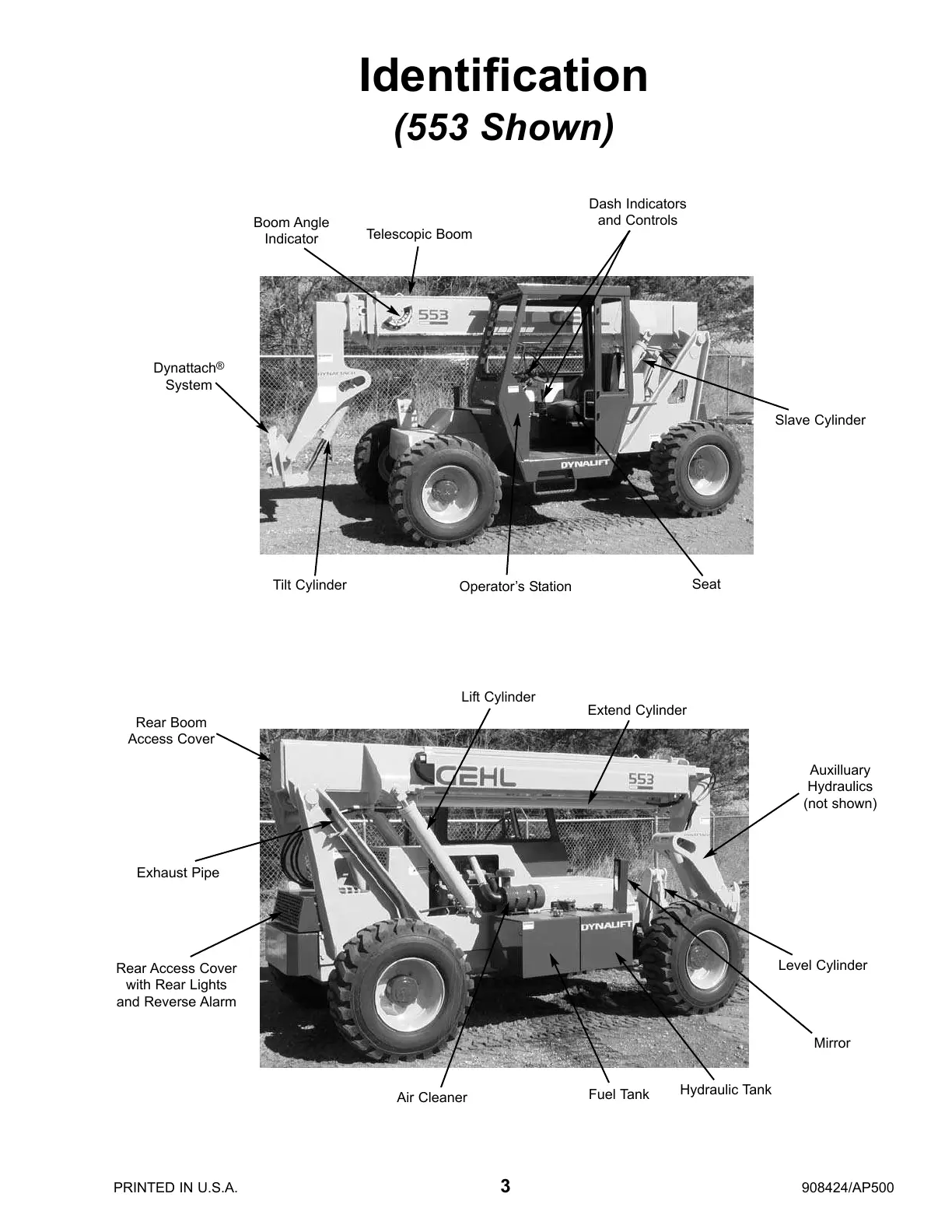

Identification
(553 Shown)
PRINTED IN U.S.A. 3 908424/AP500
Telescopic Boom
Operator’s Station
Dynattach
®
System
Tilt Cylinder
Slave Cylinder
Dash Indicators
and Controls
Seat
Fuel Tank
Rear Access Cover
with Rear Lights
and Reverse Alarm
Rear Boom
Access Cover
Lift Cylinder
Level Cylinder
Hydraulic Tank
Extend Cylinder
Air Cleaner
Exhaust Pipe
Auxilluary
Hydraulics
(not shown)
Boom Angle
Indicator
Mirror
