913218/CP0307 64 PRINTED IN U.S.A.
REF. DESCRIPTION RS8-44 RS8-42 RS6-42
NO. PART NO. PART NO. PART NO.
01 WARNING-TILT HAZZARD/GENERAL OPERATOR L70306 L70306 L70306
02 WARNING - CARRY LOAD LOW L65926 L65926 L65926
03 F-N-R SHIFT L68295 L68295 L68295
04 STEERING WHEEL 2.0” DIA. (early models only) 101545 101545 101545
05 MADE IN USA 140516 140516 140516
06 WARNING - PARK BRAKE/SEAT BELT 101506 101506 101506
07 STANDARD CARRIAGE LOAD CHART 102795 102918 102790
ROTATING CARRIAGE LOAD CHART 102796 102919 102791
BUCKET LOAD CHART 102797 102920 102792
TRUSS BOOM LOAD CHART 102798 102921 102793
WINCH LOAD CHART 102799 102922 102794
SWING CARRIAGE LOAD CHART 102806 102923 NA
180° SWING CARRIAGE 103770 103769 103768
08 ATTACHMENT TILT/FRAME LEVEL L63632 L63632 L63632
09 BOOM CONTROL L63631 L63631 L63631
10 OUTRIGGER CONTROL (Optional) 101658 101658 101658
11 AUXILIARY HYDRAULIC CONTROL (Optional) 102718 102718 102718
12 IGNITION/START/HORN 102717 102717 102717
13 DANGER-HI VOLT./MOVING PARTS L70307 L70307 L70307
14 JOYSTICK CONTROL 104215 104215 104215
15 FRAME LEVEL L63311 L63311 L63311

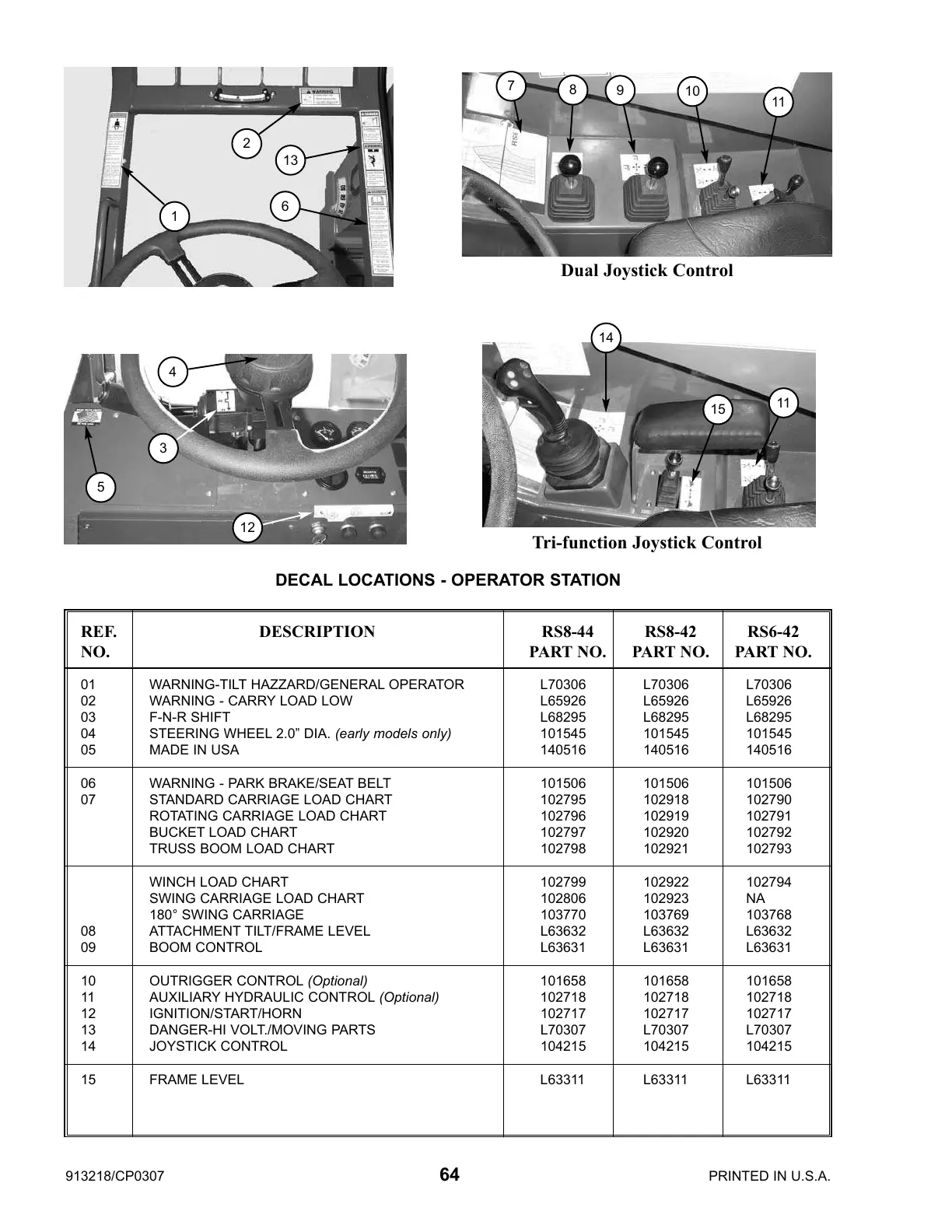

DECAL LOCATIONS - OPERATOR STATION
6
1
7
8
9
10
11
2
13
3
5
4
12
11
15
14
Tri-function Joystick Control
Dual Joystick Control
