of installa tion must be at least 1.5 m above the floor.
If the apparatus is equipped without a pin and a socket connector (STAS3K)
in the connecting lead, or other means for disconnecting from the mains
with at least a 3 mm contact opening on each pole, a disconnecting device
of this type must be incorporated into the permanently installed electrical
installation according to the wiring rules.
f Permanently installed control devices must be attached visibly.
f The correct dimensioning of the drive is to be observed.
f The rated sound pressure level is less than 70 dB(A).
4. Intended use
The motors of the model range GJ56.. with mechanical end stop are designed
exclusively for the operation of Venetian blinds and exterior blinds.
If the motors are used for other applications and/or modifications are performed
to the motors, which have not been discussed with GEIGER Antriebstechnik, then
the manufacturer is not liable for personal injury and/or damage to property and for
consequential damage.
5. Assembly note

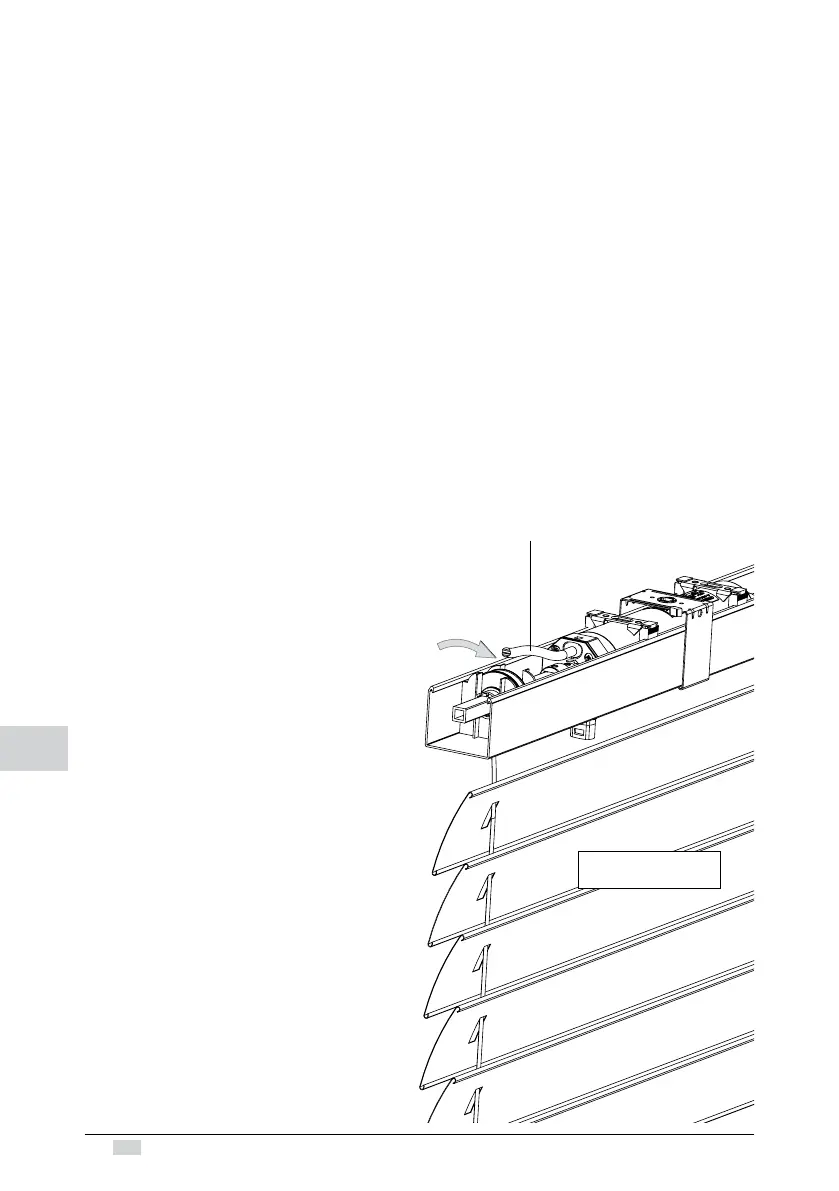

When viewed from inside the room, the power supply connection of the GJ56 is
located on the left side. The straps
are wound on the winding rollers
from the outside. The adjustment
buttons of the limit stop control
device and the limit stop switch
must point downward.
The GJ56 which is set to the lower
end position when it leaves the
factory, is installed in the fully
lowered Venetian blind. Thus,
adjusting the lower end position
is not required. The GJ56 must
be installed in alignment with the
turning bars.
It is important that the GJ56.. is
installed centrally. Please make sure
that the load is evenly distributed.
Inclined installation:
The inclined installation is permitted
till 45° maximum to level. The limit
stop switch and the adjustment
buttons must point downward.
Electric mains
Inside the room
Direction
OPEN
