B.12345h Generator operating time in hours
(from 0 to 99999 h)
L1N= 230V Voltage of phase L1 with respect to neutral N
( 0 - 300V AC )
L2N= 231V Voltage of phase L2 with respect to neutral N
( 0 - 300V AC )
L3N= 232V Voltage of phase L2 with respect to neutral N
( 0 - 300V AC )
L12=400V Linear voltage L1-L2 ( 0 - 500V AC )
L23=401V Linear voltage L2-L3 ( 0 - 500V AC )
L31=402V Linear voltage L3-L1 ( 0 - 500V AC )
I1= 10,0A Current of phase L1 ( 0- 32,0 A )
I2= 10,1A Current of phase L2 ( 0- 32,0 A )
I3= 10,2A Current of phase L3 ( 0- 32,0 A)
IG= 30,3A Total current of all phases L1, L2, L3
( 0- 99.9 A )
F=50,0Hz Frequency in Hz ( 0 - 99,9Hz )
1=2300VA Calculation with voltage L1 and current I1 gives the
total power of phase L1 in VA ( 0 - 9999 VA)
2=2333VA LCalculation with voltage L2 and current I2 gives the
total power of phase L2 in VA ( 0 - 9999 VA
3=2366VA Calculation with voltage L3 and current I3 gives the
total power of phase L3 in VA ( 0 - 9999 VA)
G 6999VA Total power of the generator in all phases (G) in VA
( 0 -9 999 VA)
1- 1000h Operating time remaining to the first maintenance;
i.e., after this time, the first maintenance must be car-
ried out
2- 500h Operating time remaining to the second maintenance;
i.e., after this time, the second maintenance must be
carried out

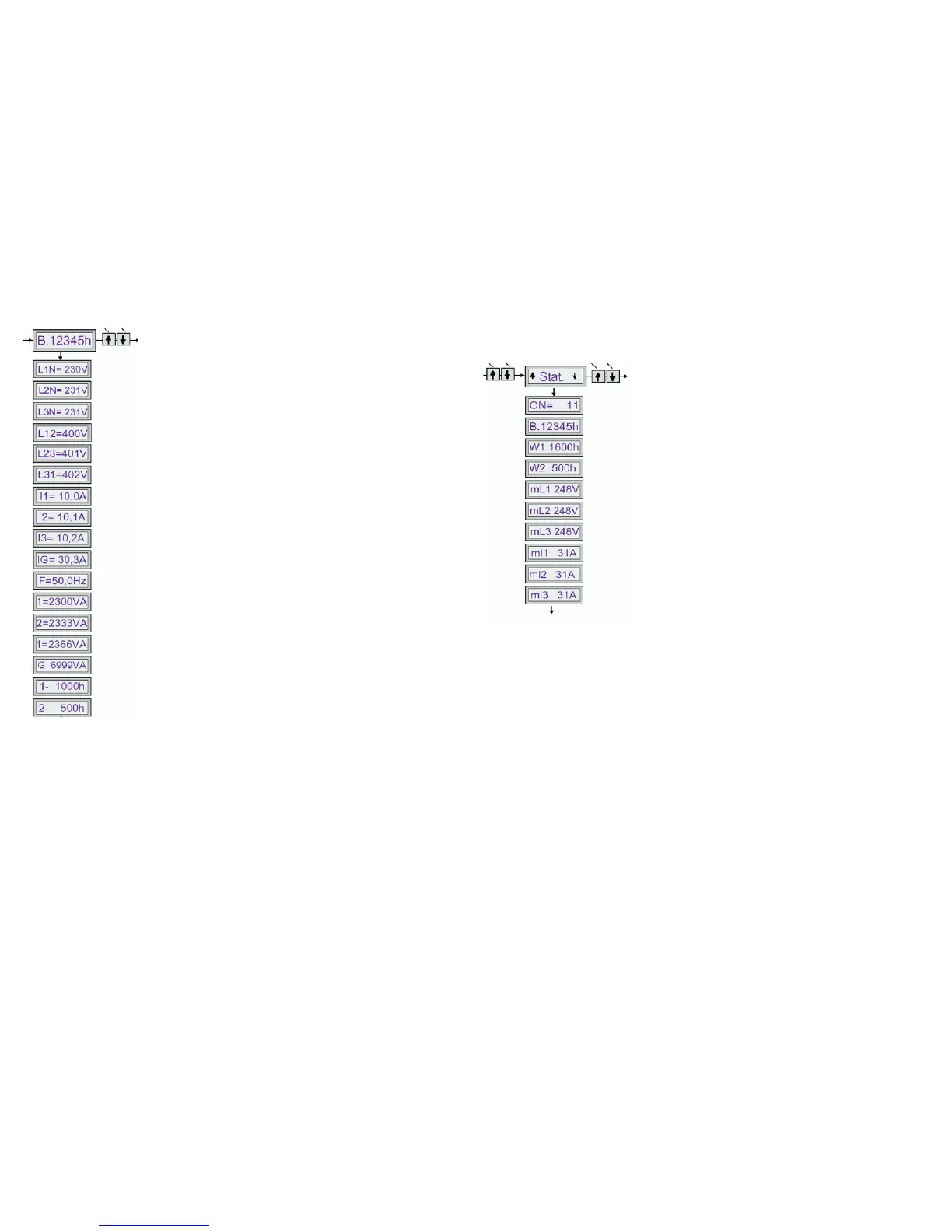

STATISTIK (Statistics) menu; here, the major parameters of the
system are stored and displayed
ON= 11 Number of starts of the plant
B.12345h Operating hours of the plant
W1 1600h Periodicity of the first maintenance (preset time
is displayed here)
W2 500h Periodicity of the second maintenance (preset
time is displayed here)
mL1 248V Maximum measured voltage of phase L1 of
the generator
mL2 248V Maximum measured voltage of phase L2 of
the generator
mL3 248V Maximum measured voltage of phase L3 of
the generator
mI1 31A Maximum measured current of phase L1 of the
generator
mI2 31A Maximum measured current of phase L2 of the
generator
mI3 31A Maximum measured current of phase L3 of the
generator
Uhrzeit (Date, time) menu
Current time 17 h 23 min
Indications automatically vary at the transition to winter/sum-
mer time. If it is necessary to change indications, it is possible
to select the necessary time counters by key „_“
The following menu item is selected by pressing key „up“
with pressed key „down“
