GEM 1441 cPos-X User Manual

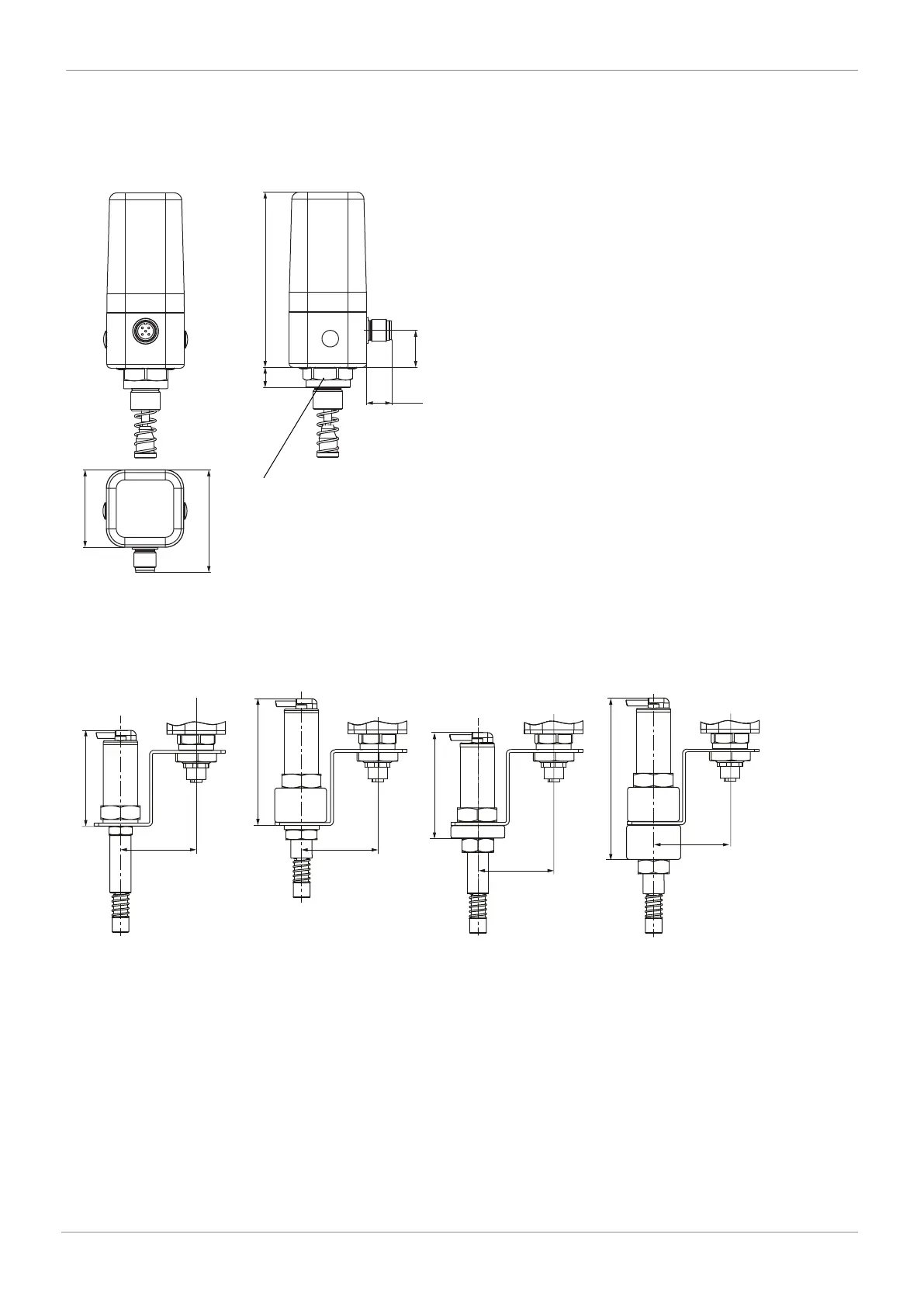

8 Dimensions
8.1 Direct mounting
8.1.1 Travel sensor version code 010/030
X 95
20
16,6
42
58,6
3
E
X1
3
X1
X1
WAF20 for mounting kit M12x1, x = 9 mm
WAF24 for mounting kit M16x1, x = 11 mm
Figure including mounting kit
Dimensions in mm
8.2 Direct mounting via mounting bracket
8.2.1 Travel sensor version code S01 + mounting kit 1444
54
54
109,9
133,6
54
91,2
54
86,2
1.
2. 4.
3.
Dimensions in mm
See mounting options – valve-specific GEMÜ 1444 000 Z… mounting kit
Version dependent on valve used
1. Normally closed valve, M16 adaption thread – standard
2. Normally closed valve, M16 adaption thread – special construction type for GEMÜ 9415
3. Normally closed valve, M22 adaption thread
4. Normally open or double acting valve, M16 or M22 adaption thread
www.gemu-group.com16 / 32GEMÜ 1434 µPos
8 Dimensions
