AS Series
AS-2108P / AS-2110P
AS-2112P / AS-2115P

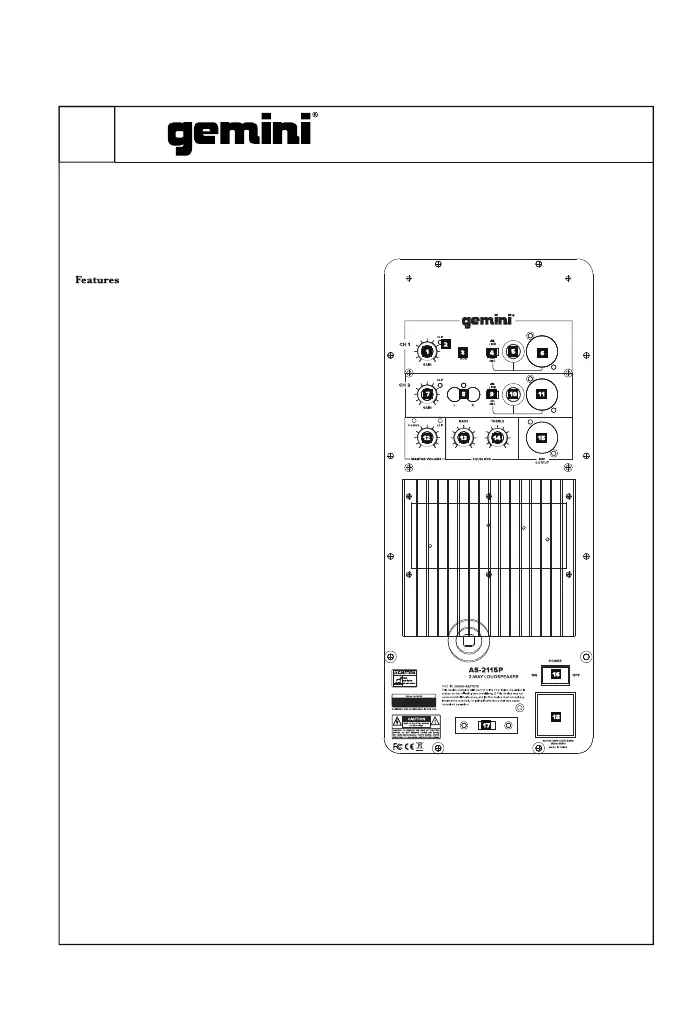

1. Channel 1 volume : Adjusts the loudness of the source
connected to CH1
2.
Clip LED: Indicates audio clipping.
3.
AUX input（TRS): Connect a digital media player,
etc. to this 1/8" stereo input.
4/9.
Mic/Line input switch: Allows user to choose
the MIC or Line signal input.
5/10.
Mic/Line input: Connect a microphone or line
signal to this 1/4" TRS input
6/11:
Mic/Line input: Connect a microphone or line
signal to this XLR input
7:
Channel 2 volume : Adjusts the loudness of the
source connected to CH2
8:
AUX Input (RCA) : Connect a CD player, mixer, or
other media source to this line level RCA input.
12:
Master volume : Adjust the loudness of the whole
system.
13:
Bass EQ: Controls the bass(low) frequencies of
speaker at a range between -12dB to + 12dB.
14:
Treble EQ: Controls the treble(high) frequencies of
speaker at a range between -12dB to + 12dB.
15:
Mix Out: Use this XLR output to create a wired
connection to another powered speaker, etc.
16:
Power ON/OFF Switch: Turns unit on or off.
17:
Voltage Switch : Allows user to change the AC
voltage input.
18：
AC Power Input: Mains power supply(supplied
with speaker) plugs in here.
