<4>

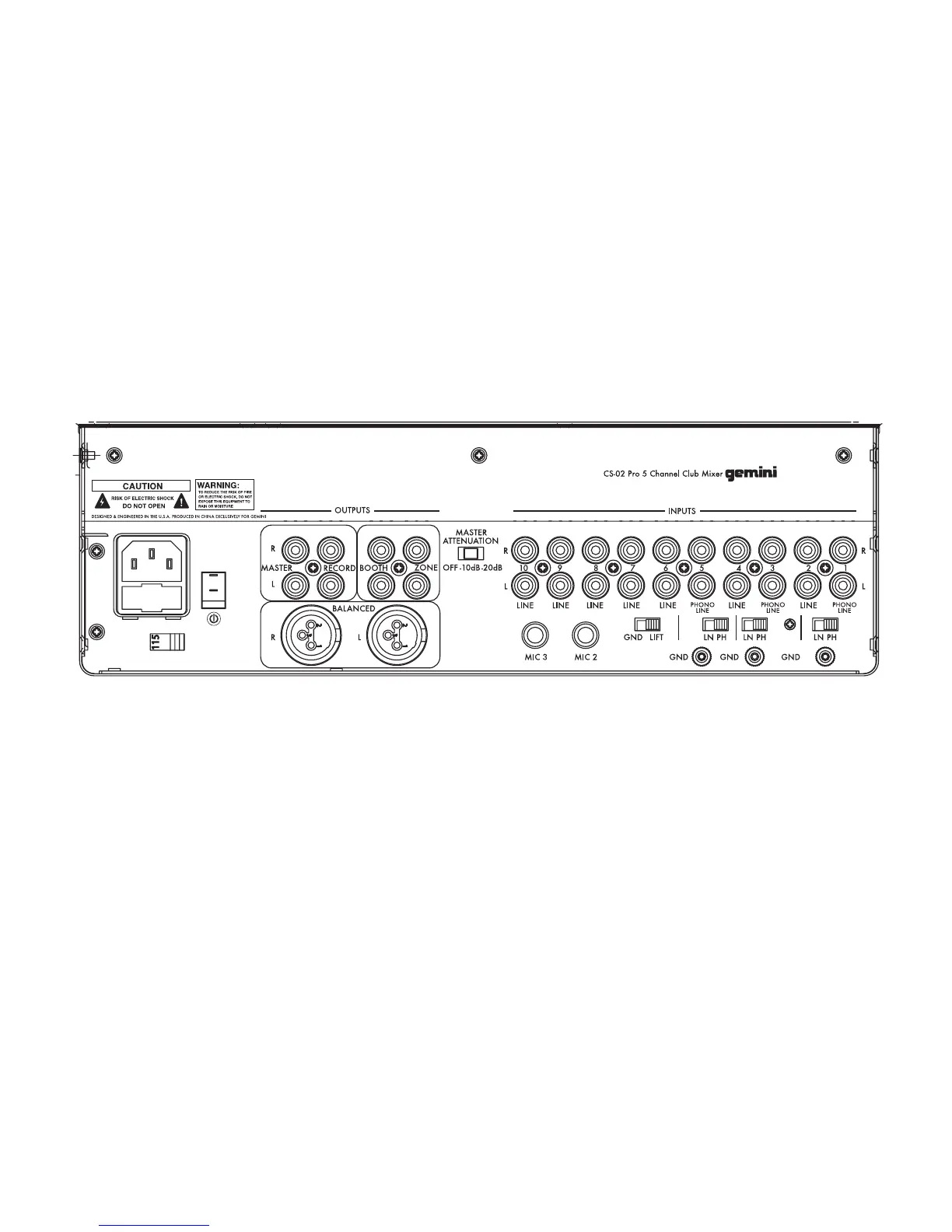

Rear
Input Section:
42. Phono/Line #1 RCA Input
43. Phono/Line #1 Selection Switch
44. Line #2 RCA Input
45. Phono/Line #3 RCA Input
46. Phono/Line #3 Selection Switch
47. Line #4 RCA Input
48. Phono/Line #5 RCA Input
49. Phono/Line #5 Selection Switch
50. Line #6 Input
51. Line #7 Input
52. Line #8 Input
53. Line #9 Input
54. Line #10 Input
55. Ground Terminals
56. Ground Lift Switch
57. Mic #2 1/4” Input
58. Mic #3 1/4” Input
Output Section:
59. Balanced XLR Master Outputs
60. Master RCA Outputs
61. Master Volume Attenuation Switch
62. Record RCA Outputs
63. Booth RCA Outputs
64. Zone RCA Outputs
Power Section:
65. AC Power Inlet w/Fuse
66. Voltage Selection Switch
67. Power Switch
424445
46
4748
50
51
52
53
54
59
60
65
66
67
61
62
63 64
55
56
57
58
49
43
