GEMMASTA GS10 - Page 5

MODEL GS10

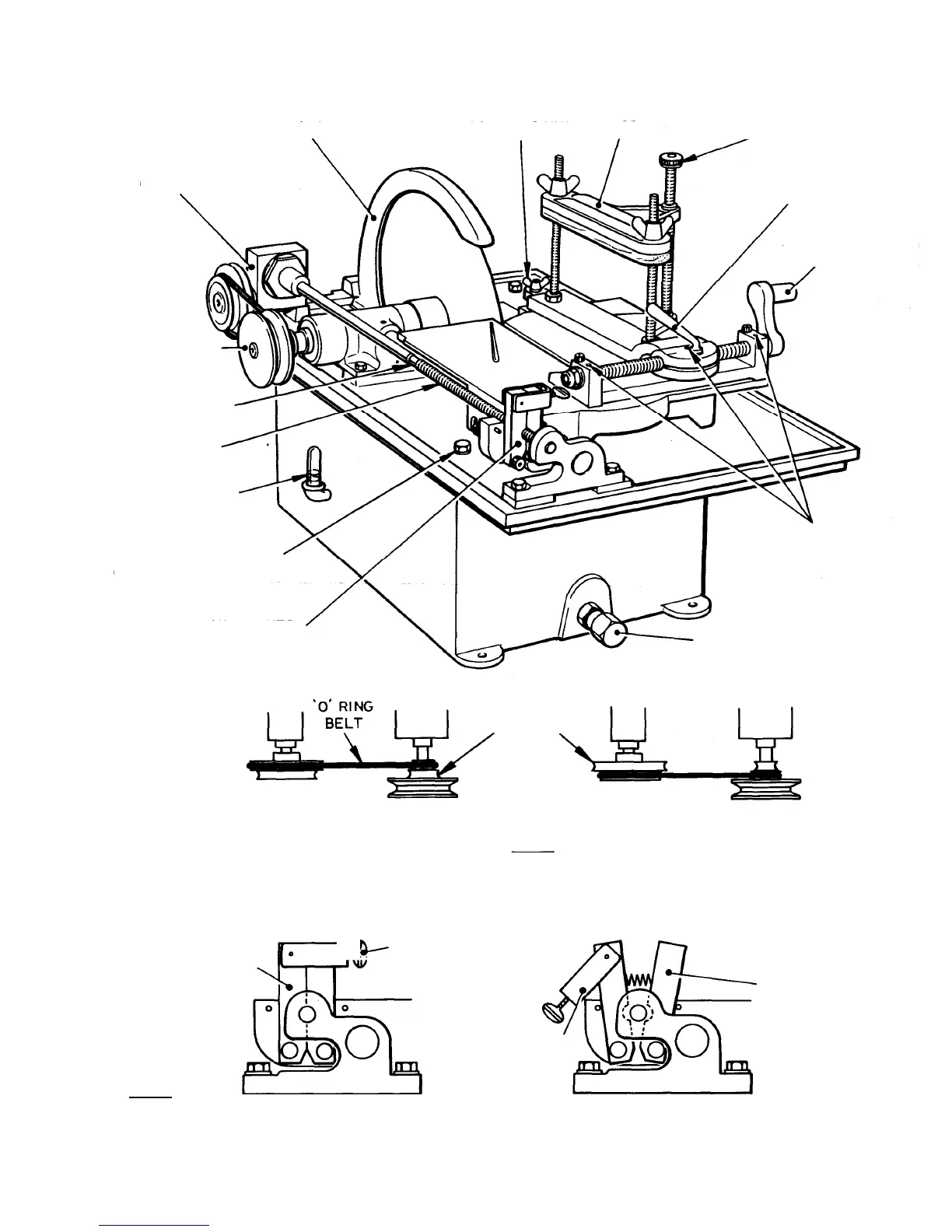

THE GEMMASTA 10" POWER FEED SAW
APPROX. WEIGHT 36 lbs. — 16 kg
ENGAGING CATCH
FRONT SCREW LEVER
GEAR BOX
MAIN SPINDLE
SPEED 1425 R.P.M.
SAFETY RELIEF
FOR HALF NUTS
LEAD SCREW
COOLANT LEVEL
HEXAGONAL SCREWS
FOR REMOVING TABLE
(4 OFF)
LUBRICATION HOLES
HALF NUTS
SEE FIGURE. 3
DRAIN (USE
15
'16 AF SPANNER)
LEVELLING SCREW
VICE
SAW GUARD
BACK WING
-
NUT
SLAB THICKNESS
SCREW HANDLE
RATE OF FEED
1
/4" PER MIN.
RATE OF FEED
3
/8" PER MIN.
FIG.1
FEED
PULLEYS
FIG.2
ENGAGE HALF NUTS
TO FEED BEFORE
STARTING MACHINE
LOCKING SCREW
MUST BE DONE
UP TIGHT ON
ENGAGING.
HALF NUTS CAN
BE LEFT TO RUN
SAFELY INTO RELIEF
ON LEAD SCREW.
RELEASE CATCH
TO DISENGAGE
AND RETURN
TABLE.
FIG.3
