GEMO
TECHNICAL SPECIFICATIONS
•
Programming : Free of charge Ladder Logic Editor with GUI running on PC, “GEMO LADDER
EDITOR”; programming, simulation, download. You can download from
www.gemo.com.tr free of charge.
•
Display : 2x16 character LCD, with back-light
•
Inputs (24VDC) : I1..IC; (OFF:0..2VDC; ON:10..32VDC), max.32VDC, isolated with opto-coupler
(max. isolation voltage: 40VAC)
•
Inputs (230VAC) : I1..IC; (OFF:0..30VAC; ON:150..240VAC), 50/60Hz, isolated with opto-coupler
•
Outputs : Q1 .. Q8; 8xRelays, max. 250VAC, 2A, Resistive load
•
Communication Port : RS-232. Used to transfer program from PC. Tx; transmit, Rx; receive, Gnd; signal
return (ground)
•
“Ladder” Lines : 120 lines
•
“Ladder” Columns : 5 contact columns & 1 coil column
•
“Ladder” Components: 12 x digital input; I1..I12
8 x digital output; Q1..Q8
32 x auxiliary relay; A1..A32
16 x timers; T1..T16,
16 x counters; C1..C16; cnt = count, pulse
•
Timer Resolution :
sc;1/100 second, Sc;1/10 second, mn;1 second, hr; 1 minute
•
Timer Accuracy :
± 0.1% or 1 digit (whichever larger); of Preset value
•
Ladder Scan Time
:
less then 10ms
•
Input Latency : (24VDC) minimum 8ms (ON->OFF, OFF->ON)
(230VAC) minimum 20ms (ON->OFF, OFF->ON)
•
Torque for screwing : max. 0.5 N.m
•
Supply Voltage : 18..32VDC (isolated; max. isolation voltage 40VAC), or
100..240VAC, 50-60Hz
•
Power Consumption : less then 6W
•
Operating Temperature: 0
o
C .. 50
o
C
•
Storage Temperature : -10
o
C..60
o
C
•
Humidity : %80 up to 30
o
C, then linearly decreases to 50% at 50
o
C (non-condensing)
•
Operating Altitude : less then 2000 m
•
Protection Class : IP20; according to EN 60529
•
EMC : TS EN 61000-6-2:2019, IEC 61000-6-2:2016 RLV
TS EN 61000-6-4:2020, IEC 61000-6-4:2018 RLV
•
Safety : TS EN 61010-1:2012 + A1:2019 + A1/AC:2019
•
Dimensions : 105x91x60mm (excluding connectors)
•
Weight : less then 0.6 kg

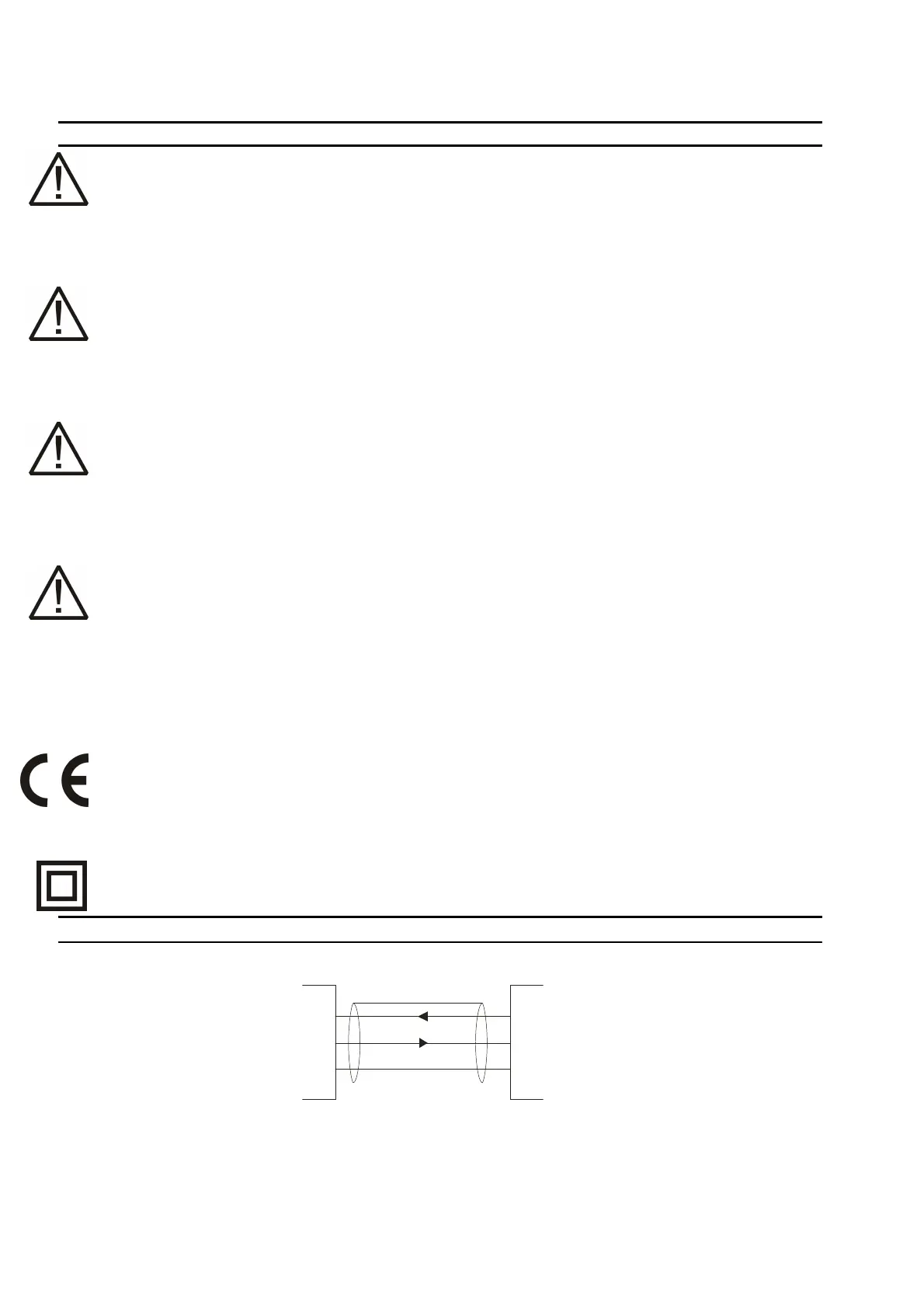

AR1-A – PC COMMUNICATION CABLE (RS-232)
Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti. http://www.gemo.com.tr
Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye e-mail: info@gemo.com.tr
Tel: +90-312-3503900, Fax: +90-312-3511117
3
Rx
3-wire shielded
Rx
Gnd
9 pin D-type
Tx
3
2
5
Tx
Gnd
