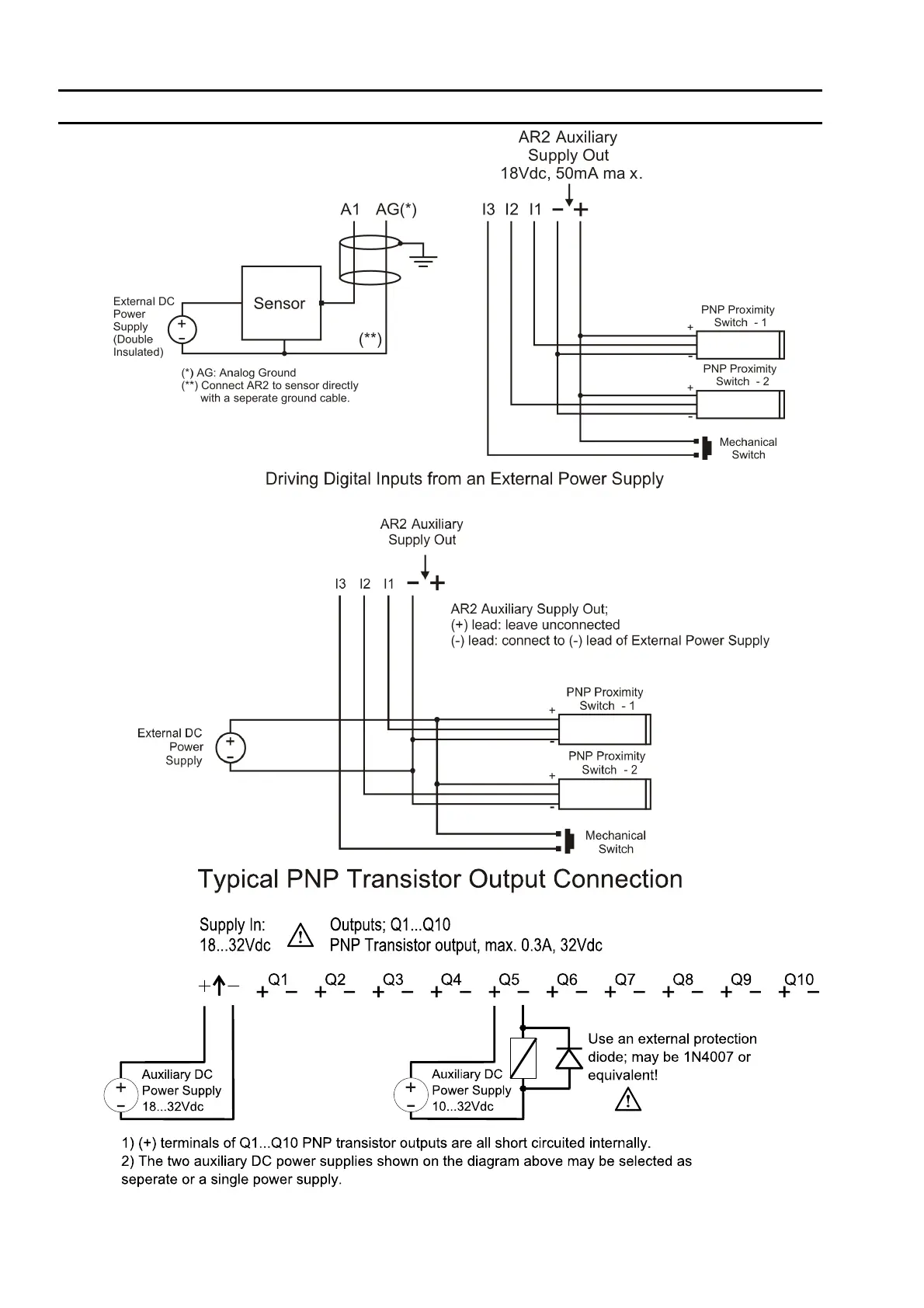

Gemo AR2 - Sample Connection Diagrams; Driving Digital Inputs from External Power Supply; Typical PNP Transistor Output Connection

GEMO
SAMPLE CONNECTION DIAGRAM
Gürbüzoğlu Elektronik San. ve Tic. Ltd. Şti. http://www.gemo.com.tr
Çamlıtepe Cad. No:297 / 3-4 Siteler, Ankara, Türkiye e-mail: info@gemo.com.tr
Tel: +90-312-3503900, Fax: +90-312-3511117
4
