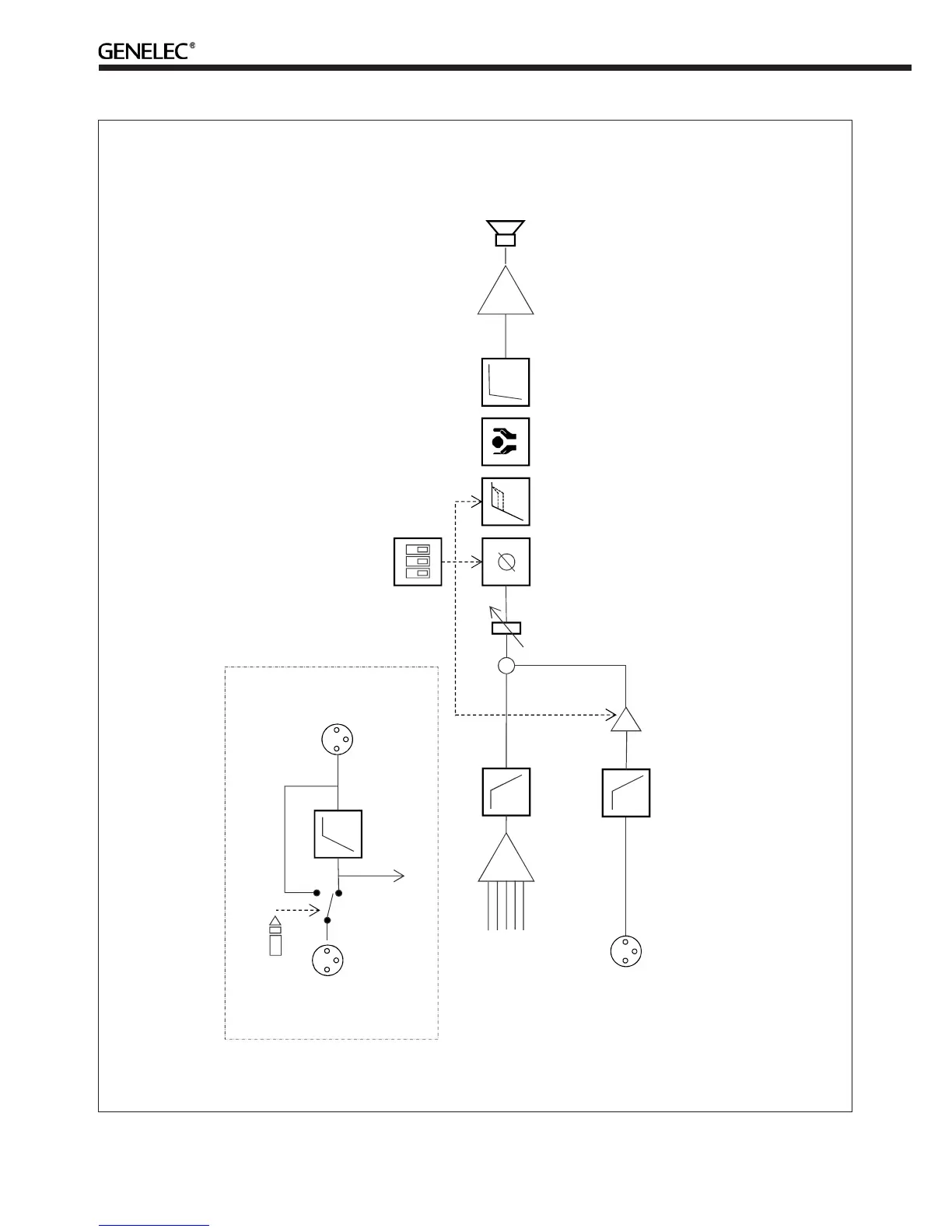

Kuva 9. 7050C:n signaalitien lohkokaavio.
Crossover
lowpass
85 Hz
Roll-Off
-4 dB -8 dB
Phase
alignment
0°
90°
180° 270°
Infrasound
protection
Overload
protection
features
Sum
LFE
+10 dB
+
Power
amplifier
Subwoofer in
LFE in
Highpass
85 Hz
Subwoofer in
Bypass
Analogue
in 1-5
Analogue
out 1-5
For each analogue input
Subwoofer
driver and
enclosure
Crossover
lowpass
120 Hz
Sensitivity
-6…+12 dB
DIP-switches
