Genelec 7050C User Manual

is needed to nd the optimum placement.
The placement will affect the phase
dierence between the main loudspeakers
and the subwoofer and the bass roll-o
rate.
First place the subwoofer slightly oset
from the center of the front wall. The
recommended distance to the wall is
less than 60 cm / 24" measured from the
subwoofer's driver. This position gives
increased acoustic loading (and SPL) due
to the proximity of the front wall and oor.
Cancellations from the front wall and oor
are also avoided. Front wall cancellation for
the 85 Hz high pass ltered main speakers
can be eliminated by placing them at least
110 cm / 43" away from the front wall (see
Figure 3).
If the frequency balance does not seem
right, try moving the subwoofer slightly
to the left or right so that dierent room
modes are excited at different levels.
Positioning the subwoofer close to a
corner will boost the bass level at lower
frequencies and may cause asymmetrical
spatial imaging.
Minimum Clearances To Walls
Or Other Objects
Do not cover the driver side of the subwoofer
or place the subwoofer so that there is less
than 10 cm (4") of free space in front of the
grille.
Make sure that the space underneath the
subwoofer is clear from obstructions. Thick
carpets may block the ventilation clearance
needed for cooling the electronics.
The reflex port side (opposite of the
connector panel side) should always have a
clearance of at least 7.5 centimeters (3") to
any objects to ensure proper functioning of
the reex port.
Flush Mounting The
Subwoofer
If the subwoofer is flush mounted into a
wall or a cabinet, it is important to ensure
MAINS INPUT
50/60Hz 150 W
100-240 V~
7050C ACTIVE SUBWOOFER
SERIAL
NUMBER
OUT
IN
BYPASS
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10 dB
-6
0
+3
+12
-3
LFE IN
+6
-4
INPUT dBu
PRODUCING
100 dB SPL (1 m)
ISS SENSITVITY LOW
-90°
-180°
ELECTRIC SHOCK HAZARD. DO NOTOPEN. DO NOT SUBJECT TO WATER OR MOISTURE. NO USER
SERVICEABLE PART SINSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. USE EARTHED MAINS
CONNECTION ONLY.
LAITEON LIITETTÄVÄ
SUOJAKOSKETTIMILLA
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES
JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS
TILL JORDAT UTTAG.
RISQUE DE CHOC ÉLECTRIQUE. NE PASOUVRIR. NE PA S EXPOSER ÀL'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANTÀL'INTÉRIEUR REMPLAÇABLEPAR L'UTILISATEUR. ADRESSER TOUTE RÉPARATION À
UN PERSONNEL QUALIFIÉ. CET APPAREILDOIT ÊTRE RACCORDÉÀLA TERRE.
AVERTISSEMENT
WARNING
IN 1IN2 IN 3
IN 4IN5
OUT1 OUT2 OUT 3 OUT 4 OUT 5
THIS DEVICE COMPLIESWITH FCC PART 15 AND
CANADIAN ICES-003 RADIO FREQUENCY CLASS B
EMISSION REQUIREMENTS. REFER TO OPERATING
MANUAL FORFULL INFORMAT ION.
MADE IN FINLAND
www.genelec.com
SENSITIVITY
ADJUSTMENT
LFE IN CONNECTOR
OUTPUT
CONNECTORS
BASS ROLL-OFF,
SWITCHES
PHASE,
ISS AND LFE +10 dB
MAINS CONNECT
OR
MAINS SWITCH
INPUT
CONNECTORS
BYPASS SWITCH
CONNECTOR

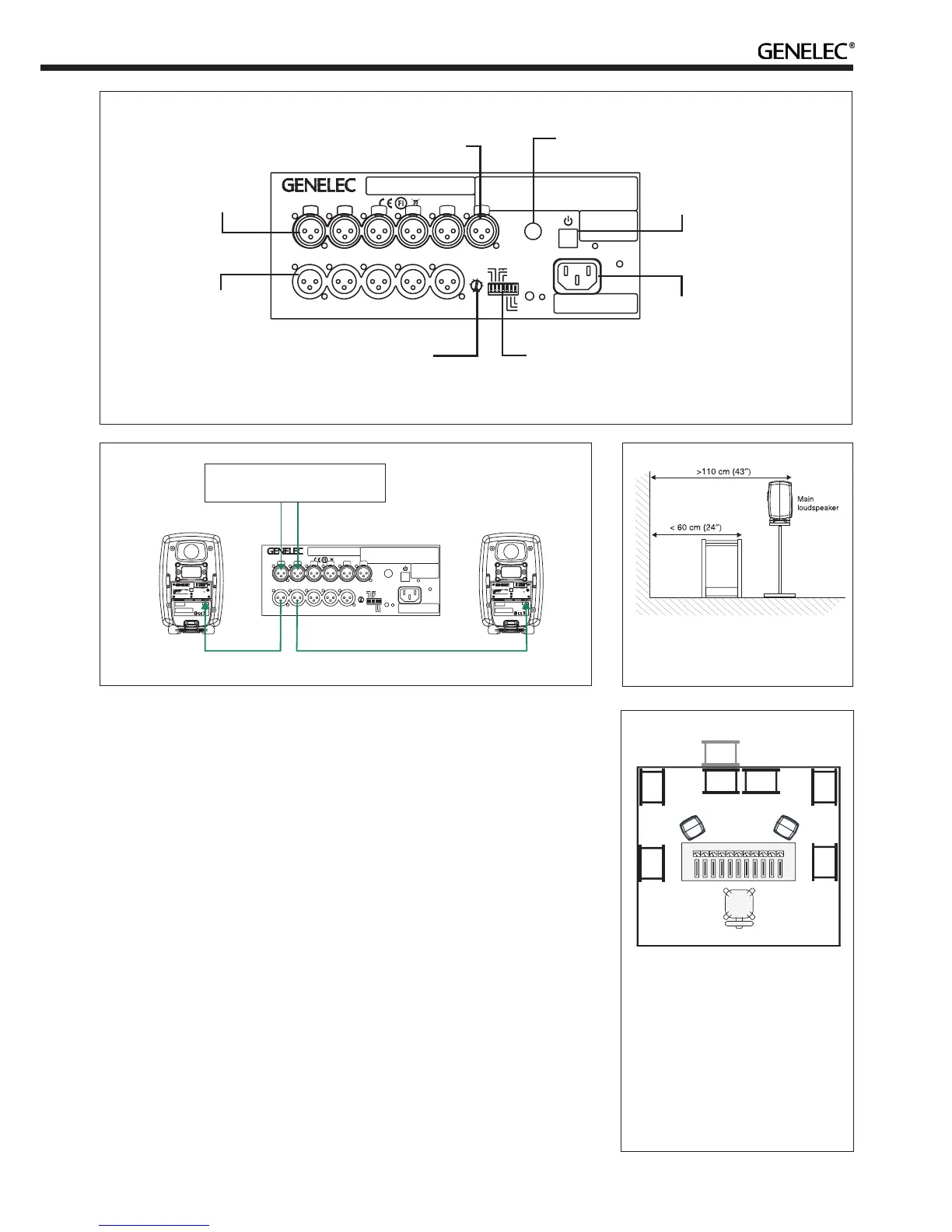

Figure 1. 7050C's amplier panel, connectors and controls.
Figure 3. Recommended distances to
the front wall
3
1
3
5
4
4
2
Figure 4. Examples of subwoofer posi-
tioning. 1 and 2 are good starting posi-
tions for a single subwoofer and also
work well with two linked subwoofers.
Position 3 causes a signicant bass
boost and may cause asymmetric spa-
tial imaging if only one subwoofer is
used. Position 4 also works best with
two subwoofers. Flush mounting (pos.
5) generally works well.
MAINS INPUT
50/60Hz 150 W
100-240 V~
7050C ACTIVE SUBWOOFER
SERIAL
NUMBER
OUT
IN
BYPASS
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10dB
-6
0
+3
+12
-3
LFE IN
+6
-4
INPUT dBu
PRODUCING
100 dBSPL (1 m)
ISS SENSITVITYLOW
-90°
-180°
ELECTRIC SHOCKHAZARD. DONOTOPEN.DO NOTSUBJECT TO WATEROR MOISTURE.NO USER
SERVICEABLE PARTSINSIDE.REFER SERVICINGTO QUALIFIED PERSONNEL.USE EARTHED MAINS
CONNECTION ONLY.
LAITEON LIITETTÄVÄ
SUOJAKOSKETTIMILLA
VARUSTETTUUNPISTORASIAAN.
APPARATETMÅ TILKOPLES
JORDET STIKKONTAKT.
APPARATENSKALL ANSLUTAS
TILLJORDAT UTTAG.
RISQUE DECHOC ÉLECTRIQUE.NE PASOUVRIR.NE PASEXPOSER ÀL'EAU OUL'HUMIDITÉ. AUCUN
COMPOSANTÀL'INTÉRIEUR REMPLAÇABLEPAR L'UTILISATEUR.ADRESSER TOUTERÉPARATION À
UN PERSONNELQUALIFIÉ. CETAPPAREILDOIT ÊTRERACCORDÉÀLATERRE.
AVERTISSEMENT
WARNING
IN 1IN2 IN 3
IN 4IN5
OUT1 OUT2 OUT 3 OUT4 OUT 5
THIS DEVICECOMPLIESWITHFCC PART15 AND
CANADIAN ICES-003RADIO FREQUENCYCLASS B
EMISSION REQUIREMENTS.REFER TOOPERATING
MANUALFORFULLINFORMAT ION.
MADE INFINLAND
www.genelec.com
292-8030W
WARNING:ELECTRICSHOCKHAZARD.DO NOTOPEN.DONOT
SUBJECTTOWATERORMOISTURE. NOUSERSERVICEABLE
PARTSINSIDE.REFERSERVICINGTOQUALIFIEDPERSONNEL.
USEEARTHEDMAINSCONNECTIONONLY.
AVERTISSEMENT:RISQUEDECHOCÉLECTRIQUE.NEPAS
OUVRIR.NEPASEXPOSERÀL'EAUOU L'HUMIDITÉ.AUCUN
COMPOSANTÀL'INTÉRIEURREMPLAÇABLEPARL'UTILISATEUR.
ADRESSERTOUTERÉPARATIONÀUNPERSONNELQUALIFIÉ.
CETAPPAREILDOITÊTRE RACCORDÉÀLATERRE.
LAITEONLIITETTÄVÄSUOJAKOSKETTIMILLAVARUSTETTUUN
PISTORASIAAN.
APPARATETMÅTILKOPLESJORDETSTIKKONTAKT.
APPARATENSKALLANSLUTASTILLJORDATUTTAG.
DESKTOP160Hz -4dB
BASS ROLL-OFF-4dB
TREBLETILT -2dB
BASSTILT
-2dB -4dB
ISS
ON
OFF
-2
-4
-6
0
3k
BASS
TILT
1k
BASS
ROLL-OFF
DESKTOP
ALLOFF
TREBLE
TILT
Frequency(Hz)
16020 20k
-3
-6
+2
0
+4
+6
INPUTdBu
PRODUCING
100dBSPL(1m)
MADEIN FINLAND
SERIALNUMBER
Thisdevice complieswithFCCPart15 andCanadian
ICES-003radiofrequencyClassBemissionrequirements.
Refertooperatingmanualforfull information.
292-8030CT
ANALOG
IN
+
-
GND
2
3
1
IN
MAINSINPUT
50/60Hz60W
100-240V~
8030C BI-AMPLIFIED
MONITORINGSYSTEM
www.genelec.com
292-8030W
WARNING:ELECTRICSHOCKHAZARD.DONOTOPEN.DONOT
SUBJECTTOWATERORMOISTURE.NOUSERSERVICEABLE
PARTSINSIDE.REFERSERVICINGTO QUALIFIEDPERSONNEL.
USEEARTHEDMAINSCONNECTIONONLY.
AVERTISSEMENT:RISQUEDECHOCÉLECTRIQUE.NEPAS
OUVRIR.NEPAS EXPOSERÀL'EAUOUL'HUMIDITÉ.AUCUN
COMPOSANTÀL'INTÉRIEURREMPLAÇABLEPARL'UTILISATEUR.
ADRESSERTOUTERÉPARATIONÀUNPERSONNELQUALIFIÉ.
CETAPPAREILDOITÊTRERACCORDÉÀLATERRE.
LAITEONLIITETTÄVÄSUOJAKOSKETTIMILLAVARUSTETTUUN
PISTORASIAAN.
APPARATETMÅTILKOPLESJORDETSTIKKONTAKT.
APPARATENSKALLANSLUTASTILL JORDATUTTAG.
DESKTOP160Hz -4dB
BASS ROLL-OFF-4dB
TREBLETILT-2dB
BASSTILT
-2dB -4dB
ISS
ON
OFF
-2
-4
-6
0
3k
BASS
TILT
1k
BASS
ROLL-OFF
DESKTOP
ALLOFF
TREBLE
TILT
Frequency(Hz)
16020 20k
-3
-6
+2
0
+4
+6
INPUTdBu
PRODUCING
100dBSPL(1m)
MADEIN FINLAND
SERIALNUMBER
Thisdevice complieswithFCCPart15 andCanadian
ICES-003radiofrequencyClassBemissionrequirements.
Refertooperatingmanualforfullinformation.
292-8030CT
ANALOG
IN
+
-
GND
2
3
1
IN
MAINSINPUT
50/60Hz60W
100-240V~
8030C BI-AMPLIFIED
MONITORINGSYSTEM
www.genelec.com
LINE LEVEL SIGNALSOURCE
Figure 2. Audio cable routing example with a two channel source shown.
