9320 Reference Controller Operating Manual 50 (52)

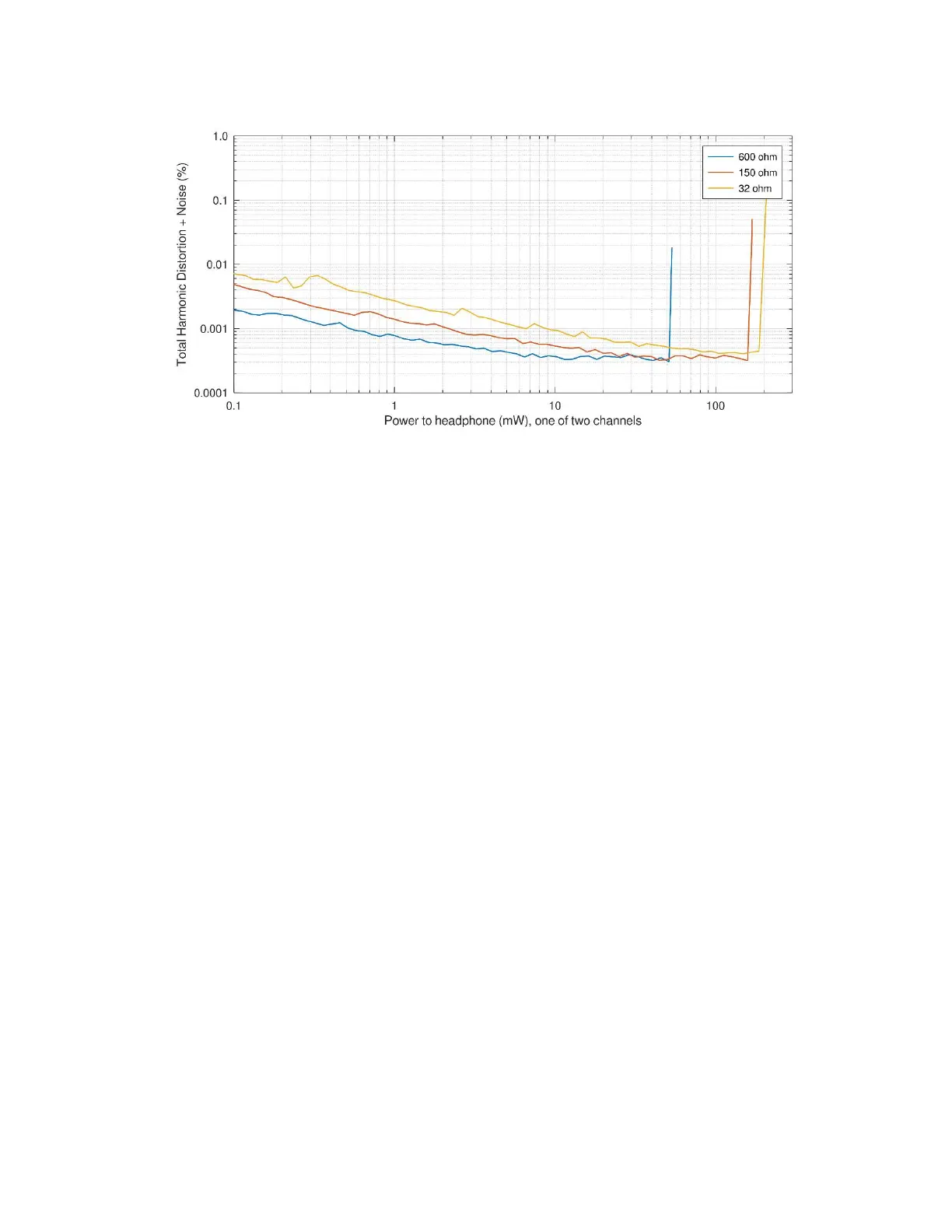

Fig. 39. Typical total harmonic distortion + noise performance of the headphone output at various

headphone imedances.
